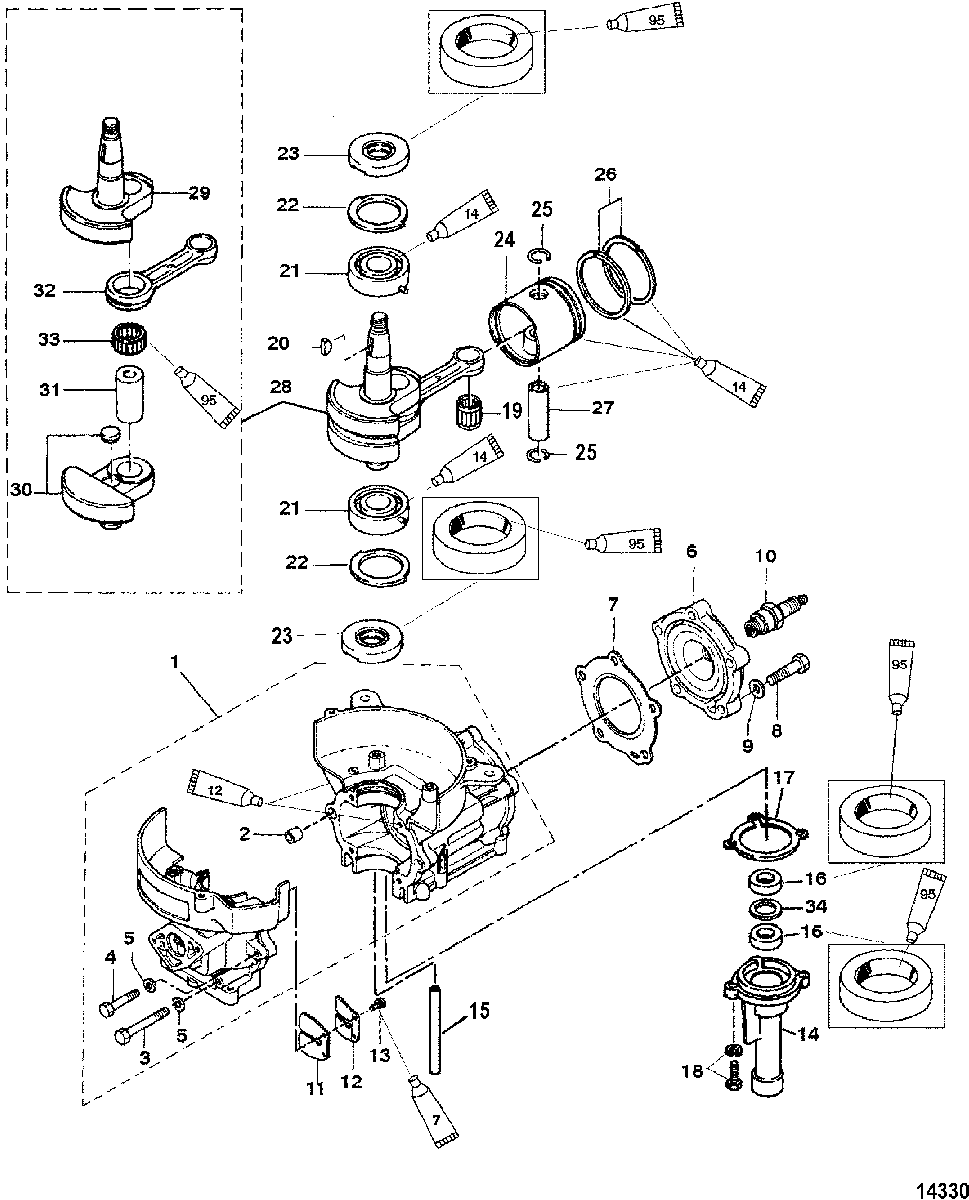

Cylinder Block/Crankshaft/Piston для Mariner - 5 (2-STROKE) 0P401000 & Up
-
№АртикулНазвание
-
1878-815013A5 CYLINDER BLOCKCYLINDER BLOCK
-
217-16119 PIN, DowelPIN, Dowel
-
310-16695 BOLTBOLT
-
410-815063 SCREWSCREW
-
513-16818 LOCKWASHERLOCKWASHER
-
6979-96301 CYLINDER HEADCYLINDER HEAD
-
727-812939015 GASKETGASKET
-
810-16126 BOLTBOLT
-
912-4002217 WASHERWASHER
-
1033-17719547 SPARK PLUG, (NGK#BPR7HS-10)
With ResistanceSPARK PLUG, (NGK#BPR7HS-10)
With Resistance -
1033-8M0114744 SPARK PLUG, (NGK#BP7HS-10)
Without ResistanceSPARK PLUG, (NGK#BP7HS-10)
Without Resistance -
1134-16706 REED VALVEREED VALVE
-
1234-16707 STOP
4 HorsepowerSTOP
4 Horsepower -
1234-17666 STOP
5 HorsepowerSTOP
5 Horsepower -
1310-16820 SCREWSCREW
-
148150162 HOUSINGHOUSING
-
1532-823976 HOSE, Tell-TaleHOSE, Tell-Tale
-
1626-8M0101649 SEAL, OilSEAL, Oil
-
1727-16704 GASKETGASKET
-
1810-167051 BOLTBOLT
-
1931-16052 BEARING, RollerBEARING, Roller
-
2028-16053 KEYKEY
-
2130-16049 BEARING, BallBEARING, Ball
-
228537122 THRUST PLATETHRUST PLATE
-
2326-16051 SEAL, OilSEAL, Oil
-
-779-8M0103755 PISTON ASSEMBLY
StandardPISTON ASSEMBLY
Standard -
-779-8M0103756 PISTON ASSEMBLY
.5MM OversizePISTON ASSEMBLY
.5MM Oversize -
24779-8M0103755 PISTON
Standard-Bare PistonPISTON
Standard-Bare Piston -
24779-8M0103756 PISTON
.5MM Oversize-Bare PistonPISTON
.5MM Oversize-Bare Piston -
2553-16057 CLIPCLIP
-
2639-8M0080357 RING, Piston
StandardRING, Piston
Standard -
2639-8M0080356 RING, Piston
.5MM OversizeRING, Piston
.5MM Oversize -
2741-898101918 PIN, PistonPIN, Piston
-
28474-879147T15 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
29NSS NOT SOLD SEPARATE, CrankshaftNOT SOLD SEPARATE, Crankshaft
-
30NSS NOT SOLD SEPARATE, CrankshaftNOT SOLD SEPARATE, Crankshaft
-
31813046002 PIN, CrankPIN, Crank
-
32629-813047 CONNECTING RODCONNECTING ROD
-
3331-813048 BEARINGBEARING
-
3423-815018 SPACERSPACER
-
-16115A03 GASKET SET, PowerheadGASKET SET, Powerhead
-
-815040T05 POWERHEAD ASSEMBLY
4 HorsepowerPOWERHEAD ASSEMBLY
4 Horsepower -
-815042T04 POWERHEAD ASSEMBLY
5 HorsepowerPOWERHEAD ASSEMBLY
5 Horsepower
