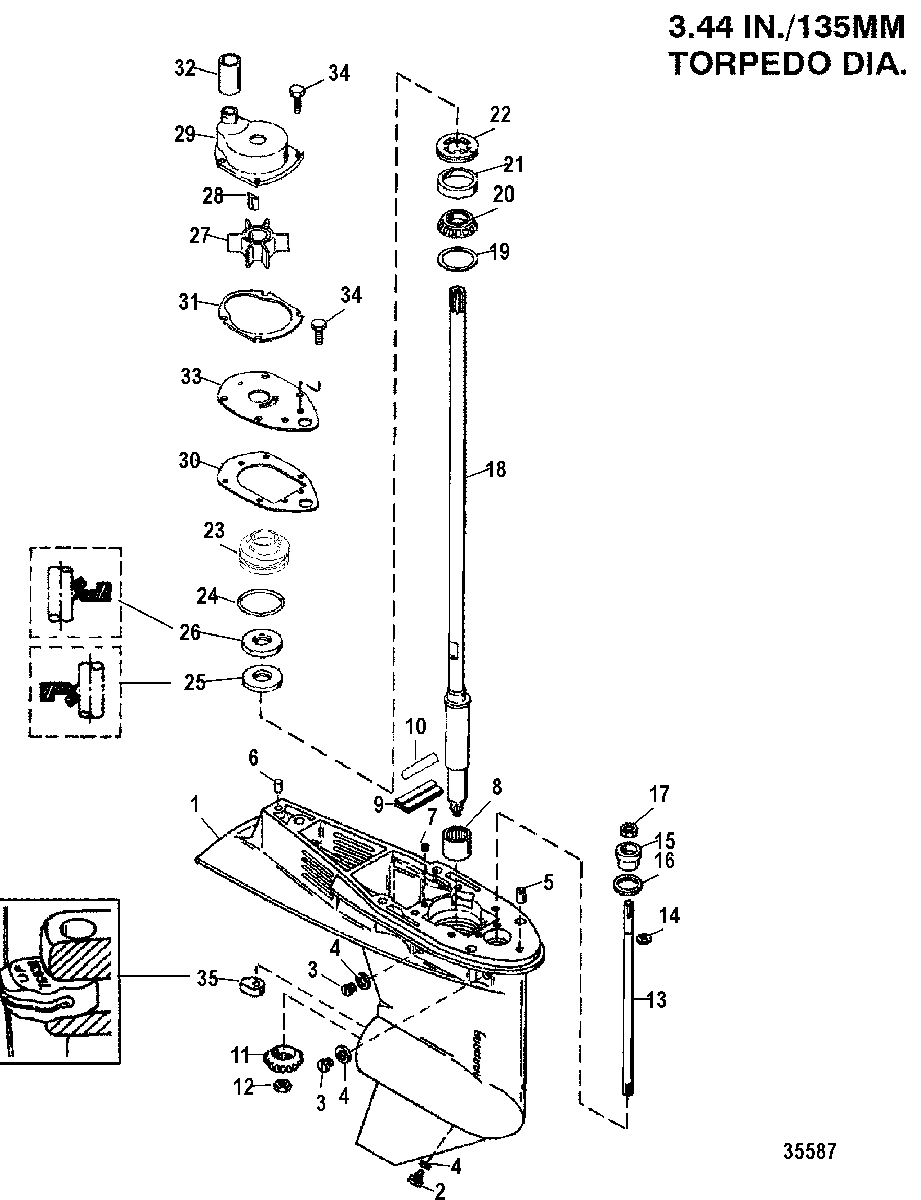

Gear Housing, Driveshaft - 1.64:1 Gear Ratio для Mariner - 45 JET 9973100 THRU 0P016999
-
№АртикулНазвание
-
-1671-9760T23 GEAR HOUSING ASSEMBLY
(BLACK) SHORTGEAR HOUSING ASSEMBLY
(BLACK) SHORT -
-1671-9760A24 GEAR HOUSING ASSEMBLY
(GRAY) SHORTGEAR HOUSING ASSEMBLY
(GRAY) SHORT -
-1671-9760T25 GEAR HOUSING ASSEMBLY
(BLACK) LONGGEAR HOUSING ASSEMBLY
(BLACK) LONG -
-1671-9760T25 GEAR HOUSING ASSEMBLY
(GRAY) LONGGEAR HOUSING ASSEMBLY
(GRAY) LONG -
-1671-9760T28 GEAR HOUSING ASSEMBLY
(BLACK) X-LONGGEAR HOUSING ASSEMBLY
(BLACK) X-LONG -
-1671-9760T29 GEAR HOUSING ASSEMBLY
(GRAY) X-LONGGEAR HOUSING ASSEMBLY
(GRAY) X-LONG -
11671-9760T42 GEAR HOUSING ASSEMBLY
(BLACK)GEAR HOUSING ASSEMBLY
(BLACK) -
11671-9760T42 GEAR HOUSING ASSEMBLY
(GRAY)GEAR HOUSING ASSEMBLY
(GRAY) -
222-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
310-79953Q04 SCREW KIT, (.375-16 x .250)SCREW KIT, (.375-16 x .250)
-
412-191833 WASHER, FiberWASHER, Fiber
-
517-8M0084244 PIN, Dowel - With Hole (.375 x .625)PIN, Dowel - With Hole (.375 x .625)
-
617-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
722-56800 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
831-812768 BEARING, RollerBEARING, Roller
-
9818226A1 SEAL/PLATE KITSEAL/PLATE KIT
-
10NSS NOT SOLD SEPARATE, Filler PlateNOT SOLD SEPARATE, Filler Plate
-
1143-813694T GEAR, Pinion (14 TEETH)GEAR, Pinion (14 TEETH)
-
1211-55910 NUT, (.437-20)NUT, (.437-20)
-
13812732A1 SHIFT SHAFT ASSEMBLY
(SHORT/LONG)SHIFT SHAFT ASSEMBLY
(SHORT/LONG) -
13815420 SHIFT SHAFT
(X-LONG)SHIFT SHAFT
(X-LONG) -
1453-29641 E RINGE RING
-
1523-813696A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
1625-45258 O-RING, (.987 x .103)O-RING, (.987 x .103)
-
1726-8164641 SEAL, OilSEAL, Oil
-
1845-815422 DRIVESHAFT
(SHORT) 60 ELECTRICDRIVESHAFT
(SHORT) 60 ELECTRIC -
1845-812731 DRIVESHAFT
(LONG) 60 ELECTRICDRIVESHAFT
(LONG) 60 ELECTRIC -
1845-815421 DRIVESHAFT
(X-LONG) 60 ELECTRICDRIVESHAFT
(X-LONG) 60 ELECTRIC -
1845-812731 DRIVESHAFT
(55 MANUAL)DRIVESHAFT
(55 MANUAL) -
1915-8M0063262 SHIM SETSHIM SET
-
2031-77420A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
21NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
2211-8128201 NUTNUT
-
2346-812966A7 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
2425-30224 O-RING, (1.859 x .139)O-RING, (1.859 x .139)
-
2526-814669 SEAL, OilSEAL, Oil
-
2626-814670 SEAL, OilSEAL, Oil
-
2747-19453T IMPELLERIMPELLER
-
2828-8M0032831 KEYKEY
-
2946-812966A12 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
3027-8M4502052 GASKET
(LOWER)GASKET
(LOWER) -
3027-8M4502052 GASKET
(EXPORT - HIGH SULFUR LEADED FUELS/ WARM WATER)GASKET
(EXPORT - HIGH SULFUR LEADED FUELS/ WARM WATER) -
3127-822189 GASKET, Upper Water PumpGASKET, Upper Water Pump
-
3243023 SEAL
(SHORT/LONG)SEAL
(SHORT/LONG) -
3319700A2 FACE PLATEFACE PLATE
-
3410-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
35760394 CAM, Shift ControlCAM, Shift Control
-
-27-812867A97 GASKET SETGASKET SET
-
-46-812966A12 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-26-814669A2 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
