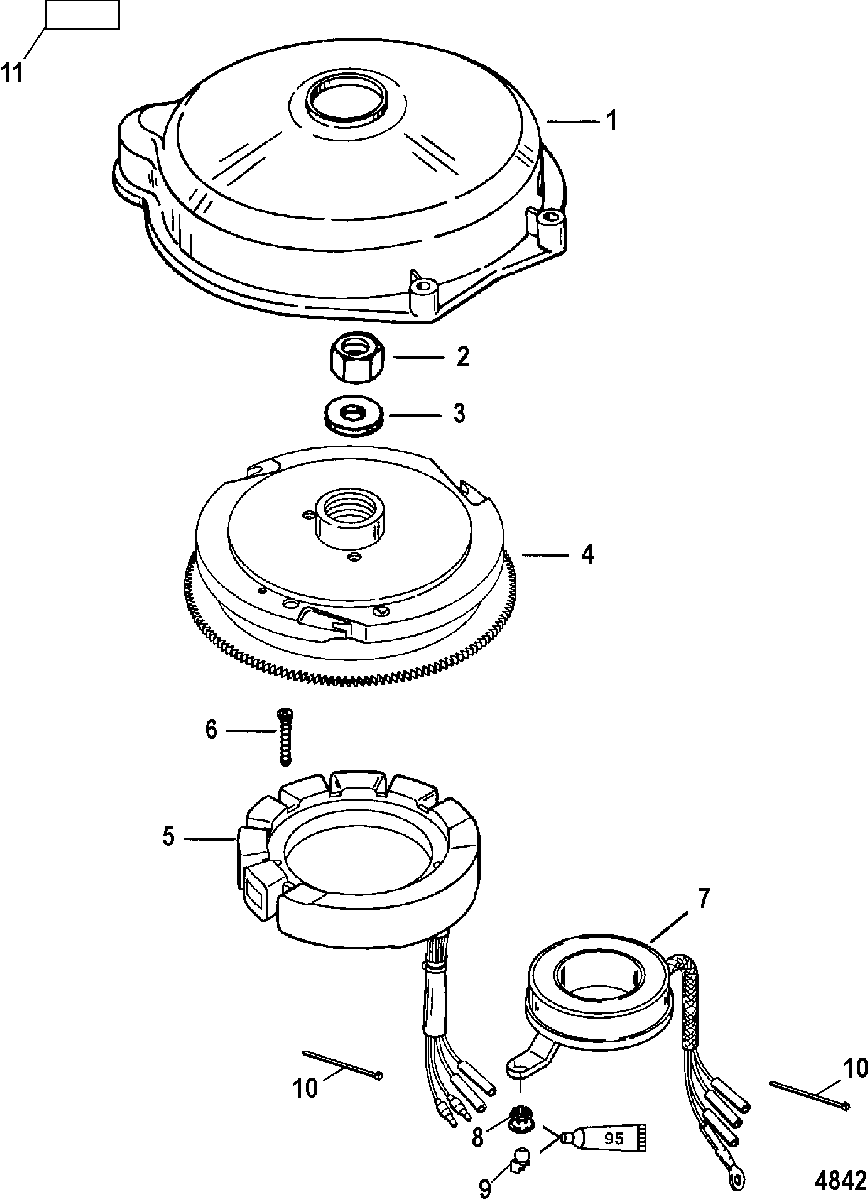

Flywheel and Stator, Electric для Mariner - 45 JET 0G760300 THRU 0T129554

  • №
    Артикул
    Название
  • 1
    812777T1 COVER ASSEMBLY
    COVER ASSEMBLY
  • 2
    11-42979 NUT, (M16)
    NUT, (M16)
  • 3
    12-33001 WASHER, (.641 x 1.250 x .190)
    WASHER, (.641 x 1.250 x .190)
  • 4
    261-859234T24 FLYWHEEL
    FLYWHEEL
  • 5
    398-832075A21 IGNITION STATOR KIT
    IGNITION STATOR KIT
  • 6
    10-4013930 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
  • 7
    854512T TRIGGER
    TRIGGER
  • 8
    93421 SWIVEL BALL
    SWIVEL BALL
  • 9
    93254 SWIVEL BASE
    SWIVEL BASE
  • 10
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 11
    37-856985A7 DECAL, EPA Label Information
    (1999)
    DECAL, EPA Label Information
    (1999)
  • 11
    37-804665A00 DECAL, EPA Label Information
    (2000)
    DECAL, EPA Label Information
    (2000)
  • 11
    37-804665A01 DECAL, EPA Label Information
    (2001)
    DECAL, EPA Label Information
    (2001)
  • 11
    37-804665A02 DECAL, EPA Label Information
    (2002)
    DECAL, EPA Label Information
    (2002)
  • 11
    37-804665A03 DECAL, EPA Label Information
    (2003)
    DECAL, EPA Label Information
    (2003)
  • 11
    37-804665A04 DECAL, EPA Label Information
    (2004)
    DECAL, EPA Label Information
    (2004)
