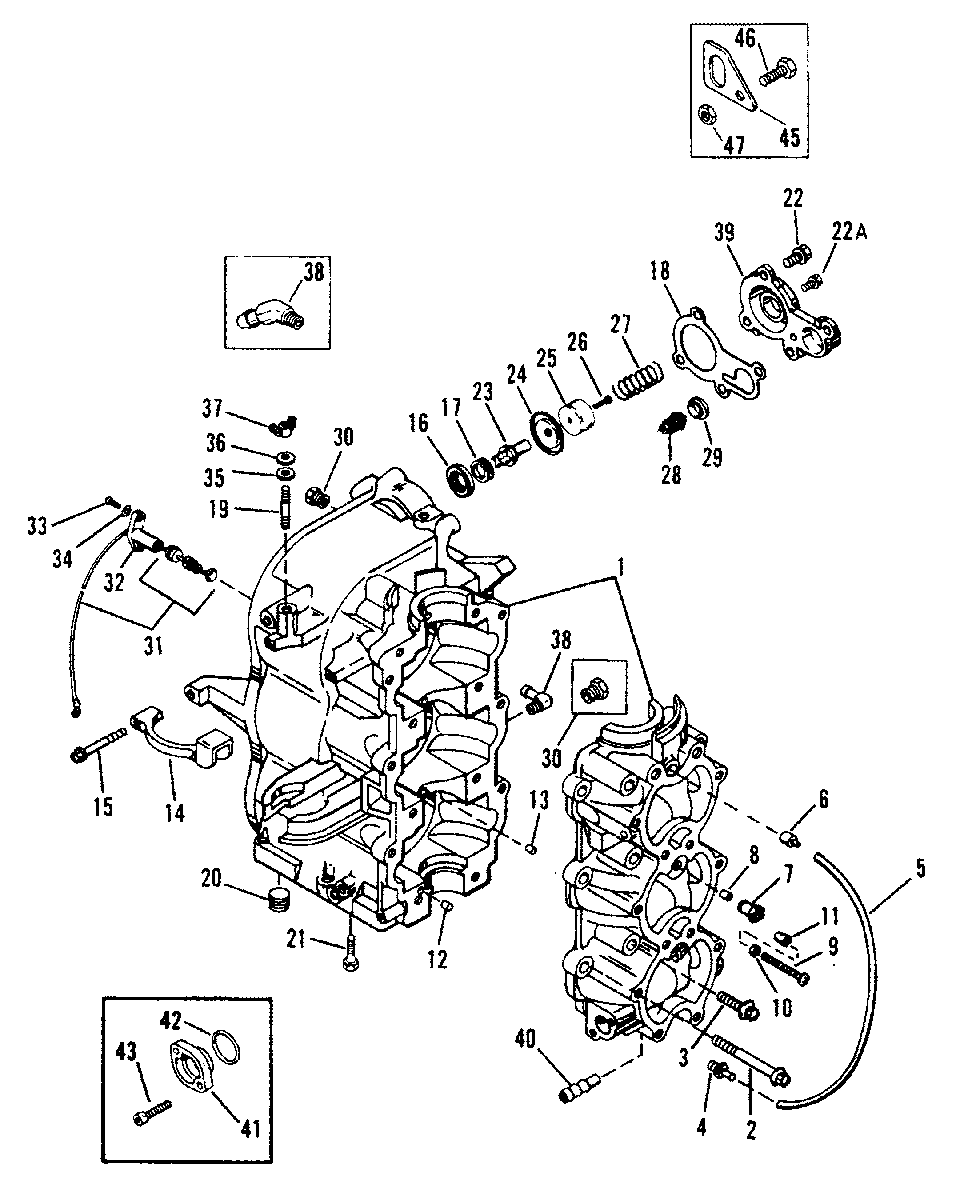

CYLINDER BLOCK AND CRANKCASE для Mariner - 45 JET 0D000750 THRU 0G290584

  • №
    Артикул
    Название
  • 1
    883-9755A9 CYLINDER BLOCK (50)
    (S/N 0D181999 & BELOW)
    CYLINDER BLOCK (50)
    (S/N 0D181999 & BELOW)
  • 1
    883-9755T14 CYLINDER BLOCK (55)
    (S/N 0D181999 & BELOW)
    CYLINDER BLOCK (55)
    (S/N 0D181999 & BELOW)
  • 1
    883-9755T10 CYLINDER BLOCK (60)
    (S/N 0D181999 & BELOW)
    CYLINDER BLOCK (60)
    (S/N 0D181999 & BELOW)
  • 1
    883-9755T15 CYLINDER BLOCK (ALL)
    (S/N 0D182000 & ABOVE)
    CYLINDER BLOCK (ALL)
    (S/N 0D182000 & ABOVE)
  • 2
    10-81742780 SCREW
    SCREW
  • 3
    10-81742730 SCREW
    SCREW
  • 4
    21-426585 CHECK VALVE
    CHECK VALVE
  • 5
    32-892024122 HOSE (16")
    HOSE (16")
  • 6
    21-426233 CHECK VALVE (PRESS-IN)
    CHECK VALVE (PRESS-IN)
  • 7
    812888A1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 8
    21-42657A3 CHECK VALVE
    CHECK VALVE
  • 9
    10-814776 ADJUSTING SCREW
    ADJUSTING SCREW
  • 10
    11-400212 JAM NUT
    JAM NUT
  • 11
    42942 CAP
    CAP
  • 12
    17-43044 DOWEL PIN (LOCATING)
    DOWEL PIN (LOCATING)
  • 13
    17-8M0084653 DOWEL PIN (BEARING RACE)
    DOWEL PIN (BEARING RACE)
  • 14
    18597 COVER
    COVER
  • 15
    10-81742750 SCREW
    SCREW
  • 16
    65848 CARRIER
    (50/60 - DESIGN I)
    CARRIER
    (50/60 - DESIGN I)
  • 17
    25-64872 GROMMET
    (50/60 - DESIGN I)
    GROMMET
    (50/60 - DESIGN I)
  • 18
    27-8128671 GASKET
    (USE W/DESIGN I REF'S # 16 & 17)
    GASKET
    (USE W/DESIGN I REF'S # 16 & 17)
  • 18
    27-8128672 GASKET
    (DESIGN II - W/O REF'S #16 & 17)
    GASKET
    (DESIGN II - W/O REF'S #16 & 17)
  • 19
    16-8161949 STUD
    STUD
  • 20
    22-185981 PIPE PLUG
    PIPE PLUG
  • 21
    10-817430110 SCREW
    SCREW
  • 22
    10-81742720 SCREW (20MM - QTY. OF 3 ON 55)
    (USE W/DESIGN I REF'S # 16 & 17)
    SCREW (20MM - QTY. OF 3 ON 55)
    (USE W/DESIGN I REF'S # 16 & 17)
  • 22A
    10-12896 SCREW (55)
    (USE W/DESIGN I REF'S # 16 & 17)
    SCREW (55)
    (USE W/DESIGN I REF'S # 16 & 17)
  • 22
    10-40011149 SCREW (25MM - QTY. OF 3 ON 55)
    (DESIGN II - W/O REF'S # 16 & 17)
    SCREW (25MM - QTY. OF 3 ON 55)
    (DESIGN II - W/O REF'S # 16 & 17)
  • 22A
    10-12896 SCREW (55)
    (DESIGN II - W/O REF'S # 16 & 17)
    SCREW (55)
    (DESIGN II - W/O REF'S # 16 & 17)
  • 23
    8128821 POPPET VALVE
    50/60
    POPPET VALVE
    50/60
  • 24
    812887 DIAPHRAGM
    50/60 (USE W/DESIGN I REF'S # 16 & 17)
    DIAPHRAGM
    50/60 (USE W/DESIGN I REF'S # 16 & 17)
  • 24
    812887002 DIAPHRAGM
    (50/60) (DESIGN II - W/O REF'S #16 & 17)
    DIAPHRAGM
    (50/60) (DESIGN II - W/O REF'S #16 & 17)
  • 25
    12-94182 WASHER
    (50/60)
    WASHER
    (50/60)
  • 26
    10-69570 SCREW
    (50/60)
    SCREW
    (50/60)
  • 27
    24-90392 SPRING
    (50/60)
    SPRING
    (50/60)
  • 27
    24-42996 SPRING (60 PONTOON)
    (50/60)
    SPRING (60 PONTOON)
    (50/60)
  • 28
    75692 THERMOSTAT (143)
    (50/60)
    THERMOSTAT (143)
    (50/60)
  • 28
    14586 THERMOSTAT (120)
    50/60
    THERMOSTAT (120)
    50/60
  • 29
    27-62386001 GASKET
    50/60
    GASKET
    50/60
  • 30
    22-328022 PIPE PLUG
    PIPE PLUG
  • 31
    787992 TEMPERATURE SENDER
    TEMPERATURE SENDER
  • 32
    889733 RETAINER
    RETAINER
  • 33
    10-878609 SCREW
    SCREW
  • 34
    12-56681 WASHER
    WASHER
  • 35
    12-49221 WASHER
    (50/60)
    WASHER
    (50/60)
  • 36
    12-69056 WASHER
    (50/60)
    WASHER
    (50/60)
  • 37
    11-816872 WING NUT
    (50/60)
    WING NUT
    (50/60)
  • 38
    22-996642 ELBOW
    (50/60)
    ELBOW
    (50/60)
  • 38
    22-782792 ELBOW
    (55)
    ELBOW
    (55)
  • 39
    19074 COVER
    (USE W/DESIGN I REF'S # 16 & 17)
    COVER
    (USE W/DESIGN I REF'S # 16 & 17)
  • 39
    8M0036859 COVER
    (DESIGN II - W/O REF'S #16 & 17)
    COVER
    (DESIGN II - W/O REF'S #16 & 17)
  • 40
    22-56759 FITTING
    (50/60)
    FITTING
    (50/60)
  • 41
    8129961 COVER
    (55)(S/N 0A000000-0D181999)
    COVER
    (55)(S/N 0A000000-0D181999)
  • 41
    8129962 COVER
    (55)(S/N 0D182000-0Z999999)
    COVER
    (55)(S/N 0D182000-0Z999999)
  • 42
    25-48462 O-RING
    (55)
    O-RING
    (55)
  • 43
    10-40011108 SCREW
    (55)
    SCREW
    (55)
  • 45
    821595 LIFTING EYE
    (55)
    LIFTING EYE
    (55)
  • 46
    10-821616 SCREW
    55 (45MM - USE W/DESIGN I REF'S # 16 & 17)
    SCREW
    55 (45MM - USE W/DESIGN I REF'S # 16 & 17)
  • 46
    10-821606 SCREW
    55 (55MM - DESIGN II - W/O REF'S #16 & 17 )
    SCREW
    55 (55MM - DESIGN II - W/O REF'S #16 & 17 )
  • 47
    11-401368 NUT
    (55)
    NUT
    (55)
  • -
    27-812867A97 ENGINE GASKET SET
    ENGINE GASKET SET
  • -
    811208T91 POWERHEAD ASSEMBLY COMPLETE (50)
    (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
    POWERHEAD ASSEMBLY COMPLETE (50)
    (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
  • -
    821744T92 POWERHEAD ASSEMBLY COMPLETE (55)
    (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
    POWERHEAD ASSEMBLY COMPLETE (55)
    (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
  • -
    811209T91 POWERHEAD ASSEMBLY COMPLETE (60)
    (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
    POWERHEAD ASSEMBLY COMPLETE (60)
    (S/N 0D181999 & BELOW) (POWERHEAD INCLUDES 0.008 REED)
  • -
    811209T93 POWERHEAD ASSEMBLY COMPLETE (ALL)
    (S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)
    POWERHEAD ASSEMBLY COMPLETE (ALL)
    (S/N 0D182000 & UP) (POWERHEAD INCLUDES 0.008 REED)
