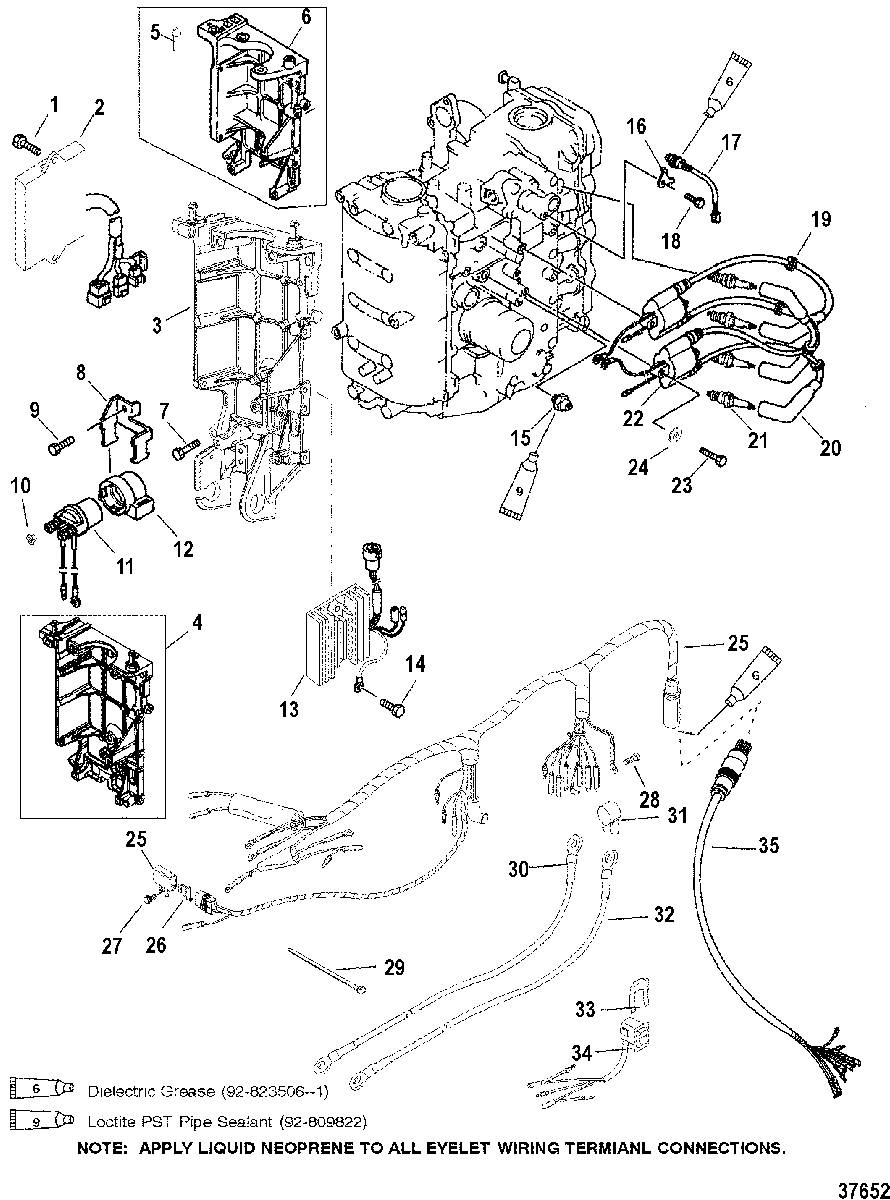

ELECTRICAL COMPONENTS для Mariner - 45 BODENSEE (4-STROKE) 9944807 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel
    SCREW, (M6 x 20) Stainless Steel
  • 2
    8250981 CONTROLLER ASSEMBLY, Electric
    (50)
    CONTROLLER ASSEMBLY, Electric
    (50)
  • 2
    8250983 CONTROLLER ASSEMBLY, Electric
    (40/45)
    CONTROLLER ASSEMBLY, Electric
    (40/45)
  • 3
    8347912 BRACKET
    SN# 0G472133 & Up
    BRACKET
    SN# 0G472133 & Up
  • 4
    8347913 BRACKET
    (BIGFOOT)
    BRACKET
    (BIGFOOT)
  • 5
    825092 STAY
    SN# 0G472132 & Below
    STAY
    SN# 0G472132 & Below
  • 6
    825094 BRACKET, Starter
    SN# 0G472132 & Below
    BRACKET, Starter
    SN# 0G472132 & Below
  • 7
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 8
    825074 SOLENOID PLATE
    SOLENOID PLATE
  • 9
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 10
    11-401386 NUT, (M6)
    NUT, (M6)
  • 11
    89-8M0098898 SOLENOID
    SOLENOID
  • 12
    8M0010250 BRACKET
    BRACKET
  • 13
    825076 REGULATOR, Voltage
    REGULATOR, Voltage
  • 14
    10-8248326 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 15
    87-8M0098207 PRESSURE SWITCH
    PRESSURE SWITCH
  • 16
    815004M PLATE
    PLATE
  • 17
    87-8280391 TEMPERATURE SWITCH
    TEMPERATURE SWITCH
  • 18
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    SCREW, (M6 x 13) Stainless Steel
  • 19
    25-82069M GROMMET
    GROMMET
  • 20
    84-825102A1 HIGH TENSION LEAD
    HIGH TENSION LEAD
  • 21
    33-827858Q SPARK PLUG, NGK-DPR6EA-9
    SPARK PLUG, NGK-DPR6EA-9
  • 22
    339-825101T COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 23
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 24
    12-4002316 WASHER
    (USE WHERE APPLICABLE)
    WASHER
    (USE WHERE APPLICABLE)
  • 25
    84-827350A3 HARNESS ASSEMBLY, Engine Wiring
    HARNESS ASSEMBLY, Engine Wiring
  • 26
    88-812619 FUSE, Yellow - 20 Ampere
    FUSE, Yellow - 20 Ampere
  • 27
    10-82104510 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 27
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    (BIGFOOT)
    SCREW, (M6 x 13) Stainless Steel
    (BIGFOOT)
  • 28
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    SCREW, (M6 x 13) Stainless Steel
  • 29
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 30
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 31
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 32
    84-88439A9 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 33
    8M0032848 RETAINER
    RETAINER
  • 34
    87-8M0042301 SWITCH
    SWITCH
  • 35
    84-86232A4 HARNESS ASSEMBLY, Auxiliary
    (HANDLE)
    HARNESS ASSEMBLY, Auxiliary
    (HANDLE)
  • -
    61-822775T97 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    61-822775A98 POWERHEAD ASSEMBLY
    (BIGFOOT)
    POWERHEAD ASSEMBLY
    (BIGFOOT)
