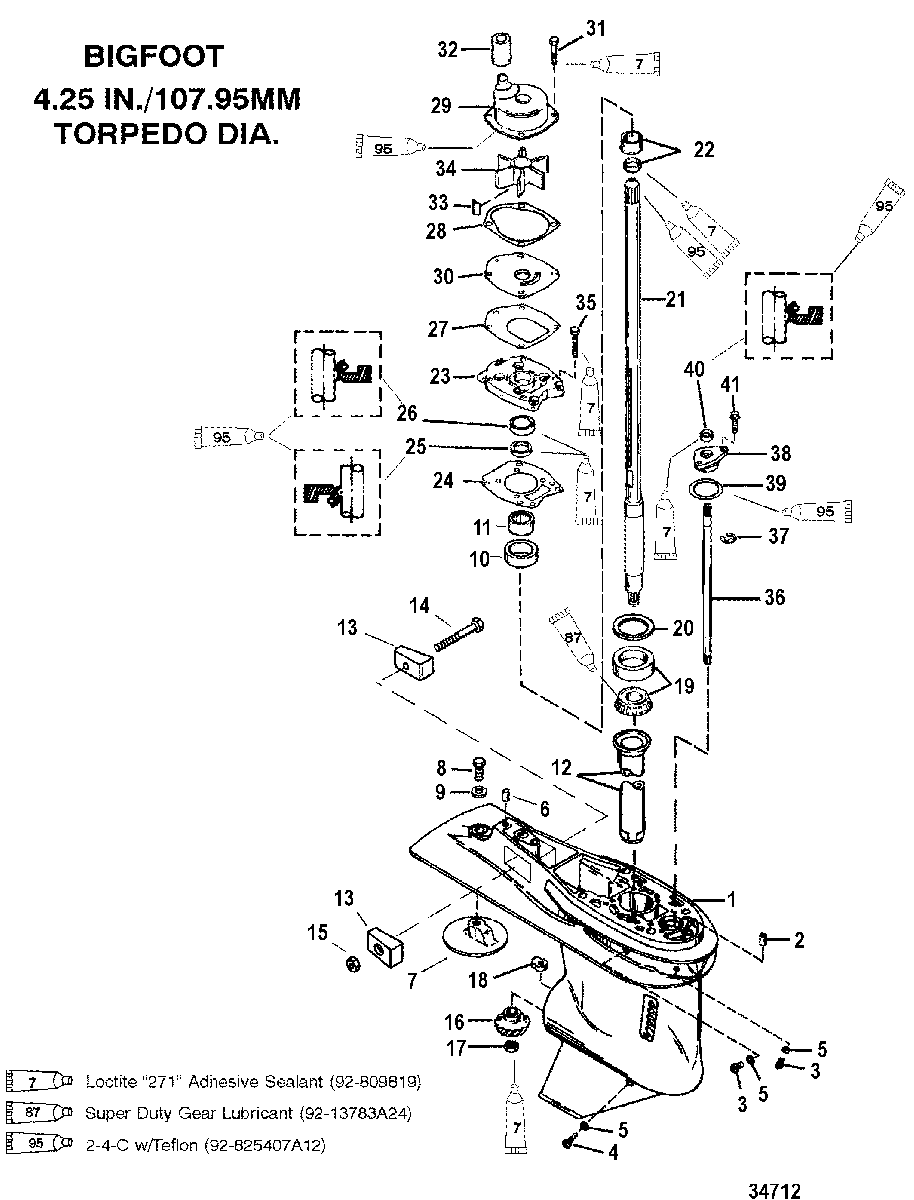

Gearhousing, Driveshaft - 2.31:1 Gear Ratio - Bigfoot для Mariner - 45 BODENSEE (4-STROKE) 0G760300 THRU 0T178499
-
№АртикулНазвание
-
-1667-9011G86 GEAR HOUSING ASSEMBLY, Complete
BlackGEAR HOUSING ASSEMBLY, Complete
Black -
-1667-9011G86 GEAR HOUSING ASSEMBLY, Complete
GrayGEAR HOUSING ASSEMBLY, Complete
Gray -
11667-9011G59 GEAR HOUSING ASSEMBLY, Basic
BlackGEAR HOUSING ASSEMBLY, Basic
Black -
11667-9011G59 GEAR HOUSING ASSEMBLY, Basic
GrayGEAR HOUSING ASSEMBLY, Basic
Gray -
217-8M0084244 PIN, Dowel - With Hole (.375 x .625) , FrontPIN, Dowel - With Hole (.375 x .625) , Front
-
310-79953Q04 SCREW KIT, (.375-16 x .250)SCREW KIT, (.375-16 x .250)
-
422-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
512-191833 WASHER, FiberWASHER, Fiber
-
617-43044 PIN, Dowel - Without Hole (.375 x .625), RearPIN, Dowel - Without Hole (.375 x .625), Rear
-
731640T07 TRIM TABTRIM TAB
-
810-825427 SCREW, (.437-14 x 1.250) Stainless SteelSCREW, (.437-14 x 1.250) Stainless Steel
-
912-451761 WASHER, (.453 x .812 x .105) Black OxideWASHER, (.453 x .812 x .105) Black Oxide
-
1043040T1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
11NSS NOT SOLD SEPARATE, Bearing-NeedleNOT SOLD SEPARATE, Bearing-Needle
-
1243046 TUBE, OilerTUBE, Oiler
-
1397-826134Q ANODEANODE
-
1410-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1511-401386 NUT, (M6)NUT, (M6)
-
1643-44484T GEAR, Pinion (13 Teeth)GEAR, Pinion (13 Teeth)
-
1711-35921 NUT, (.625-18)NUT, (.625-18)
-
18850307 CAM, Shift ControlCAM, Shift Control
-
1931-42677A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2015-8M0063265 SHIM SETSHIM SET
-
2145-854808A1 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
2242461A1 SLEEVE/RING KITSLEEVE/RING KIT
-
2346-8M0113262 COVER ASSEMBLY, Water PumpCOVER ASSEMBLY, Water Pump
-
2427-430472 GASKETGASKET
-
2526-43036 SEAL, Oil, LowerSEAL, Oil, Lower
-
2626-43035 SEAL, Oil, UpperSEAL, Oil, Upper
-
2727-430331 GASKETGASKET
-
2827-8172771 GASKET
SN# 0G960500 & UpGASKET
SN# 0G960500 & Up -
2827-8172771 GASKET
SN# 0G960499 & BelowGASKET
SN# 0G960499 & Below -
29817275A2 HOUSING KIT, Upper Water PumpHOUSING KIT, Upper Water Pump
-
308172761 FACEPLATEFACEPLATE
-
3110-8248327 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
3243023 SEALSEAL
-
3328-8M0032833 KEYKEY
-
3447-43026T2 IMPELLERIMPELLER
-
3510-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
36853906A1 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
3753-29641 E RINGE RING
-
3823-43052A4 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
3925-457101 O-RING, (1.424 x .103)O-RING, (1.424 x .103)
-
4026-8164641 SEAL, OilSEAL, Oil
-
4110-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
-26-43035A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-46-8M0113799 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
