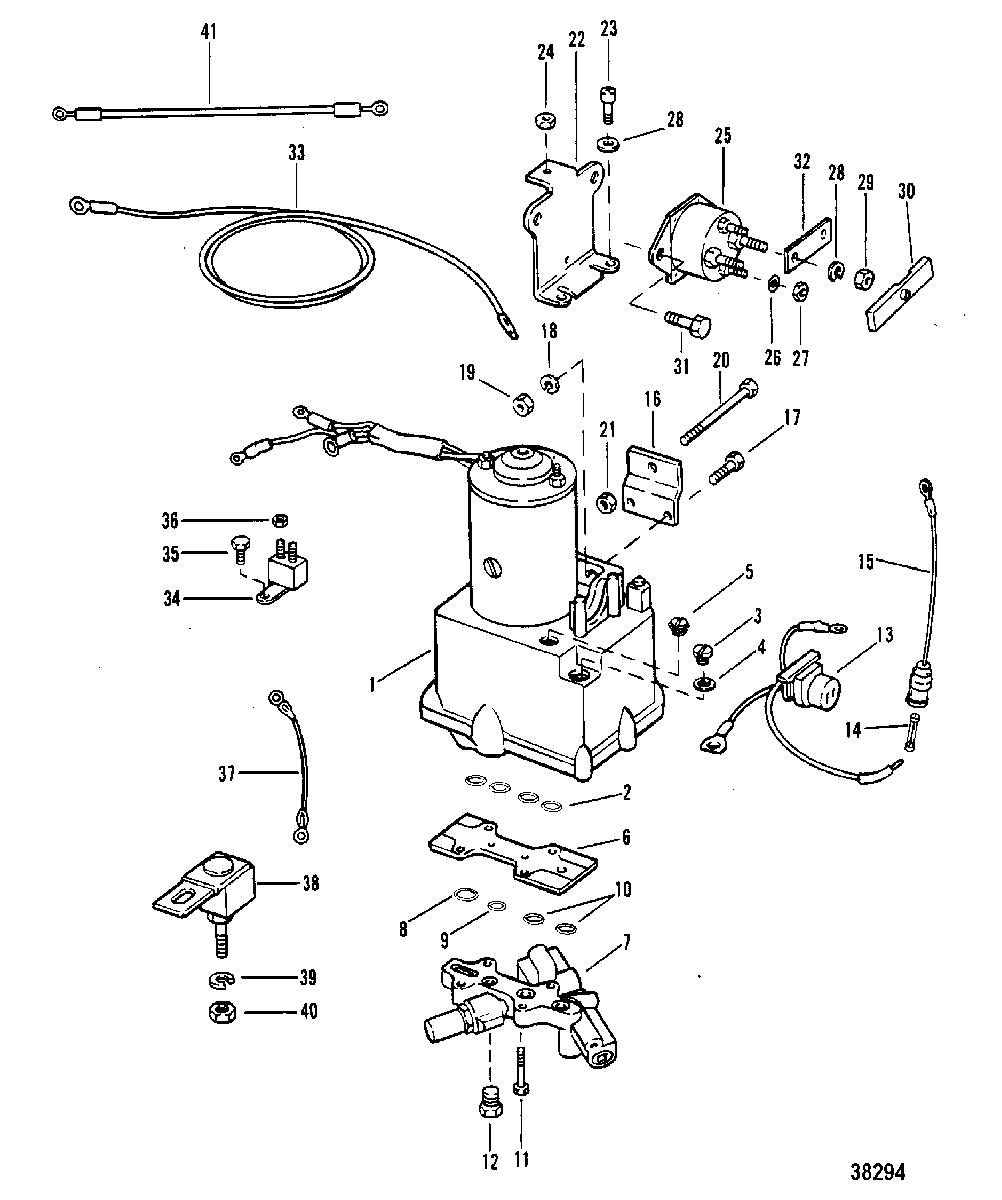

POWER TRIM COMPONENTS(WITH CIRCUIT BREAKER AND FUSE) для Mariner - 45 (4 CYL.) 9248006 THRU 9466691

  • №
    Артикул
    Название
  • 1
    92975A32 PUMP ASSEMBLY, Hydraulic
    PUMP ASSEMBLY, Hydraulic
  • 2
    25-48171 O-RING, (.364. x .070), MANIFOLD PLATE
    O-RING, (.364. x .070), MANIFOLD PLATE
  • 3
    10-79953Q04 SCREW, (.375-16 x .250), FILLER - HYDRAULIC PUMP
    SCREW, (.375-16 x .250), FILLER - HYDRAULIC PUMP
  • 4
    12-191833 WASHER, SEALING - FILLER SCREW
    WASHER, SEALING - FILLER SCREW
  • 5
    10-62269 SCREW, (#10-32 x .437), VENT - HYDRAULIC PUMP
    SCREW, (#10-32 x .437), VENT - HYDRAULIC PUMP
  • 6
    45336 PLATE, MANIFOLD
    PLATE, MANIFOLD
  • 7
    45197A2 VALVE ASSEMBLY, Control
    VALVE ASSEMBLY, Control
  • --
    25-48171 O-RING, (.364. x .070), MANIFOLD PLATE (SEE REF. #2)
    O-RING, (.364. x .070), MANIFOLD PLATE (SEE REF. #2)
  • 8
    25-45254 O-RING, CONTROL VALVE (3/4" O.D.)
    O-RING, CONTROL VALVE (3/4" O.D.)
  • 9
    25-48171 O-RING, (.364. x .070), CONROL VALVE (1/2" O.D.)
    O-RING, (.364. x .070), CONROL VALVE (1/2" O.D.)
  • 10
    25-45253 O-RING, CONTROL VALVE 5/8" O.D.
    O-RING, CONTROL VALVE 5/8" O.D.
  • 11
    10-56500 SCREW, (.250-28 x 1.250)
    SCREW, (.250-28 x 1.250)
  • 12
    22-46008 PLUG, CONTROL VALVE (1/2-20")
    PLUG, CONTROL VALVE (1/2-20")
  • 13
    84-79147A3 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 14
    88-79091 FUSE, 20 Ampere
    FUSE, 20 Ampere
  • 15
    84-95084A3 CABLE ASSEMBLY, FUSE
    CABLE ASSEMBLY, FUSE
  • 16
    45377T BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 17
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 18
    13-39107 LOCKWASHER, (.312-24), MOUNTING BRACKET SCREW
    LOCKWASHER, (.312-24), MOUNTING BRACKET SCREW
  • 19
    11-21908 NUT, (.312-18) Cad Plated, MOUNTING BRACKET SCREW
    NUT, (.312-18) Cad Plated, MOUNTING BRACKET SCREW
  • 20
    10-31830 BOLT, (.375-24 x 1.75), HYDRAULIC PUMP TO BOAT
    BOLT, (.375-24 x 1.75), HYDRAULIC PUMP TO BOAT
  • 21
    11-82671112 NUT, HYDRAULIC PUMP BOLT
    NUT, HYDRAULIC PUMP BOLT
  • 22
    94279 BRACKET, MOUNTING - STARTER SOLENOID
    BRACKET, MOUNTING - STARTER SOLENOID
  • 23
    10-28638 SCREW
    SCREW
  • 24
    11-826709106 NUT, (#10-32)
    NUT, (#10-32)
  • 25
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 26
    13-26995 LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
  • 27
    11-26419 NUT, (#8-32) Brass, SOLENOID TERMINAL
    NUT, (#8-32) Brass, SOLENOID TERMINAL
  • 28
    13-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
    LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
  • 29
    11-94330 NUT, (.250-20) Brass, SOLENOID TERMINAL
    NUT, (.250-20) Brass, SOLENOID TERMINAL
  • 30
    85-861680 BOOT, RUBBER - STARTER SOLENOID TERMINAL
    BOOT, RUBBER - STARTER SOLENOID TERMINAL
  • 31
    10-41508 SCREW, (.250-20 x .500) Stainless Steel
    SCREW, (.250-20 x .500) Stainless Steel
  • 32
    94275 LINK, SOLENOID TO SOLENOID
    LINK, SOLENOID TO SOLENOID
  • 33
    84-79139A13 CABLE ASSEMBLY, Battery (POSITIVE)
    CABLE ASSEMBLY, Battery (POSITIVE)
  • 33
    84-79138A1 CABLE ASSEMBLY (NEGATIVE)
    CABLE ASSEMBLY (NEGATIVE)
  • 34
    88-8M0085705 BREAKER, Circuit - 20 Ampere, EARLY MODELS
    BREAKER, Circuit - 20 Ampere, EARLY MODELS
  • 35
    10-8M0113176 SCREW, (#10-24 x .375), CIRCUIT BREAKER - EARLY MODELS
    SCREW, (#10-24 x .375), CIRCUIT BREAKER - EARLY MODELS
  • 36
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 37
    84-87379A5 WIRE
    WIRE
  • 38
    88-79023T90 FUSE ASSEMBLY, 90 Ampere
    FUSE ASSEMBLY, 90 Ampere
  • 39
    12-96457 WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL
    WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL
  • 40
    11-21825 NUT, (.250-28), FUSE TERMINAL
    NUT, (.250-28), FUSE TERMINAL
  • 41
    84-61600A9 WIRE, STARTER SOLENOID (BLACK)
    WIRE, STARTER SOLENOID (BLACK)
