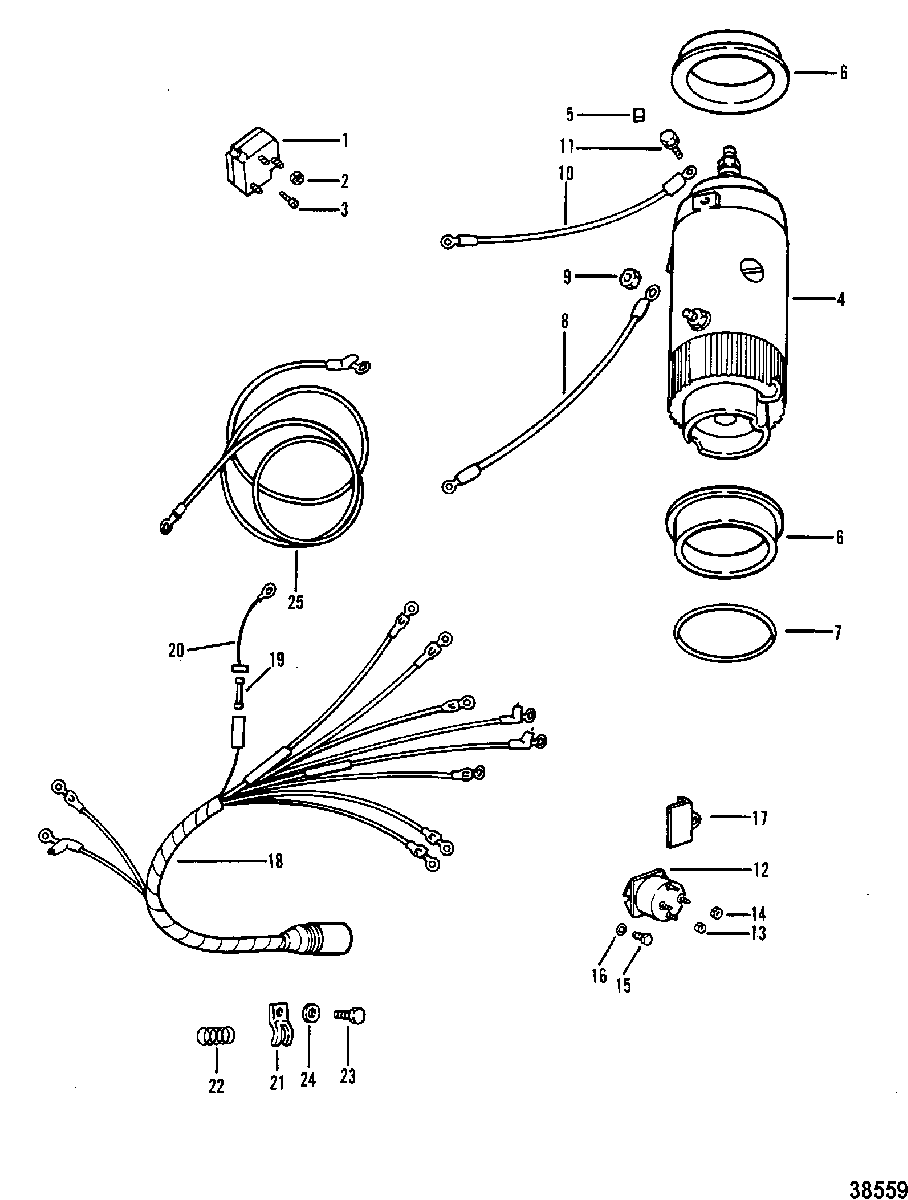

ELECTRIC COMPONENTS для Mariner - 45 (4 CYL.) 8063985 & Up
-
№АртикулНазвание
-
18M0058226 RECTIFIERRECTIFIER
-
211-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
310-20411 SCREW, (.190-24 x .62)SCREW, (.190-24 x .62)
-
450-898265005 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
58M0043376 STOP, RUBBERSTOP, RUBBER
-
623-8M0034918 COLLAR, RUBBERCOLLAR, RUBBER
-
723-56774 SPACER, COLLAR TO BRACKETSPACER, COLLAR TO BRACKET
-
884-93389A1 WIRE (YELLOW)WIRE (YELLOW)
-
911-64015 NUT, (.250-20)NUT, (.250-20)
-
1084-93388A14 CABLE ASSEMBLY, BlackCABLE ASSEMBLY, Black
-
1110-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
1289-853654A1 SOLENOID, Starter
SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & BelowSOLENOID, Starter
SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below -
1289-96158T SOLENOID, Starter
SN# USA-6146849/Bel-9362391/Can-7198593 & UpSOLENOID, Starter
SN# USA-6146849/Bel-9362391/Can-7198593 & Up -
1311-45076 NUT, (#10-32) Brass
SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & BelowNUT, (#10-32) Brass
SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below -
1311-26419 NUT, (#8-32) Brass
SN# USA-6146849/Bel-9362391/Can-7198593 & UpNUT, (#8-32) Brass
SN# USA-6146849/Bel-9362391/Can-7198593 & Up -
1411-21908 NUT, (.312-18) Cad Plated
SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & BelowNUT, (.312-18) Cad Plated
SN# USA-6146848/Aus-8075602/Bel-9362390/Can-7198592 & Below -
1411-94330 NUT, (.250-20) Brass
SN# USA-6146849/Bel-9362391/Can-7198593 & UpNUT, (.250-20) Brass
SN# USA-6146849/Bel-9362391/Can-7198593 & Up -
1510-98253 SCREW, (.250-20 x .500)SCREW, (.250-20 x .500)
-
1613-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1785-97861 INSULATOR, STARTER SOLENOIDINSULATOR, STARTER SOLENOID
-
1884-96277A4 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1988-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
2084-95084A2 CABLE ASSEMBLY, FUSECABLE ASSEMBLY, FUSE
-
2188751 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
2224-28357 SPRING, WIRING HARNESSSPRING, WIRING HARNESS
-
2310-23702 SCREW, (.190-32 x 1.12), WIRING HARNESS CLAMPSCREW, (.190-32 x 1.12), WIRING HARNESS CLAMP
-
2412-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
2584-88439A3 CABLE ASSEMBLY, Positive - BatteryCABLE ASSEMBLY, Positive - Battery
-
2584-88439A4 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
