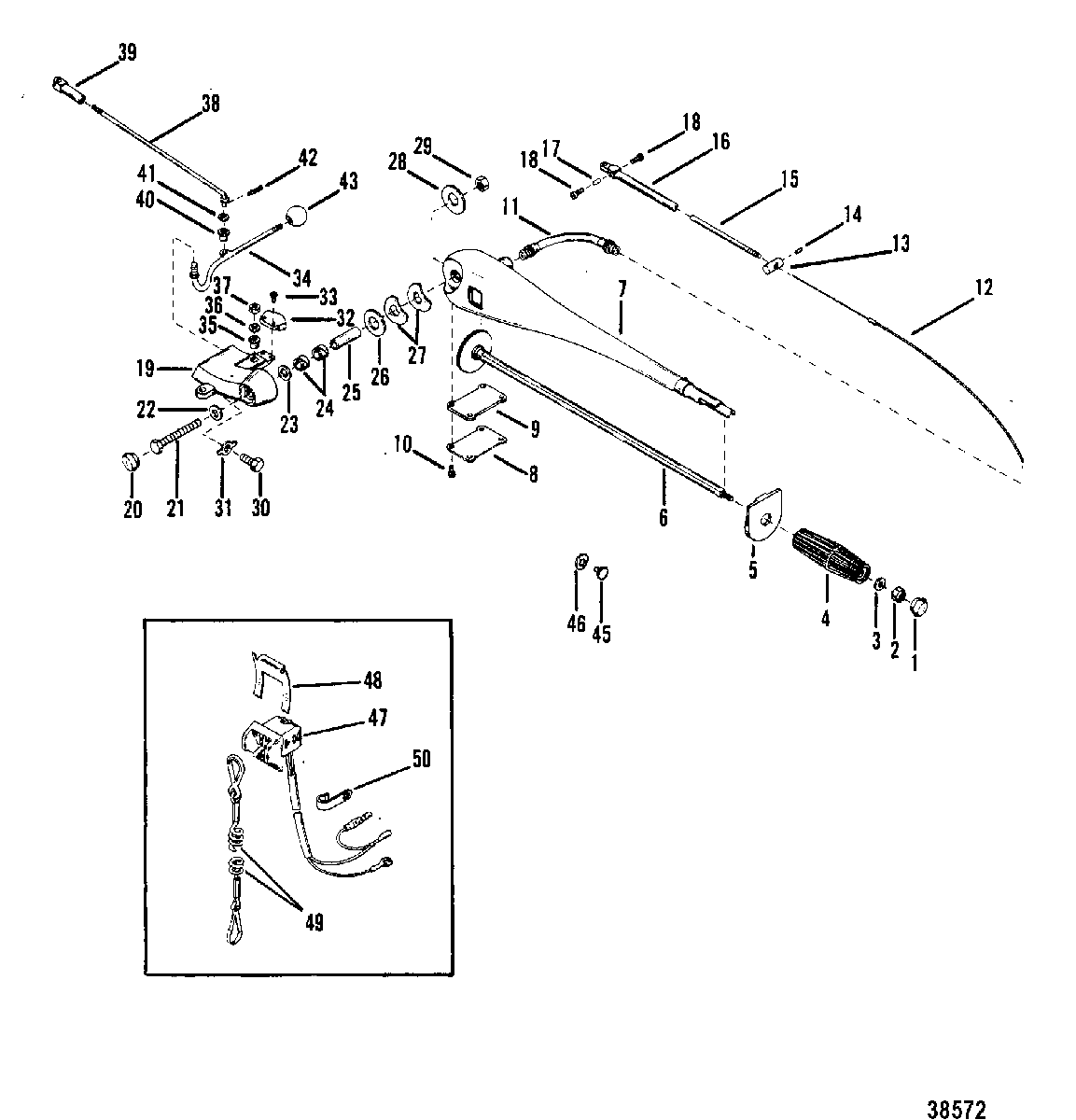

STEERING HANDLE ASSEMBLY для Mariner - 45 (4 CYL.) 5531630 THRU 0B110788

  • №
    Артикул
    Название
  • 1
    48416T CAP, STEERING HANDLE GRIP
    CAP, STEERING HANDLE GRIP
  • 2
    11-826709109 NUT, (.250-28), STEERING HANDLE ARM
    NUT, (.250-28), STEERING HANDLE ARM
  • 3
    12-69056 WASHER, (.255 x .625 x .0312), STEERING HANDLE ARM
    WASHER, (.255 x .625 x .0312), STEERING HANDLE ARM
  • 4
    58192A1 GRIP, STEERING HANDLE ARM
    GRIP, STEERING HANDLE ARM
  • 5
    48414 HOUSING, DRIVE WHEEL
    HOUSING, DRIVE WHEEL
  • 6
    48516A1 DRIVE WHEEL/ROD ASSEMBLY
    DRIVE WHEEL/ROD ASSEMBLY
  • 7
    48405A2 ARM (USE WITH PUSH BOTTON SWITCH)
    ARM (USE WITH PUSH BOTTON SWITCH)
  • 7
    48405A2 ARM ASSEMBLY (USE WITH TOGGLE SWITCH)
    ARM ASSEMBLY (USE WITH TOGGLE SWITCH)
  • 8
    48519 PLATE, COVER - DRIVE WHEEL
    PLATE, COVER - DRIVE WHEEL
  • 9
    27-48518 GASKET, COVER PLATE
    GASKET, COVER PLATE
  • 10
    10-72169 SCREW, (#10-24 x .50), DRIVE WHEEL COVER PLATE
    SCREW, (#10-24 x .50), DRIVE WHEEL COVER PLATE
  • 11
    785511 CONDUIT, Cable
    CONDUIT, Cable
  • 12
    48520 CABLE, Throttle
    CABLE, Throttle
  • 13
    89613 CONNECTOR, CONTROL LINKAGE
    CONNECTOR, CONTROL LINKAGE
  • 14
    10-824081 SCREW, SET - THROTTLE CABLE GUIDE TUBE
    SCREW, SET - THROTTLE CABLE GUIDE TUBE
  • 15
    8M0026078 TUBE, THROTTLE CABLE GUIDE
    TUBE, THROTTLE CABLE GUIDE
  • 16
    43433 GUIDE, THROTTLE CABLE
    GUIDE, THROTTLE CABLE
  • 17
    20007 ANCHOR, THROTTLE CABLE
    ANCHOR, THROTTLE CABLE
  • 18
    10-20518 SET SCREW, (#8-32), THROTTLE CABLE ANCHOR
    SET SCREW, (#8-32), THROTTLE CABLE ANCHOR
  • 19
    48404T8 BRACKET, HANDLE
    BRACKET, HANDLE
  • 20
    48416T CAP, HANDLE BRACKET
    CAP, HANDLE BRACKET
  • 21
    10-823597 SCREW, HANDLE BRACKET
    SCREW, HANDLE BRACKET
  • 22
    12-48477 WASHER, HANDLE BRACKET (.505 I.D.)
    WASHER, HANDLE BRACKET (.505 I.D.)
  • 23
    12-48526 WASHER, NYLON - HANDLE BRACKET (.630 I.D.)
    WASHER, NYLON - HANDLE BRACKET (.630 I.D.)
  • 24
    23-28919 BUSHING, NYLON - HANDLE BRACKET (5/8" I.D.)
    BUSHING, NYLON - HANDLE BRACKET (5/8" I.D.)
  • 25
    23-48525 SPACER, HANDLE BRACKET
    SPACER, HANDLE BRACKET
  • 26
    12-38000 WASHER, NYLON - HANDLE BRACKET (1-35/64" O.D.)
    WASHER, NYLON - HANDLE BRACKET (1-35/64" O.D.)
  • 27
    13-48478 WAVE WASHER, HANDLE BRACKET
    WAVE WASHER, HANDLE BRACKET
  • 28
    12-49636 WASHER, NYLON - HANDLE BRACKET (1-3/4" O.D.)
    WASHER, NYLON - HANDLE BRACKET (1-3/4" O.D.)
  • 29
    11-82671317 NUT, (.500-20), HANDLE BRACKET SCREW
    NUT, (.500-20), HANDLE BRACKET SCREW
  • 30
    10-35786 SCREW, (.375-24 x 1.00), BRACKET TO ENGINE
    SCREW, (.375-24 x 1.00), BRACKET TO ENGINE
  • 31
    14-43589 TAB WASHER, BRACKET SCREW
    TAB WASHER, BRACKET SCREW
  • 32
    78812A1 DETENT, SHIFT LEVER
    DETENT, SHIFT LEVER
  • 33
    10-48409 SCREW, (#10-16 x .625) Stainless Steel, SHIFT LEVER DETENT
    SCREW, (#10-16 x .625) Stainless Steel, SHIFT LEVER DETENT
  • 34
    485681 SHIFT LEVVER
    SHIFT LEVVER
  • 35
    23-48237 BUSHING, NYLON - SHIFT LEVER (3/8"I.D.)
    BUSHING, NYLON - SHIFT LEVER (3/8"I.D.)
  • 36
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel, SHIFT LEVER
    WASHER, (.406 x .734 x .063) Stainless Steel, SHIFT LEVER
  • 37
    11-8M0042636 NUT, (.375-24), SHIFT LEVER
    NUT, (.375-24), SHIFT LEVER
  • 38
    8128061 SHIFT ROD
    SHIFT ROD
  • 39
    48419T ROD END, SHIFT ROD
    ROD END, SHIFT ROD
  • 40
    23-48475 BUSHING, NYLON - SHIFT ROD (1/4" I.D.)
    BUSHING, NYLON - SHIFT ROD (1/4" I.D.)
  • 41
    12-35950 WASHER, (.273 x .437 x .031) Stainless Steel, SHIFT ROD
    WASHER, (.273 x .437 x .031) Stainless Steel, SHIFT ROD
  • 42
    18-25191 COTTER PIN, SHIFT ROD
    COTTER PIN, SHIFT ROD
  • 43
    98530 KNOB, SHIFT LEVER
    KNOB, SHIFT LEVER
  • 45
    19-35827 PLUG, BOTTOM COWL - SHORTING SWITCH HOLE
    PLUG, BOTTOM COWL - SHORTING SWITCH HOLE
  • 46
    11-30428 FASTENER, PLUG TO BOTTOM COWL
    FASTENER, PLUG TO BOTTOM COWL
  • 47
    87-11083A11 SWITCH ASSEMBLY, Stop
    USE WITH TOGGLE SWITCH
    SWITCH ASSEMBLY, Stop
    USE WITH TOGGLE SWITCH
  • 48
    8M0032846 RETANER, STOP SWITCH
    USE WITH TOGGLE SWITCH
    RETANER, STOP SWITCH
    USE WITH TOGGLE SWITCH
  • 49
    8M0092850 LANYARD ASSEMBLY
    USE WITH TOGGLE SWITCH
    LANYARD ASSEMBLY
    USE WITH TOGGLE SWITCH
  • 50
    54-648552 CLAMP, STOP SWITCH
    USE WITH TOGGLE SWITCH
    CLAMP, STOP SWITCH
    USE WITH TOGGLE SWITCH
