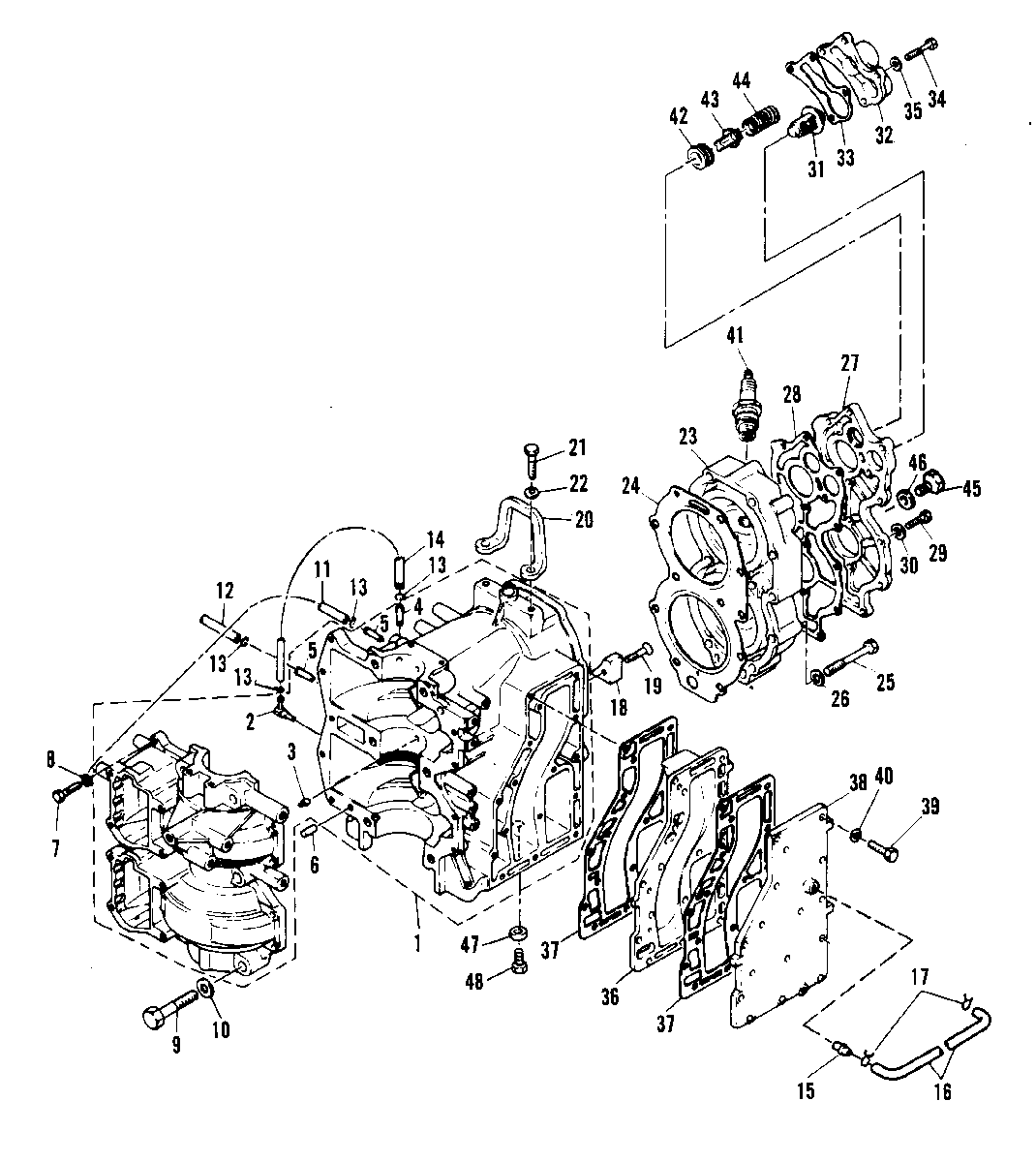

CRANKCASE AND CYLINDER HEAD для Mariner - 40C (TWIN CARB) 6E9-400231 THRU 6E9-423162 (EL)
-
№АртикулНазвание
-
1870-8561M CRANKCASE ASS'YCRANKCASE ASS'Y
-
221-80727M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
317-81258M PIN, DOWELPIN, DOWEL
-
422-80122M FITTING, DRAINGFITTING, DRAING
-
521-83329M FITTING, DRAINFITTING, DRAIN
-
617-82368M PIN, DOWELPIN, DOWEL
-
710-41837M BOLT, WITH WASHER
SERIAL 00004991-09999999BOLT, WITH WASHER
SERIAL 00004991-09999999 -
710-82405M BOLT
SERIAL 00000000-00004990BOLT
SERIAL 00000000-00004990 -
812-81792M WASHER
SERIAL 00000000-00004990WASHER
SERIAL 00000000-00004990 -
910-95413M BOLT, WITH WASHER
SERIAL 00004991-09999999BOLT, WITH WASHER
SERIAL 00004991-09999999 -
910-83327M BOLT
SERIAL 00000000-00004990BOLT
SERIAL 00000000-00004990 -
1012-81807M WASHER
SERIAL 00000000-00004990WASHER
SERIAL 00000000-00004990 -
1132-811045M HOSE (EL-418727 EUL-620175) AND BELOW
SERIAL 00000000-00006405HOSE (EL-418727 EUL-620175) AND BELOW
SERIAL 00000000-00006405 -
1232-811045M HOSE (EL-418727 EUL-620175) AND BELOW
SERIAL 00000000-00006405HOSE (EL-418727 EUL-620175) AND BELOW
SERIAL 00000000-00006405 -
1354-82046M CLAMPCLAMP
-
1432-83328M HOSEHOSE
-
1522-94716M FITTING, WATERFITTING, WATER
-
1632-94479M HOSEHOSE
-
1754-82047M CLAMPCLAMP
-
1883330M ANODEANODE
-
1910-82168M SCREWSCREW
-
20814553M BRACKET, ENGINE (M AND ML)BRACKET, ENGINE (M AND ML)
-
2110-82438M BOLTBOLT
-
2213-82215M WASHER, LOCK
SERIAL 00000000-00004990WASHER, LOCK
SERIAL 00000000-00004990 -
23968-8562M HEAD, CYLINDERHEAD, CYLINDER
-
2427-95414 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2510-8M0101617 BOLT, WITH WASHER
SERIAL 00004991-09999999BOLT, WITH WASHER
SERIAL 00004991-09999999 -
2510-82408M BOLT
SERIAL 00000000-00004990BOLT
SERIAL 00000000-00004990 -
2612-80564M WASHER
SERIAL 00000000-00004990WASHER
SERIAL 00000000-00004990 -
2797703M COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
2827-97704M GASKET, HEAD COVERGASKET, HEAD COVER
-
2910-84058M BOLTBOLT
-
3012-82214M WASHER, LOCKWASHER, LOCK
-
3199080M THERMOSTATTHERMOSTAT
-
3297705M COVER, THERMOSTATCOVER, THERMOSTAT
-
3327-814555 GASKET, THERMOSTATGASKET, THERMOSTAT
-
3410-83285M BOLTBOLT
-
3512-82214M WASHER, LOCKWASHER, LOCK
-
3697707M INNER COVER, EXHAUSTINNER COVER, EXHAUST
-
3727-83338 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
3897708M OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
3910-82405M BOLT
SERIAL 00004990-09999999BOLT
SERIAL 00004990-09999999 -
3910-82405M BOLT
SERIAL 00000000-00004990BOLT
SERIAL 00000000-00004990 -
4012-82214M WASHERWASHER
-
4133-8M0114741 SPARK PLUG (B-8HS) NGKSPARK PLUG (B-8HS) NGK
-
4225-82067M GROMMETGROMMET
-
4381267M VALVE, PRESSURE CONTROLVALVE, PRESSURE CONTROL
-
4424-83340M SPRINGSPRING
-
4522-81926M PLUGPLUG
-
4627-81990M GASKET, PLUGGASKET, PLUG
-
4797-83394M ANODEANODE
-
4810-826957M BOLTBOLT
-
4895415M POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE) (M-004991 ML-305579)POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE) (M-004991 ML-305579)
-
4895415M POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE) (004990 ML-305578 E-)POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE) (004990 ML-305578 E-)
-
4827-97666M GASKET SET, POWERHEADGASKET SET, POWERHEAD
Все узлы модели:
- C.D.I. MAGNETO IGNITION
- CARBURETOR
- CL AMP AND SWIVEL BRACKET/REVERSE LOCK
- COWLING
- • CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- ELECTRIC START COMPONENTS
- ELECTRIC STARTER MOTOR
- FUEL LINES AND FILTER
- FUEL PUMP
- FUEL TANK AND FUEL LINE ASSEMBLY (ORIGINAL EQUIPMENT)
- FUEL TANK ASSEMBLY (NOT ORIGINAL EQUIPMENT TANK) (SEE NOTE)
- GEAR SHIFT LINKAGE
- GEARHOUSING ASSEMBLY
- INTAKE MANIFOLD
- MOUNTING SYSTEM
- OPTIONAL PARTS
- RECOIL STARTER
- REMOTE CONTROL ATTACHING KIT
- STEERING HANDLE
- THROTTLE CONTROL
