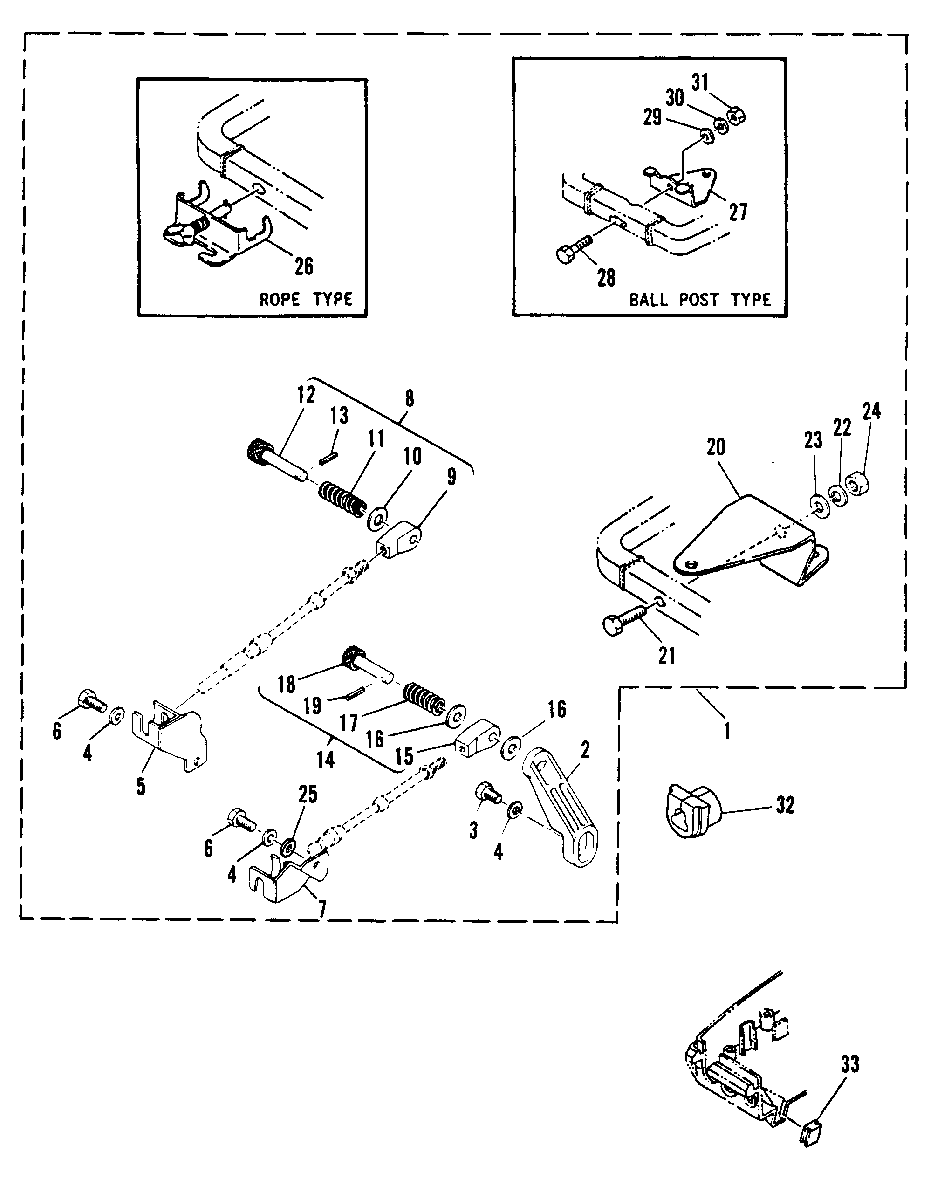

REMOTE CONTROL ATTACHING KIT для Mariner - 40C (TWIN CARB) 6E9-100101 THRU 6E9-105013 (E)

  • №
    Артикул
    Название
  • 1
    43992A1 REMOTE CONTROL ATTACHMENT KIT
    REMOTE CONTROL ATTACHMENT KIT
  • 2
    83716M THROTTLE LEVER
    THROTTLE LEVER
  • 3
    10-91772M BOLT
    BOLT
  • 4
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 5
    83718M BRACKET, REMOTE CONTROL
    BRACKET, REMOTE CONTROL
  • 6
    10-826957M BOLT
    BOLT
  • 7
    83932M BRACKET, REMOTE CONTROL
    BRACKET, REMOTE CONTROL
  • 8
    83719M SHIFT CABLE END ASS'Y
    SHIFT CABLE END ASS'Y
  • 9
    83720M CABLE END
    CABLE END
  • 10
    12-82216M WASHER
    WASHER
  • 11
    24-83721M SPRING
    SPRING
  • 12
    17-814500M HOOK, CABLE
    HOOK, CABLE
  • 13
    17-82146M PIN, ROLL
    PIN, ROLL
  • 14
    83933M THROTTLE CABLE END ASS'Y
    THROTTLE CABLE END ASS'Y
  • 15
    83934M CABLE END
    CABLE END
  • 16
    12-82216M WASHER
    WASHER
  • 17
    24-83725M SPRING
    SPRING
  • 18
    17-814499M HOOK, CABLE
    HOOK, CABLE
  • 19
    17-82146M PIN, ROLL
    PIN, ROLL
  • 20
    83698M BRACKET, MECHANICAL STEERING
    BRACKET, MECHANICAL STEERING
  • 21
    10-91636M BOLT
    BOLT
  • 22
    13-82218M WASHER, LOCK
    WASHER, LOCK
  • 23
    12-82220M WASHER
    WASHER
  • 24
    11-81785M LOCKNUT
    LOCKNUT
  • 25
    12-82213M WASHER
    WASHER
  • 26
    83727M STEERING HOOK ASS'Y (ROPE TYPE)
    SERIAL 00004991-09999999
    STEERING HOOK ASS'Y (ROPE TYPE)
    SERIAL 00004991-09999999
  • 27
    11670T HOOK, STEERING (BALL POST TYPE)
    SERIAL 00004991-09999999
    HOOK, STEERING (BALL POST TYPE)
    SERIAL 00004991-09999999
  • 28
    10-91636M BOLT
    SERIAL 00004991-09999999
    BOLT
    SERIAL 00004991-09999999
  • 29
    12-82220M WASHER
    SERIAL 00004991-09999999
    WASHER
    SERIAL 00004991-09999999
  • 30
    13-82218M WASHER
    SERIAL 00004991-09999999
    WASHER
    SERIAL 00004991-09999999
  • 31
    11-81785M NUT
    SERIAL 00004991-09999999
    NUT
    SERIAL 00004991-09999999
  • 32
    25-94476M GROMMET
    SERIAL 00000000-00004990
    GROMMET
    SERIAL 00000000-00004990
  • 33
    25-83728M GROMMET
    GROMMET
