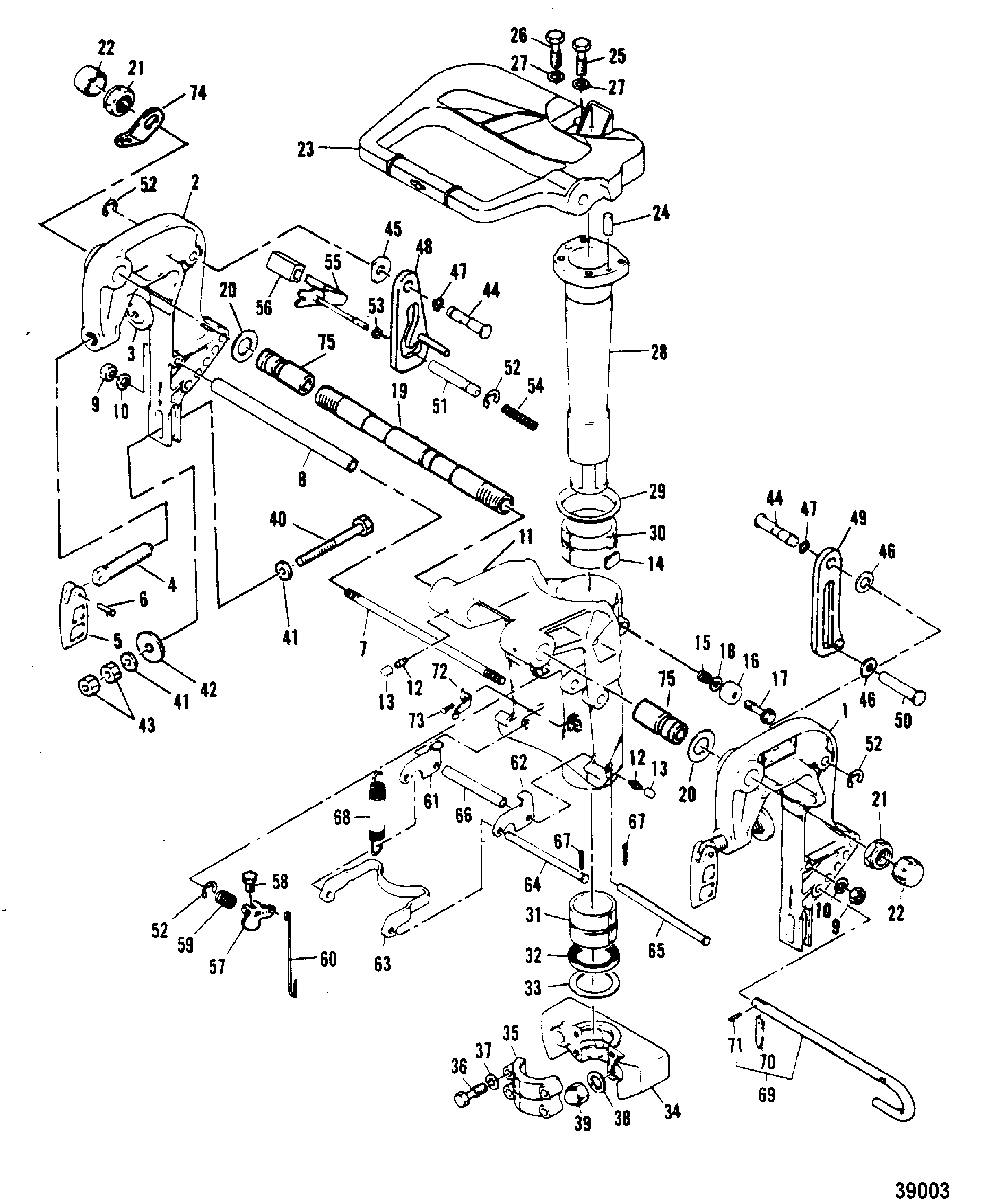

CLAMP AND SWIVEL BRACKET(MANUAL AND ELECTRIC) для Mariner - 40C (TWIN CARB) (W/AUTO-BLEND) 6E9-500101 & Up

  • №
    Артикул
    Название
  • 1
    1484-9822M CLAMP BRACKET, Port, CLAMP (PORT)
    SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Below
    CLAMP BRACKET, Port, CLAMP (PORT)
    SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Below
  • 1
    1484-9822M BRACKET, CLAMP (PORT)
    SN# (M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
    BRACKET, CLAMP (PORT)
    SN# (M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
  • 2
    1484-9823M CLAMP BRACKET, Starboard, CLAMP (STARBOARD)
    SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
    CLAMP BRACKET, Starboard, CLAMP (STARBOARD)
    SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
  • 2
    1484-9823M CLAMP BRACKET, Starboard, CLAMP (STARBOARD)
    SN# (M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
    CLAMP BRACKET, Starboard, CLAMP (STARBOARD)
    SN# (M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
  • 3
    12-80638M PAD, TRANSOM CLAMP
    PAD, TRANSOM CLAMP
  • 4
    10-83481M SCREW, TRANSOM CLAMP
    SCREW, TRANSOM CLAMP
  • 5
    11868M HANDLE, TRANSOM CLAMP
    HANDLE, TRANSOM CLAMP
  • 6
    17-81889M PIN
    PIN
  • 7
    16-83472M STUD
    STUD
  • 8
    19258M SPACER
    SPACER
  • 9
    11-82382M NUT
    NUT
  • 10
    13-82215M LOCKWASHER
    LOCKWASHER
  • 11
    1485-9821M BRACKET, SWIVEL
    SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
    BRACKET, SWIVEL
    SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
  • 11
    1485-6996M BRACKET, SWIVEL
    SN# (M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
    BRACKET, SWIVEL
    SN# (M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
  • 12
    22-82369M FITTING, GREASE
    FITTING, GREASE
  • 13
    81439M CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 14
    80633M PLATE, FRICTION
    PLATE, FRICTION
  • 15
    24-83488M SPRING
    SPRING
  • 16
    26-83490M SEAL, RUBBER
    SEAL, RUBBER
  • 17
    10-43106M BOLT
    BOLT
  • 18
    12-82217M WASHER
    WASHER
  • 19
    10-18974M BOLT, CLAMP BRACKET
    SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
    BOLT, CLAMP BRACKET
    SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
  • 19
    10-41312M BOLT, CLAMP BRACKET
    SN# (M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
    BOLT, CLAMP BRACKET
    SN# (M-008625, ML-311888, E-105663, EL-428357, ETL-502265 & Below
  • 20
    12-81836M WASHER
    WASHER
  • 21
    11-879172252 NUT, NYLON
    NUT, NYLON
  • 22
    811914M CAP
    CAP
  • 23
    8M0057160 BRACKET, STEERING
    BRACKET, STEERING
  • 24
    17-82368M PIN, DOWEL
    PIN, DOWEL
  • 25
    10-95416M BOLT
    BOLT
  • 26
    10-82442M BOLT
    BOLT
  • 27
    13-82215M LOCKWASHER
    LOCKWASHER
  • 28
    83907M SHAFT, STEERING PIVOT
    SHAFT, STEERING PIVOT
  • 29
    12-83482M WASHER
    WASHER
  • 30
    23-83483M BUSHING
    BUSHING
  • 31
    23-83485M BUSHING
    BUSHING
  • 32
    26-83486M SEAL, Oil
    SEAL, Oil
  • 33
    12-83487M WASHER
    WASHER
  • 34
    83492T HOUSING, LOWER MOUNT
    HOUSING, LOWER MOUNT
  • 35
    83491M HOUSING, LOWER MOUNT
    HOUSING, LOWER MOUNT
  • 36
    10-85277614 BOLT
    BOLT
  • 37
    13-82215M LOCKWASHER
    LOCKWASHER
  • 38
    12-84429M WASHER
    WASHER
  • 39
    11-82397M NUT, CROWN
    NUT, CROWN
  • 40
    10-84970M BOLT
    BOLT
  • 41
    12-82220M WASHER
    WASHER
  • 42
    12-81812M WASHER
    WASHER
  • 43
    11-82395M NUT
    NUT
  • 44
    17-19257M PIN
    PIN
  • 45
    12-83458M WASHER
    WASHER
  • 46
    12-83462M WASHER
    WASHER
  • 47
    13-83457M WAVE WASHER
    WAVE WASHER
  • 48
    14278M STOP, TILT
    (STARBOARD - FOR 75 DEGREE TILT)
    STOP, TILT
    (STARBOARD - FOR 75 DEGREE TILT)
  • 48
    42440M STOP, TILT
    (STARBOARD - FOR 70 DEGREE TILT )
    STOP, TILT
    (STARBOARD - FOR 70 DEGREE TILT )
  • 49
    42441M STOP, TILT
    (PORT - FOR 75 DEGREE TILT)
    STOP, TILT
    (PORT - FOR 75 DEGREE TILT)
  • 49
    42442M STOP, TILT
    (PORT - FOR 70 DEGREE TILT)
    STOP, TILT
    (PORT - FOR 70 DEGREE TILT)
  • 50
    17-95450M PIN
    PIN
  • 51
    83464M SHAFT
    SHAFT
  • 52
    53-83461M RING, Snap
    RING, Snap
  • 53
    12-83493M WASHER
    WASHER
  • 54
    24-83909M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 55
    14260M LEVER ASSEMBLY, Tilt
    LEVER ASSEMBLY, Tilt
  • 56
    81395M COVER
    COVER
  • 57
    83467M LEVER, TILT
    LEVER, TILT
  • 58
    10-84313M BOLT
    BOLT
  • 59
    24-83465M SPRING
    SPRING
  • 60
    83468M ROD, LOCK
    ROD, LOCK
  • 61
    83905M BRACKET, TILT LOCK
    BRACKET, TILT LOCK
  • 62
    83906M BRACKET, TILT LOCK
    BRACKET, TILT LOCK
  • 63
    83479M TILT LOCK
    TILT LOCK
  • 64
    17-83477M PIN
    PIN
  • 65
    17-83478M PIN
    PIN
  • 66
    23-83480M SPACER
    SPACER
  • 67
    18-82128M PIN, COTTER
    PIN, COTTER
  • 68
    24-83476M SPRING
    SPRING
  • 69
    17-814972T PIN ASSEMBLY, Tilt
    PIN ASSEMBLY, Tilt
  • 70
    84044M STOPPER, TILT LOCK
    STOPPER, TILT LOCK
  • 71
    17-82146M PIN, ROLL
    PIN, ROLL
  • 72
    24-83494M SPRING
    SPRING
  • 73
    17-83495M RIVET
    RIVET
  • 74
    19111M PLATE, CLAMP BRACKET
    SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
    PLATE, CLAMP BRACKET
    SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
  • 75
    23-41313M BUSHING
    SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
    BUSHING
    SN# (M-008626, ML-311889, E-105664, EL-428358, ETL-502266 & Up
