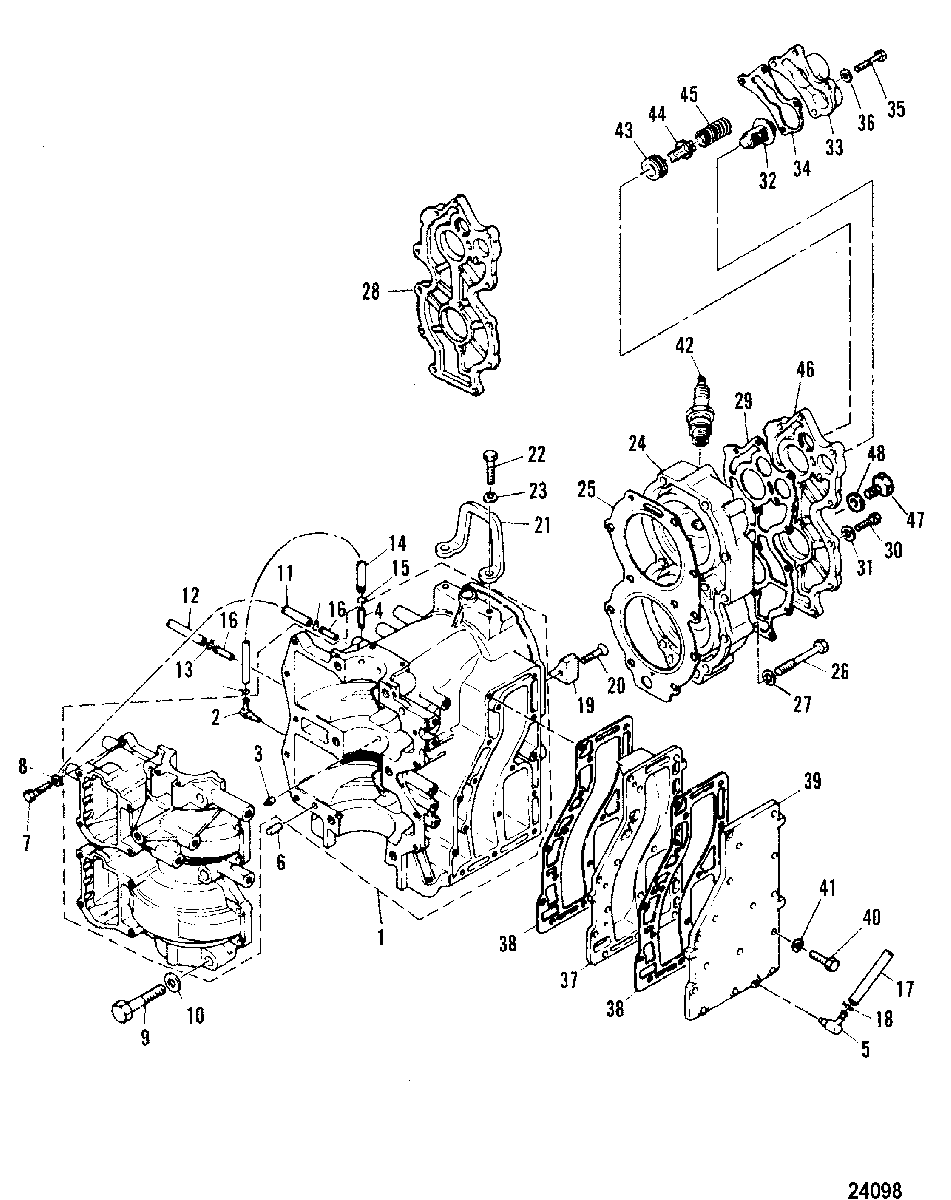

CRANKCASE AND CYLINDER HEAD для Mariner - 40B (THRU PROP. EXHAUST) M-676-B000106 THRU B002780
-
№АртикулНазвание
-
1870-6982M CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
221-80727M CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
317-81258M PIN, DOWELPIN, DOWEL
-
422-80122M FITTING, DRAINFITTING, DRAIN
-
522-83326M FITTING, WATERFITTING, WATER
-
617-82368M PIN, DOWELPIN, DOWEL
-
710-82405M BOLTBOLT
-
812-81792M WASHERWASHER
-
910-83327M BOLTBOLT
-
1012-81807M WASHERWASHER
-
1132-811045M HOSEHOSE
-
1232-811045M HOSEHOSE
-
1354-82046M CLAMPCLAMP
-
1432-83328M HOSEHOSE
-
1554-82046M CLAMPCLAMP
-
1621-83329M FITTING, DRAINFITTING, DRAIN
-
1732-81323M HOSEHOSE
-
1854-82047M CLAMPCLAMP
-
1983330M ANODEANODE
-
2010-82168M SCREWSCREW
-
21814553M EYE, ENGINEEYE, ENGINE
-
2210-82439M BOLTBOLT
-
2313-82215M WASHER, LOCKWASHER, LOCK
-
24968-6983M HEAD, CYLINDERHEAD, CYLINDER
-
2527-95414 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2610-82408M BOLTBOLT
-
2712-80564M WASHERWASHER
-
2883333M COVER, CYLINDER HEAD
SN# S-000940/L-300960/E-101340/EL-402625 & BelowCOVER, CYLINDER HEAD
SN# S-000940/L-300960/E-101340/EL-402625 & Below -
2927-83334M GASKET, HEAD COVERGASKET, HEAD COVER
-
3010-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
3112-82214M WASHER, LOCKWASHER, LOCK
-
3299080M THERMOSTATTHERMOSTAT
-
3319255M COVER, THERMOSTATCOVER, THERMOSTAT
-
3427-83336M GASKET, THERMOSTATGASKET, THERMOSTAT
-
3510-83285M BOLTBOLT
-
3612-82214M WASHER, LOCKWASHER, LOCK
-
3797707M INNER COVER, EXHAUSTINNER COVER, EXHAUST
-
3827-83338 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
3983339M OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
4010-82405M BOLTBOLT
-
4112-82214M WASHERWASHER
-
4233-8M0114741 SPARK PLUG (B-8HS) NGKSPARK PLUG (B-8HS) NGK
-
4325-82067M GROMMETGROMMET
-
4481267M VALVE, PRESSURE CONTROLVALVE, PRESSURE CONTROL
-
4524-83340M SPRINGSPRING
-
4694480M COVER, CYLINDER HEAD
SN# S-000941/L-300961/E-101341/EL-402626 & UpCOVER, CYLINDER HEAD
SN# S-000941/L-300961/E-101341/EL-402626 & Up -
4722-81926M PLUG
SN# S-000941/L-300961/E-101341/EL-402626 & UpPLUG
SN# S-000941/L-300961/E-101341/EL-402626 & Up -
4827-81990M GASKET, PLUG
SN# S-000941/L-300961/E-101341/EL-402626 & UpGASKET, PLUG
SN# S-000941/L-300961/E-101341/EL-402626 & Up -
-94482M POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-94483M GASKET SETGASKET SET
