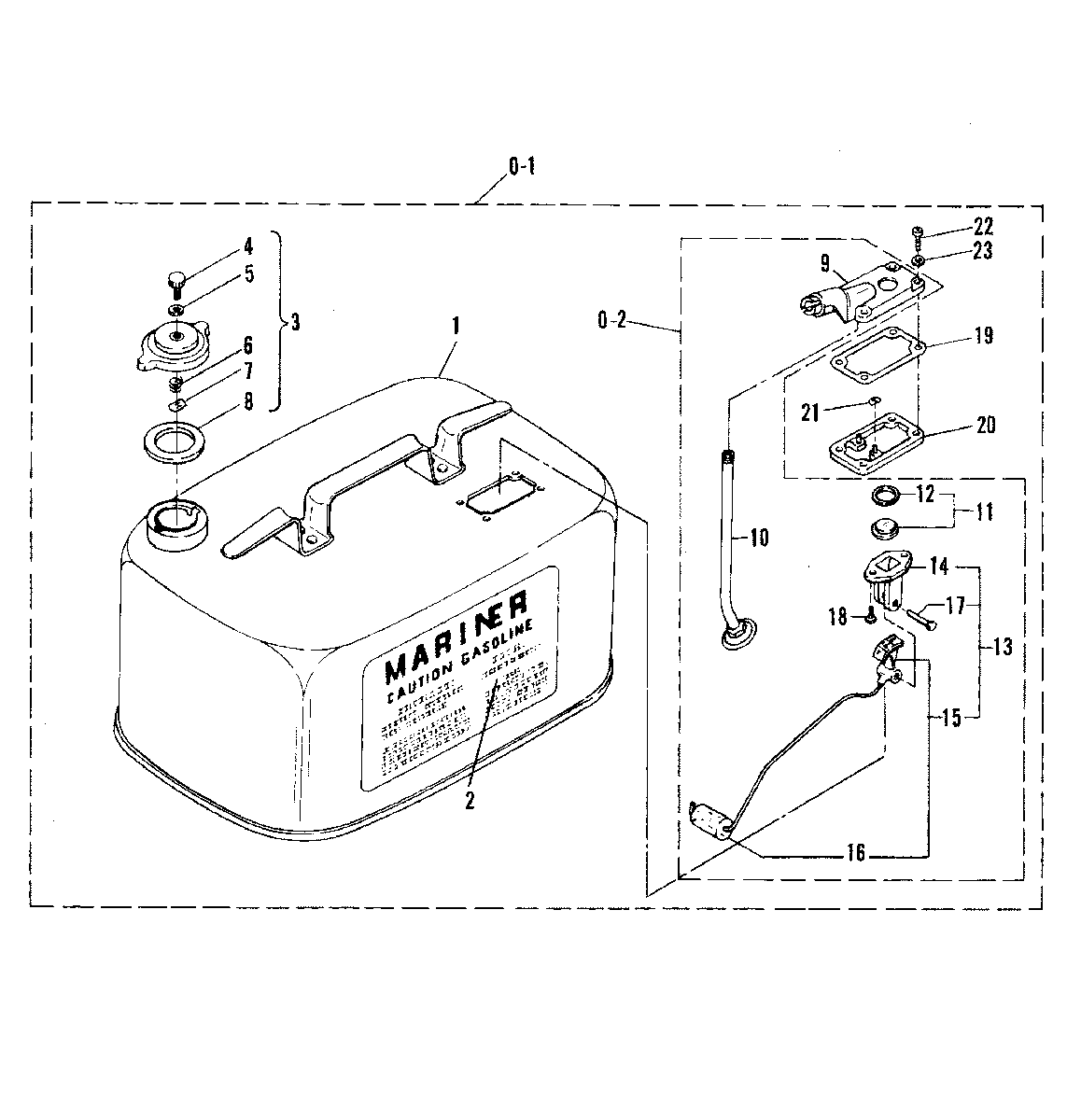

FUEL TANK ASSEMBLY для Mariner - 40B (CDI IGNITION/THRU PROP. EXHAUST) 676-B405251 AND UP (EL)

  • №
    Артикул
    Название
  • 0-1
    1259-812410A1 FUEL TANK ASS'Y
    FUEL TANK ASS'Y
  • 1
    1259-812410A1 FUEL TANK
    FUEL TANK
  • 2
    37-13921 DECAL,FUEL TANK
    DECAL,FUEL TANK
  • 3
    36-18962M FILLER CAP ASS'Y
    FILLER CAP ASS'Y
  • 4
    10-25575 SCREW,VENT FILLER CAP
    SCREW,VENT FILLER CAP
  • 5
    12-49221 WASHER,VENT SCREW
    WASHER,VENT SCREW
  • 6
    24-22227 SPRING,TENSION-VENT SCREW
    SPRING,TENSION-VENT SCREW
  • 7
    11-28587 NUT,SPEED-SPRING RETAINER
    NUT,SPEED-SPRING RETAINER
  • 8
    27-41065 GASKET,FILLER CAP TO FUEL TANK
    GASKET,FILLER CAP TO FUEL TANK
  • 0-2
    64841A1 COVER ASS'Y COMPLETE
    COVER ASS'Y COMPLETE
  • 9
    17792A1 COVER ASS'Y FUEL TANK
    COVER ASS'Y FUEL TANK
  • 10
    32-75239 TUBE ASS'Y
    TUBE ASS'Y
  • 11
    98542A1 LENS ASS'Y FUEL GAUGE
    LENS ASS'Y FUEL GAUGE
  • 12
    98542A1 GASKET,FUEL GAUGE LENS
    GASKET,FUEL GAUGE LENS
  • 13
    28897A2 FUEL FAUFE ASS'Y COMPLETE
    FUEL FAUFE ASS'Y COMPLETE
  • 14
    20430 RETAINER,FUEL GAUGE
    RETAINER,FUEL GAUGE
  • 15
    28897A1 INDICATOR AND FLOAT ASS'Y
    INDICATOR AND FLOAT ASS'Y
  • 16
    99274 FLOAT,FUEL GAUGE
    FLOAT,FUEL GAUGE
  • 17
    17-20426 RIVET,INDICATOR TO RETAINER
    RIVET,INDICATOR TO RETAINER
  • 18
    10-62568 SCREW,RETAINER TO FUEL TANK COVER
    SCREW,RETAINER TO FUEL TANK COVER
  • 19
    27-28862 GASKET,COVER ASS'Y TO FRAME
    GASKET,COVER ASS'Y TO FRAME
  • 20
    28860 FRAME,RETAINING FUEL TANK COVER
    FRAME,RETAINING FUEL TANK COVER
  • 21
    11-28903 FASTENER,RETAINING FRAME TO FUEL TANK
    FASTENER,RETAINING FRAME TO FUEL TANK
  • 22
    10-20411 SCREW,FUEL TANK COVER TO FUEL TANK
    SCREW,FUEL TANK COVER TO FUEL TANK
  • 23
    12-29070 WASHER,FUEL TANK COVER FASTENING SCRWE
    WASHER,FUEL TANK COVER FASTENING SCRWE
