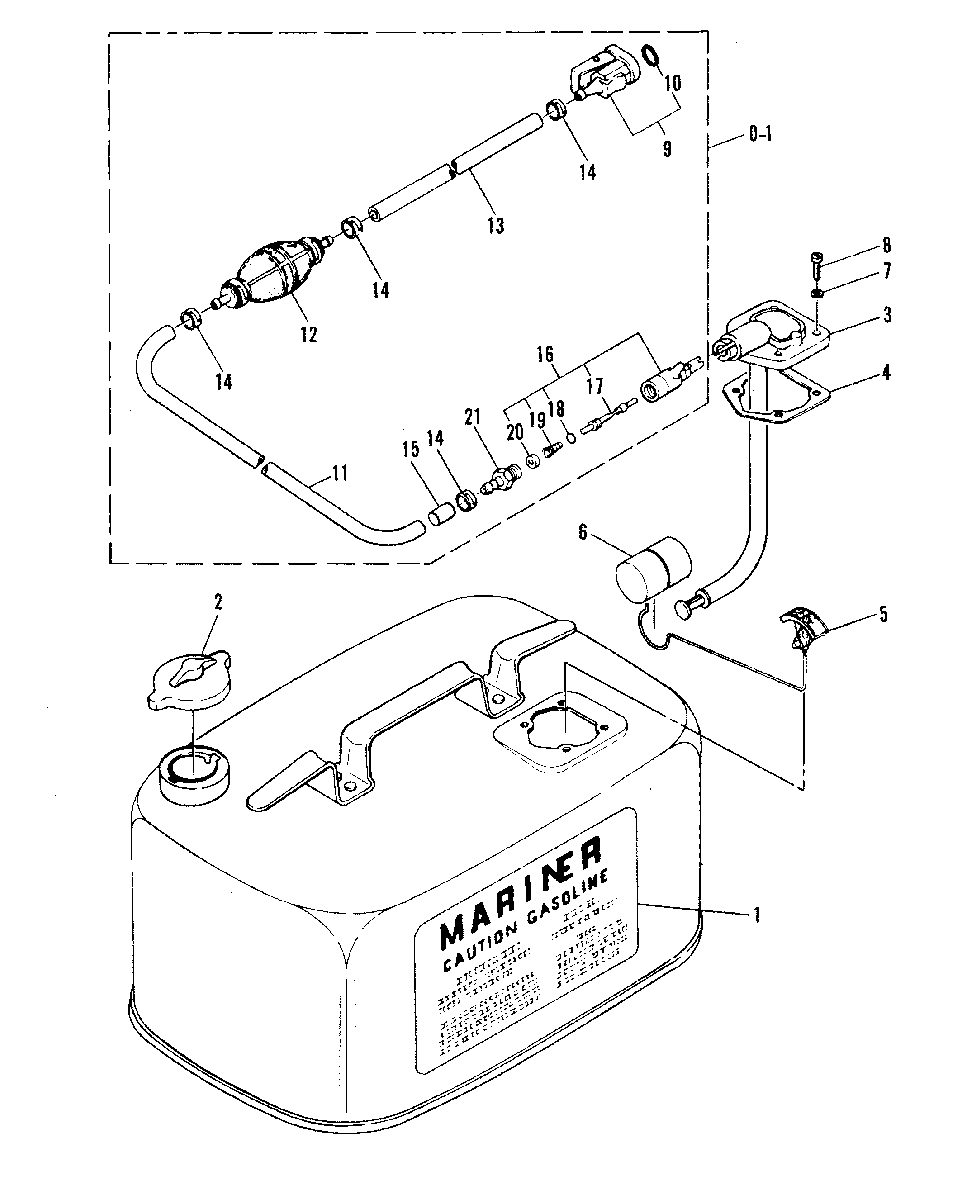

FUEL TANK AND FUEL LINE ASSEMBLY для Mariner - 40B (CDI IGNITION/THRU PROP. EXHAUST) 676-B102786 AND UP (E)

  • №
    Артикул
    Название
  • 1
    37-82984M DECAL,SIDE
    DECAL,SIDE
  • 2
    36-18962M FUEL TANK CAP
    FUEL TANK CAP
  • 3
    83618M FUEL METER
    FUEL METER
  • 4
    27-81320M GASKET,HOUSING TO TANK
    GASKET,HOUSING TO TANK
  • 5
    81318M INDICATOR,FUEL LEVEL
    INDICATOR,FUEL LEVEL
  • 6
    81319M FLOAT,INDICATOR
    FLOAT,INDICATOR
  • 7
    12-95501M WASHER,HOUSING SCREW
    WASHER,HOUSING SCREW
  • 8
    10-82496M SCREW
    SCREW
  • 0-1
    32-877681Q8 FUEL LINE ASS'Y
    FUEL LINE ASS'Y
  • 9
    22-14213Q FUEL CONNECTOR,ENGINE END
    FUEL CONNECTOR,ENGINE END
  • 10
    25-82789M O-RING
    O-RING
  • 11
    32-94727M HOSE,CONNECTOR HOUSING TO BULB
    HOSE,CONNECTOR HOUSING TO BULB
  • 12
    89396Q01 BULB,PRIMER
    BULB,PRIMER
  • 13
    32-94727M HOSE,BULB TO CONNECTOR
    HOSE,BULB TO CONNECTOR
  • 14
    54-16725M CLAMP,HOSE
    CLAMP,HOSE
  • 15
    23-81327M COLLAR
    COLLAR
  • 16
    30185Q3 BAYONET BODY ASS'Y
    BAYONET BODY ASS'Y
  • 17
    30185Q3 STEM,BAYONET BODY
    STEM,BAYONET BODY
  • 18
    25-16524 O-RING,BAYONET BODY STEM
    O-RING,BAYONET BODY STEM
  • 19
    24-30189 SPRING,BAYONET BODY STEM
    SPRING,BAYONET BODY STEM
  • 20
    30188 WASHER,CAP
    WASHER,CAP
  • 21
    22-63187 FITTING,FUEL LINE
    FITTING,FUEL LINE
