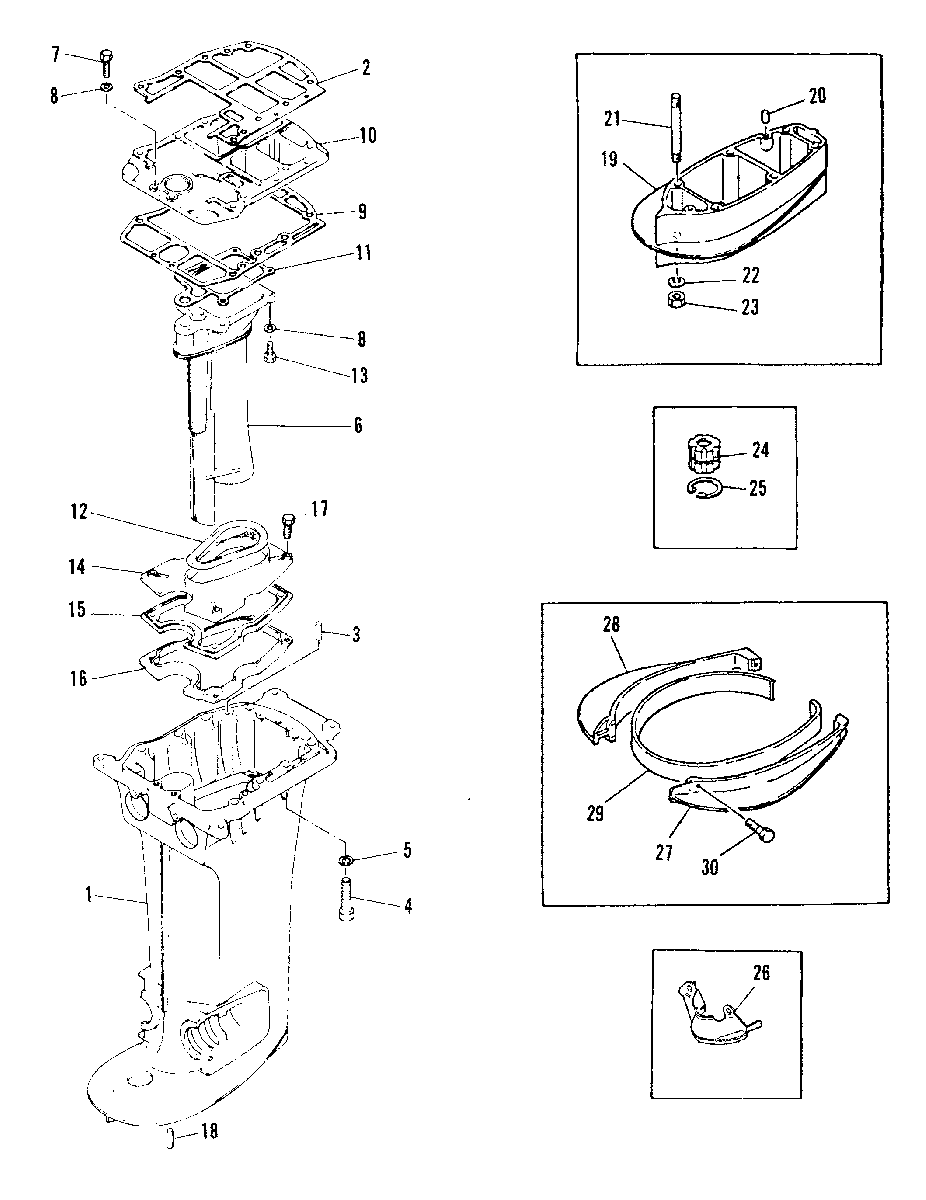

DRIVESHAFT HOUSING для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A403471 AND UP (EL)

  • №
    Артикул
    Название
  • 1
    1587-8441M DRIVESHAFT HOUSING (SHORT SHAFT)
    DRIVESHAFT HOUSING (SHORT SHAFT)
  • 1
    1587-8442M DRIVESHAFT HOUSING (LONG SHAFT)
    DRIVESHAFT HOUSING (LONG SHAFT)
  • 2
    27-11885 GASKET, DRIVESHAFT HOUSING
    GASKET, DRIVESHAFT HOUSING
  • 3
    17-83379M PIN, DOWEL
    PIN, DOWEL
  • 4
    10-97749M BOLT
    BOLT
  • 5
    13-82215M WASHER
    WASHER
  • 6
    815115M EXHAUST TUBE
    EXHAUST TUBE
  • 7
    10-82405M BOLT
    BOLT
  • 8
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 9
    27-19175 GASKET, UPPER HOUSING
    GASKET, UPPER HOUSING
  • 10
    97752M PLATE
    PLATE
  • 11
    27-83383M GASKET, EXHAUST MANIFOLD
    GASKET, EXHAUST MANIFOLD
  • 12
    83384M SEAL
    SEAL
  • 13
    10-84058M BOLT
    BOLT
  • 14
    814970M SEAL SUPPORT BRACKET
    SEAL SUPPORT BRACKET
  • 15
    83386M SEAL
    SEAL
  • 16
    814971M PLATE
    PLATE
  • 17
    10-82476M BOLT
    BOLT
  • 18
    17-82364M PIN, DOWEL
    PIN, DOWEL
  • 19
    83891M EXTENSION (SUPER ULTRA LONG SHAFT)
    OPTIONAL PARTS
    EXTENSION (SUPER ULTRA LONG SHAFT)
    OPTIONAL PARTS
  • 20
    17-82364M PIN, DOWEL (SUL)
    OPTIONAL PARTS
    PIN, DOWEL (SUL)
    OPTIONAL PARTS
  • 21
    16-94528M STUD
    OPTIONAL PARTS
    STUD
    OPTIONAL PARTS
  • 22
    13-82215M WASHER
    OPTIONAL PARTS
    WASHER
    OPTIONAL PARTS
  • 23
    11-82382M NUT
    OPTIONAL PARTS
    NUT
    OPTIONAL PARTS
  • 24
    23-83892M BUSHING (SUL)
    OPTIONAL PARTS
    BUSHING (SUL)
    OPTIONAL PARTS
  • 25
    53-83758M SNAP RING
    OPTIONAL PARTS
    SNAP RING
    OPTIONAL PARTS
  • 26
    92617M COVER (SHORT SHAFT)
    OPTIONAL PARTS
    COVER (SHORT SHAFT)
    OPTIONAL PARTS
  • 26
    92618M COVER (LONG AND SUPER ULTRA LONG SHAFTS)
    OPTIONAL PARTS
    COVER (LONG AND SUPER ULTRA LONG SHAFTS)
    OPTIONAL PARTS
  • 27
    93046M PLATE, SPLASH
    OPTIONAL PARTS
    PLATE, SPLASH
    OPTIONAL PARTS
  • 28
    93047M PLATE, SPLASH
    OPTIONAL PARTS
    PLATE, SPLASH
    OPTIONAL PARTS
  • 29
    26-93048M SEAL
    OPTIONAL PARTS
    SEAL
    OPTIONAL PARTS
  • 30
    10-82476M BOLT
    OPTIONAL PARTS
    BOLT
    OPTIONAL PARTS
