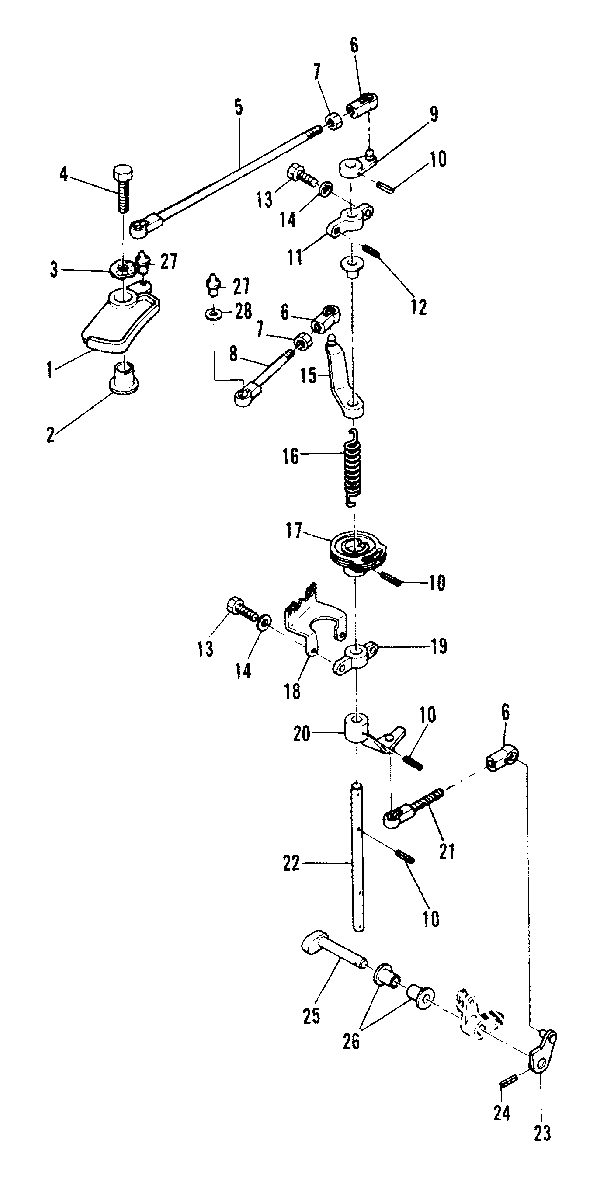

THROTTLE CONTROL для Mariner - 40A (ABOVE PROP. EXHAUST) 676-A00346 THRU 007735 (M)

  • №
    Артикул
    Название
  • 1
    83917M CAM
    SERIAL 00001991-09999999
    CAM
    SERIAL 00001991-09999999
  • 1
    83543M CAM
    SERIAL 00000000-00001999
    CAM
    SERIAL 00000000-00001999
  • 2
    12-84974M WASHER
    SERIAL 00001991-09999999
    WASHER
    SERIAL 00001991-09999999
  • 2
    23-81946M BUSHING
    SERIAL 00000000-00302259
    BUSHING
    SERIAL 00000000-00302259
  • 3
    13-81868M WASHER
    WASHER
  • 4
    10-81713M BOLT
    BOLT
  • 5
    83544M LINK, ROD
    SERIAL 00001991-09999999
    LINK, ROD
    SERIAL 00001991-09999999
  • 5
    83544M LINK, ROD
    SERIAL 0A000000-0S001990
    LINK, ROD
    SERIAL 0A000000-0S001990
  • 6
    16715M RETAINER, LINK ROD
    RETAINER, LINK ROD
  • 7
    11-82388M NUT
    NUT
  • 8
    83918M LEVER, MAGNETO CONTROL
    SERIAL 00001991-09999999
    LEVER, MAGNETO CONTROL
    SERIAL 00001991-09999999
  • 8
    811275M ROD, MAGNETO CONTROL
    SERIAL 0A000000-0S001999
    ROD, MAGNETO CONTROL
    SERIAL 0A000000-0S001999
  • 9
    94504M LEVER, MAGNETO CONTROL
    LEVER, MAGNETO CONTROL
  • 10
    17-82149M PIN, ROLL
    PIN, ROLL
  • 11
    83547M BRACKET
    BRACKET
  • 12
    17-82154M PIN, ROLL
    PIN, ROLL
  • 13
    10-84058M BOLT
    BOLT
  • 14
    12-82214M WASHER
    WASHER
  • 15
    83548M LEVER, MAGNETO CONTROL
    LEVER, MAGNETO CONTROL
  • 16
    24-83549M SPRING
    SPRING
  • 17
    83919M PULLEY
    SERIAL 00001991-09999999
    PULLEY
    SERIAL 00001991-09999999
  • 17
    83550M PULLEY
    SERIAL 0A000000-0S001990
    PULLEY
    SERIAL 0A000000-0S001990
  • 18
    83551M BRACKET
    BRACKET
  • 19
    83537M BRACKET
    BRACKET
  • 20
    83920M LEVER, MAGNETO CONTROL
    SERIAL 00001991-09999999
    LEVER, MAGNETO CONTROL
    SERIAL 00001991-09999999
  • 20
    83553M LEVER, MAGNETO CONTROL
    SERIAL 0A000000-0S001990
    LEVER, MAGNETO CONTROL
    SERIAL 0A000000-0S001990
  • 21
    83921M ROD
    SERIAL 00001991-09999999
    ROD
    SERIAL 00001991-09999999
  • 21
    83554M ROD
    SERIAL 0A000000-0S001999
    ROD
    SERIAL 0A000000-0S001999
  • 22
    83555M SHAFT, LINK CONNECTING
    SHAFT, LINK CONNECTING
  • 23
    83526M LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 24
    17-82158M PIN, ROLL
    PIN, ROLL
  • 25
    83527T SHAFT, THROTTLE CONTROL
    SHAFT, THROTTLE CONTROL
  • 26
    23-81946M BUSHING
    BUSHING
  • 27
    84305M LINK JOINT
    LINK JOINT
  • 28
    12-82209M WASHER
    WASHER
