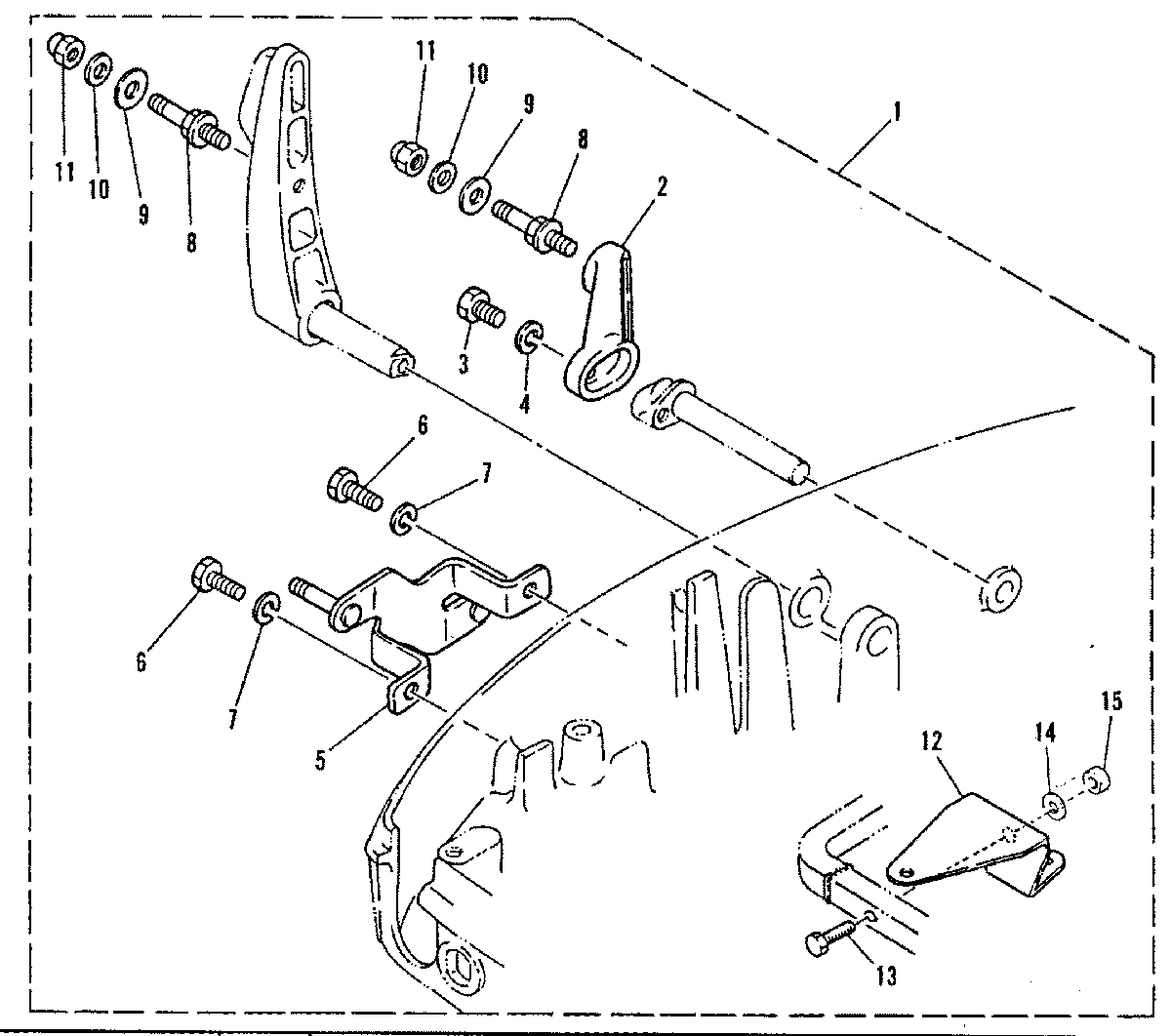

REMOTE CONTROL ATTACHING KIT для Mariner - 40 (TWIN CARB) (W/OIL INJECTION) 6E9-150001 AND UP (E)
-
№АртикулНазвание
-
1814484A1 ATTACHING KITATTACHING KIT
-
2814974M THROTTLE LEVERTHROTTLE LEVER
-
310-826957M BOLTBOLT
-
413-82212M LOCKWASHERLOCKWASHER
-
5814975M BRACKETBRACKET
-
610-826957M BOLTBOLT
-
713-82212M LOCKWASHERLOCKWASHER
-
8814976M HOOKHOOK
-
912-814977M WASHERWASHER
-
1012-814978M WASHERWASHER
-
1111-814979M NUTNUT
-
1283698M BRACKETBRACKET
-
1310-91636M BOLTBOLT
-
1412-82220M WASHERWASHER
-
1511-82395M NUTNUT
