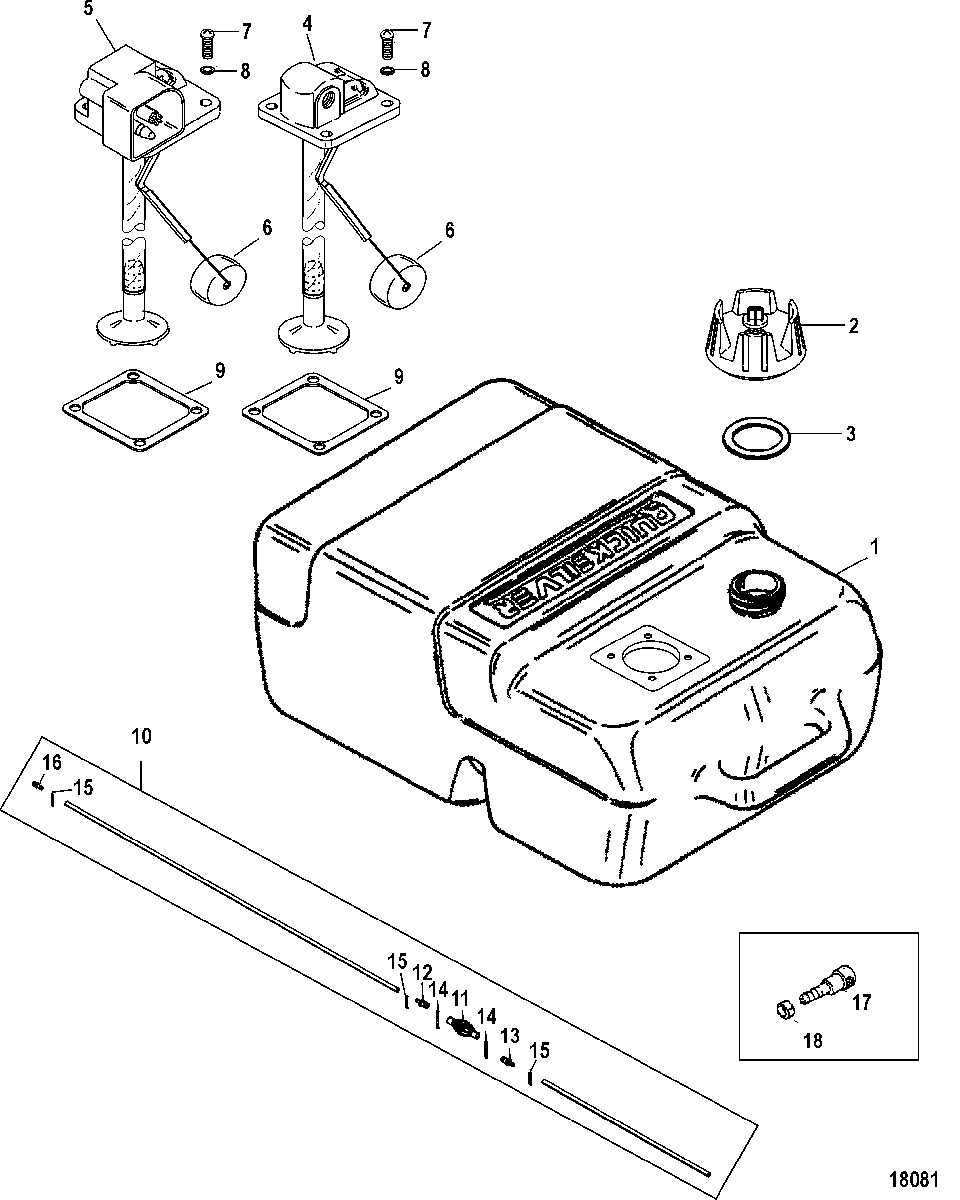

Fuel Tank(Plastic- 6.6 Gallon) для Mariner - 40 LIGHTNING XR (International) 0N056165 & Up

№

Артикул

Название
1

1259-859063A1 TANK ASSEMBLY, Fuel (Threaded Connection)

TANK ASSEMBLY, Fuel (Threaded Connection)

5 980 ₽
1

1259-859063A2 TANK ASSEMBLY, Fuel (Quick Connect)

TANK ASSEMBLY, Fuel (Quick Connect)

8 870 ₽
2

36-816976Q1 CAP ASSEMBLY, Fuel-Manual Vent

CAP ASSEMBLY, Fuel-Manual Vent

1 700 ₽
3

27-8169771 GASKET, Fuel Cap

GASKET, Fuel Cap

750 ₽
4

859059A2 PICK UP ASSEMBLY, Fuel (Threaded Connection)

PICK UP ASSEMBLY, Fuel (Threaded Connection)

3 470 ₽
5

8M0084089 PICK UP ASSEMBLY, Fuel (Quick Connect)

PICK UP ASSEMBLY, Fuel (Quick Connect)

4 580 ₽
6

859056 FLOAT

FLOAT

360 ₽
7

10-40056107 SCREW, (M5 x 16)

SCREW, (M5 x 16)

290 ₽
8

12-859080 WASHER

WASHER

100 ₽
9

27-859072 GASKET

GASKET

590 ₽
10

32-8M0044638 HOSE ASSEMBLY, Fuel
(2008 and Below)

HOSE ASSEMBLY, Fuel
(2008 and Below)

5 000 ₽
10

32-8M0044638 HOSE ASSEMBLY, Fuel
(2009 and Up)

HOSE ASSEMBLY, Fuel
(2009 and Up)

5 000 ₽
11

13330Q07 BULB ASSEMBLY, Primer

BULB ASSEMBLY, Primer

1 300 ₽
12

21-13331A3 CHECK VALVE ASSEMBLY

CHECK VALVE ASSEMBLY

810 ₽
13

21-13331A4 CHECK VALVE ASSEMBLY

CHECK VALVE ASSEMBLY

830 ₽
14

NSS NOT SOLD SEPARATE, Clamp

NOT SOLD SEPARATE, Clamp

0 ₽
15

NSS NOT SOLD SEPARATE, Clamp

NOT SOLD SEPARATE, Clamp

0 ₽
16

22-89771Q2 CONNECTOR, (.250-18)

CONNECTOR, (.250-18)

780 ₽
17

22-8M0120628 CONNECTOR, Fuel

CONNECTOR, Fuel

2 450 ₽
18

54-853798 CLAMP

CLAMP

270 ₽
