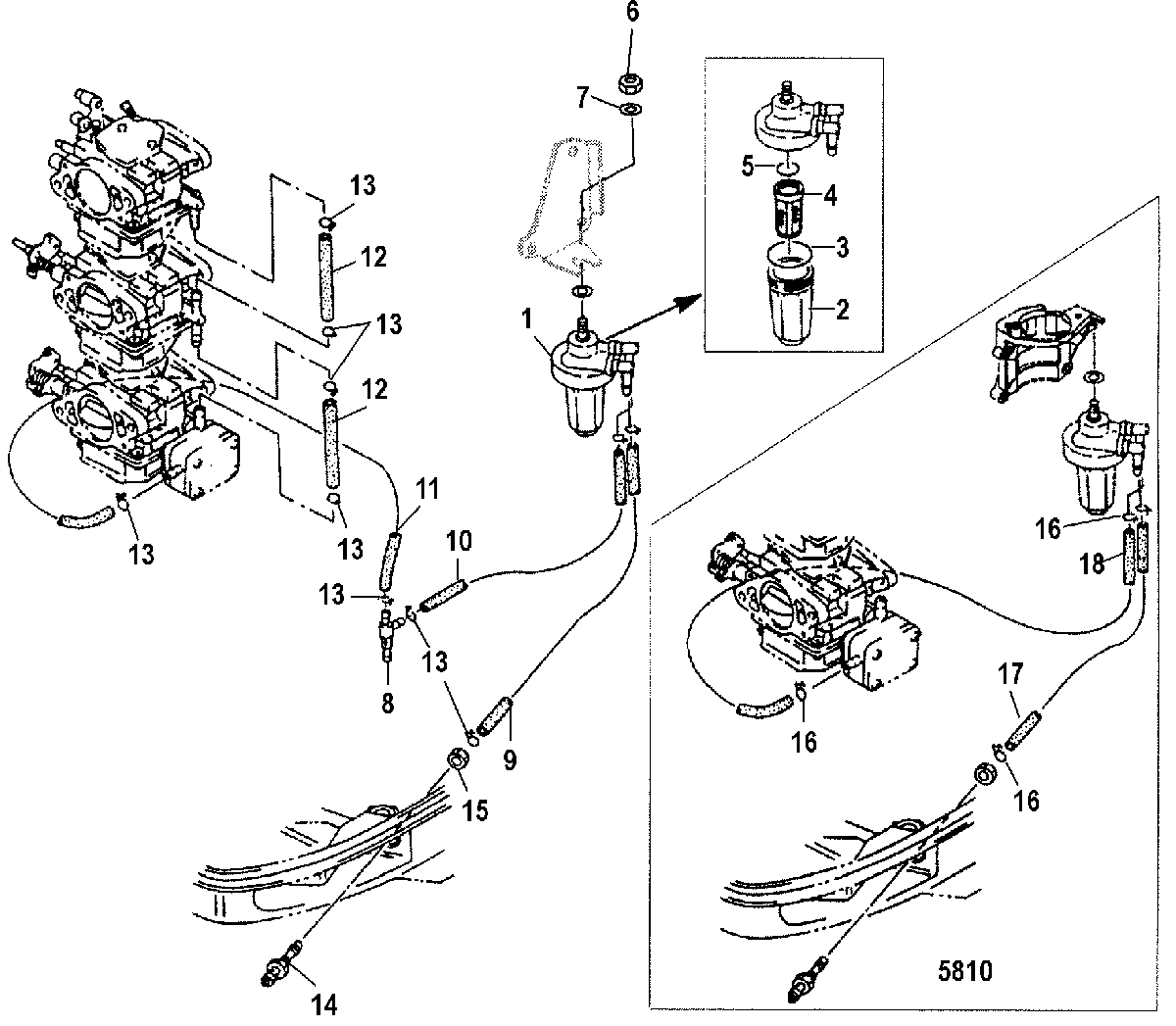

Fuel Line для Mariner - 40 LIGHTNING XR (International) 0N000513 THRU 0N056164

  • №
    Артикул
    Название
  • 1
    35-8M0088825 FILTER ASSEMBLY, Fuel
    FILTER ASSEMBLY, Fuel
  • 2
    8537351 CUP
    CUP
  • 3
    25-851815 O-RING
    O-RING
  • 4
    35-8537331 FILTER
    FILTER
  • 5
    25-8518151 O-RING
    O-RING
  • 6
    11-400213 NUT
    NUT
  • 7
    12-16192 WASHER
    WASHER
  • 8
    21-8518121 CHECK VALVE (Oil Injection)
    CHECK VALVE (Oil Injection)
  • 9
    32-8M0057113 LINE, Fuel (1000 mm) (Oil Injection)
    LINE, Fuel (1000 mm) (Oil Injection)
  • 10
    32-8M0057113 LINE, Fuel (1000 mm) (Oil Injection)
    LINE, Fuel (1000 mm) (Oil Injection)
  • 11
    32-8M0057113 LINE, Fuel (1000 mm) (Oil Injection)
    LINE, Fuel (1000 mm) (Oil Injection)
  • 12
    32-8M0057113 HOSE, (80 mm) (Oil Injection)
    HOSE, (80 mm) (Oil Injection)
  • 13
    54-95395 CLIP, Stainless Steel (Oil Injection)
    CLIP, Stainless Steel (Oil Injection)
  • 14
    22-853736 CONNECTOR, Fuel
    CONNECTOR, Fuel
  • 15
    11-17480 NUT
    NUT
  • 16
    54-95395 CLIP, Stainless Steel (Non-Oil Injection)
    CLIP, Stainless Steel (Non-Oil Injection)
  • 17
    32-8M0057113 LINE, Fuel (1000 mm) (Non-Oil Injection)
    LINE, Fuel (1000 mm) (Non-Oil Injection)
  • 18
    32-8M0057113 LINE, Fuel (1000 mm) (Non-Oil Injection)
    LINE, Fuel (1000 mm) (Non-Oil Injection)
  • -
    27-8M0081614 GASKET SET, Powerhead
    SN# 0N016161 & Below
    GASKET SET, Powerhead
    SN# 0N016161 & Below
  • -
    27-8M0081614 GASKET SET, Powerhead
    SN# 0N016162 & Up
    GASKET SET, Powerhead
    SN# 0N016162 & Up
