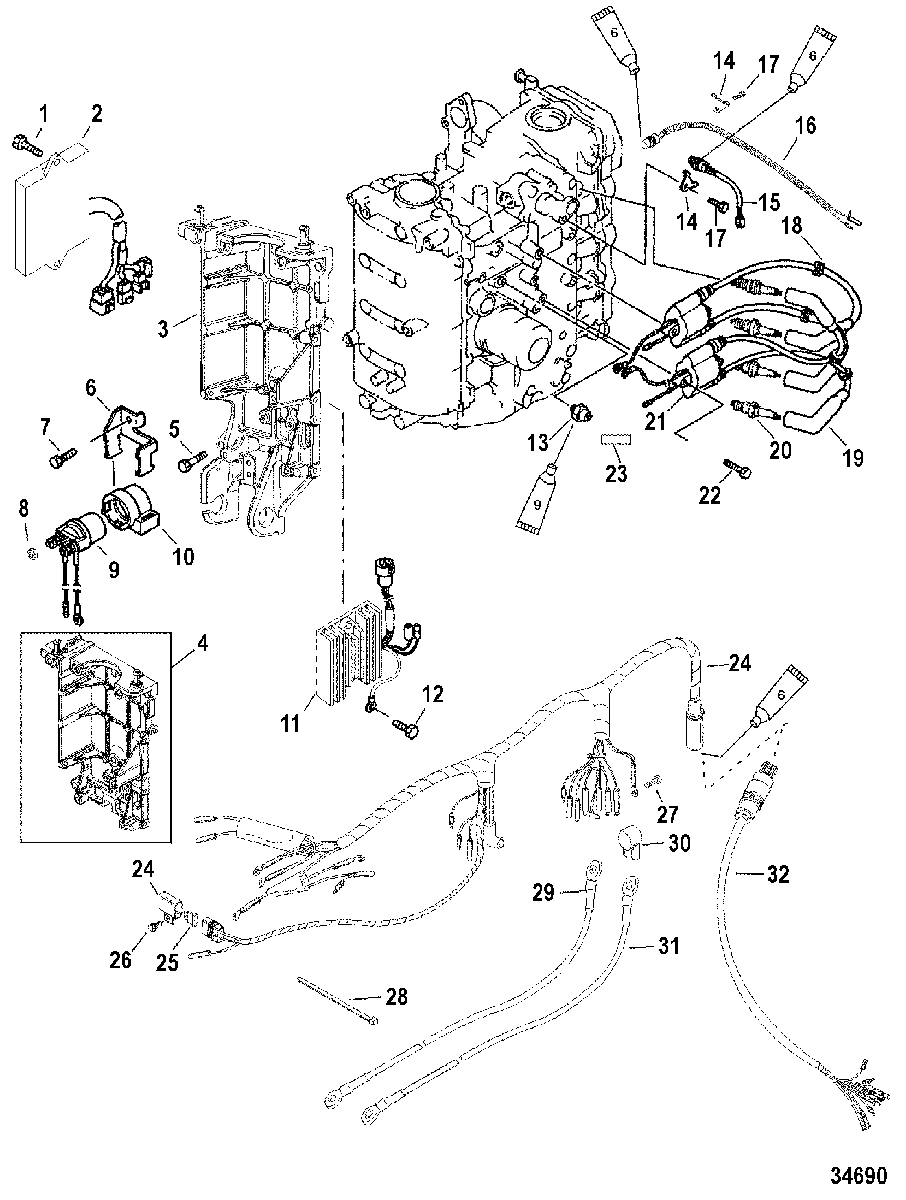

Electrical Components для Mariner - 40 ITALY (4-STROKE) 0G760300 THRU 0T178499

  • №
    Артикул
    Название
  • 1
    10-82684425 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 2
    8250981 CONTROLLER ASSEMBLY, Electric
    40/50
    CONTROLLER ASSEMBLY, Electric
    40/50
  • 2
    8250983 CONTROLLER ASSEMBLY, Electric
    45 Bodensee
    CONTROLLER ASSEMBLY, Electric
    45 Bodensee
  • 3
    8347912 BRACKET
    Non-Bigfoot SN# 0G960500 & Up
    BRACKET
    Non-Bigfoot SN# 0G960500 & Up
  • 3
    8347912 BRACKET
    Non-Bigfoot SN# 0G960499 & Below
    BRACKET
    Non-Bigfoot SN# 0G960499 & Below
  • 4
    8347913 BRACKET
    Bigfoot SN# 0G960500 & Up
    BRACKET
    Bigfoot SN# 0G960500 & Up
  • 4
    8347913 BRACKET
    Bigfoot SN# 0G960499 & Below
    BRACKET
    Bigfoot SN# 0G960499 & Below
  • 5
    10-81893435 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 6
    825074 SOLENOID PLATE
    SOLENOID PLATE
  • 7
    10-8248324 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 8
    11-401386 NUT, (M6)
    NUT, (M6)
  • 9
    89-8M0098898 SOLENOID
    SOLENOID
  • 10
    8M0010250 BRACKET
    BRACKET
  • 11
    825076 REGULATOR, Voltage
    REGULATOR, Voltage
  • 12
    10-8248326 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 13
    87-8M0098207 PRESSURE SWITCH
    PRESSURE SWITCH
  • 14
    815004M PLATE
    PLATE
  • 15
    87-8280391 TEMPERATURE SWITCH
    TEMPERATURE SWITCH
  • 16
    87-857122 TEMPERATURE SWITCH
    TEMPERATURE SWITCH
  • 17
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    SCREW, (M6 x 13) Stainless Steel
  • 18
    25-82069M GROMMET
    GROMMET
  • 19
    84-825102A1 HIGH TENSION LEAD
    HIGH TENSION LEAD
  • 20
    33-827858Q SPARK PLUG, NGK-DPR6EA-9
    SPARK PLUG, NGK-DPR6EA-9
  • 21
    339-825101T COIL ASSEMBLY, Ignition, Includes Lead Wires
    COIL ASSEMBLY, Ignition, Includes Lead Wires
  • 22
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 23
    NSS NOT SOLD SEPARATE, Decal-Coil Identification
    NOT SOLD SEPARATE, Decal-Coil Identification
  • 24
    84-827350A3 HARNESS ASSEMBLY, Engine Wiring
    HARNESS ASSEMBLY, Engine Wiring
  • 25
    88-812619 FUSE, Yellow - 20 Ampere
    FUSE, Yellow - 20 Ampere
  • 26
    10-82104510 SCREW, (M5 x 10)
    Non-Bigfoot
    SCREW, (M5 x 10)
    Non-Bigfoot
  • 26
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    Bigfoot
    SCREW, (M6 x 13) Stainless Steel
    Bigfoot
  • 27
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    SCREW, (M6 x 13) Stainless Steel
  • 28
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 29
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    CABLE ASSEMBLY, Battery - Negative
  • 30
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 31
    84-88439A9 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 32
    84-86232A4 HARNESS ASSEMBLY, Auxiliary
    Handle
    HARNESS ASSEMBLY, Auxiliary
    Handle
  • -
    61-822775T97 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    61-822775T98 POWERHEAD ASSEMBLY
    Bigfoot
    POWERHEAD ASSEMBLY
    Bigfoot
