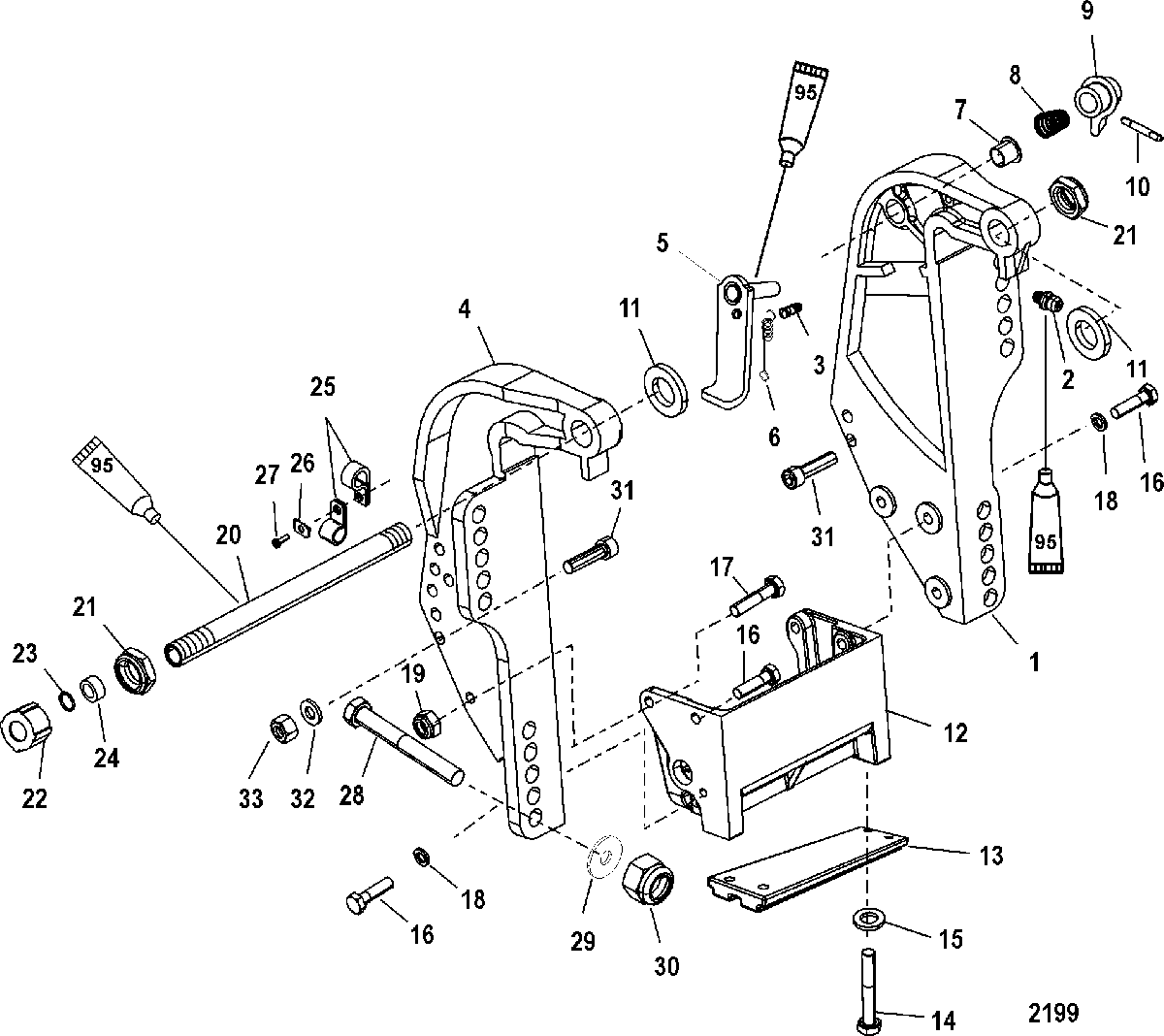

Transom Bracket для Mariner - 40 EFI (4 CYL.)(4-STROKE) 1C050252 & Up

  • №
    Артикул
    Название
  • 1
    3418-822866T04 BRACKET, Transom - Port
    BRACKET, Transom - Port
  • 2
    22-98727 FITTING, Grease
    FITTING, Grease
  • 3
    17-99604 PIN, Groove
    PIN, Groove
  • 4
    3418-822865T05 BRACKET, Transom - Starboard
    BRACKET, Transom - Starboard
  • 5
    893704T01 LEVER, Tilt Lock
    LEVER, Tilt Lock
  • 6
    24-99622 SPRING
    SPRING
  • 7
    23-65830 NYLINER
    NYLINER
  • 8
    24-812708 SPRING
    SPRING
  • 9
    8M0007470 KNOB
    KNOB
  • 10
    17-8M0021914 PIN , (.125 x 30 mm)
    PIN , (.125 x 30 mm)
  • 11
    12-19619 WASHER
    WASHER
  • 12
    18486A08 BRACKET KIT, Anchor
    BRACKET KIT, Anchor
  • 13
    97-818298Q1 ANODE KIT
    ANODE KIT
  • 14
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 16
    10-85594030 SCREW, (M8 x 30)
    Included with Anchor Bracket Kit
    SCREW, (M8 x 30)
    Included with Anchor Bracket Kit
  • 17
    10-8M0000586 SCREW, (M8 x 35)
    Included with Anchor Bracket Kit
    SCREW, (M8 x 35)
    Included with Anchor Bracket Kit
  • 18
    12-843108 WASHER, (.330 x .560 x .060) Stainless Steel
    Included with Anchor Bracket Kit
    WASHER, (.330 x .560 x .060) Stainless Steel
    Included with Anchor Bracket Kit
  • 19
    11-401388 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 20
    8M0041938 TILT TUBE
    TILT TUBE
  • 21
    11-858869 NUT, (.875-14)
    NUT, (.875-14)
  • 22
    19624A1 SEAL KIT
    Non-Handle
    SEAL KIT
    Non-Handle
  • 23
    25-29619 O-RING, (.583 x .103)
    Non-Handle
    O-RING, (.583 x .103)
    Non-Handle
  • 24
    23-78861 SPACER
    Non-Handle
    SPACER
    Non-Handle
  • 25
    54-22740 CLIP
    CLIP
  • 26
    8M0084613 C WASHER
    C WASHER
  • 27
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 28
    10-814259 SCREW, (.500-20 x 4.00)
    SCREW, (.500-20 x 4.00)
  • 29
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 30
    11-82671117 NUT, (.500-20)
    NUT, (.500-20)
  • 31
    10-4009040 SCREW, (M10 x 40) Stainless Steel
    SCREW, (M10 x 40) Stainless Steel
  • 32
    12-4002319 WASHER
    WASHER
  • 33
    11-40140 NUT, (M10)
    NUT, (M10)
