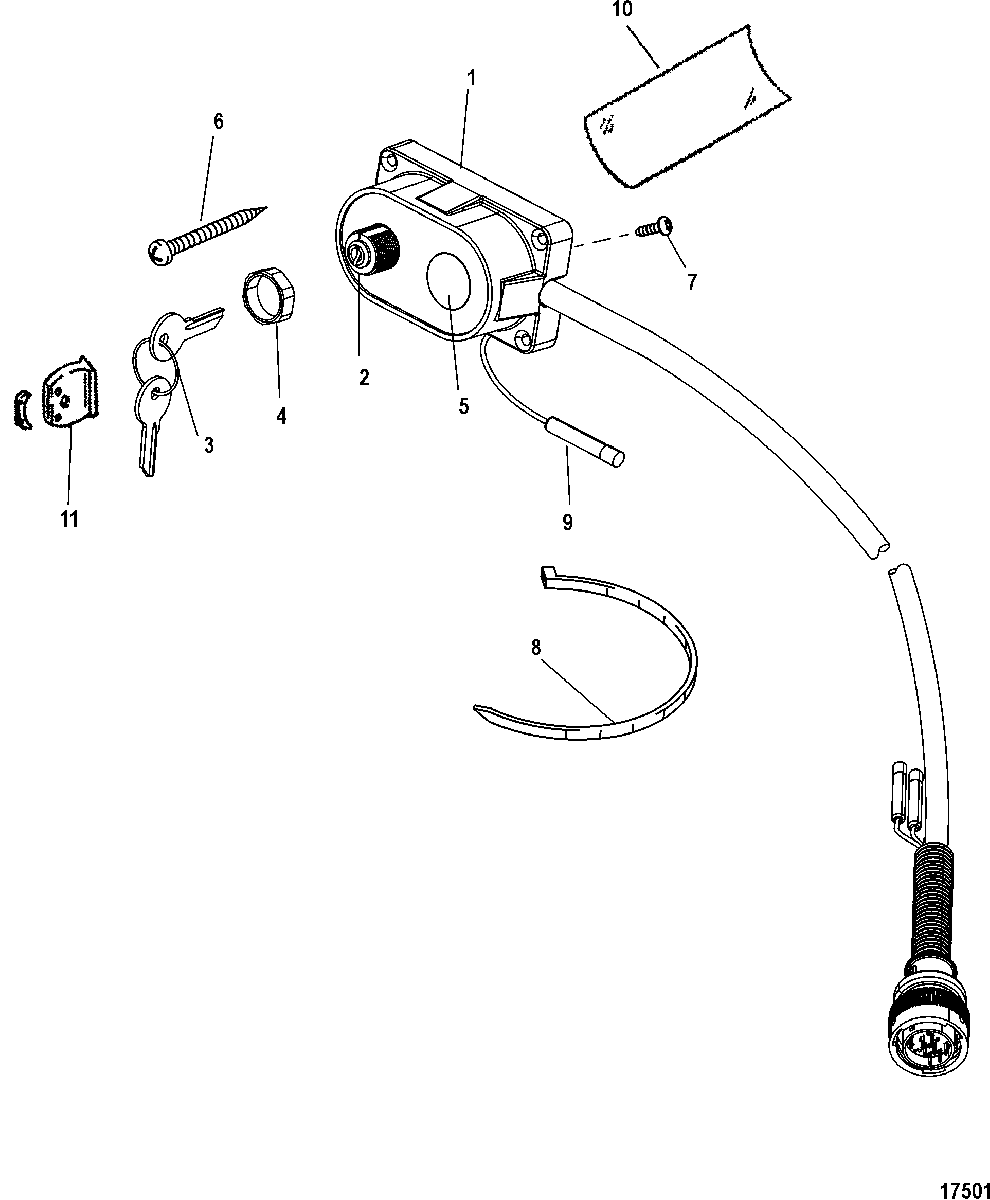

Key, Choke and Horn Kit, 15000A14 для Mariner - 40 EFI (4 CYL.)(4-STROKE) 0P515897 & Up
-
№АртикулНазвание
-
-15000A14 KEY SWITCH KIT, Remote IgnitionKEY SWITCH KIT, Remote Ignition
-
1NSS NOT SOLD SEPARATE, HousingNOT SOLD SEPARATE, Housing
-
2NSS NOT SOLD SEPARATE, Key Switch Kit
Uses 89491 Series KeysNOT SOLD SEPARATE, Key Switch Kit
Uses 89491 Series Keys -
NS86-830865 CONNECTORCONNECTOR
-
389491_ KEY, Switch Ignition (1A thru 2F Series)
See Key Chart 89491 SeriesKEY, Switch Ignition (1A thru 2F Series)
See Key Chart 89491 Series -
411-879755 NUT, Special - Black NylonNUT, Special - Black Nylon
-
516564A1 HORN ASSEMBLY, WarningHORN ASSEMBLY, Warning
-
610-47994 SCREW, (#10 x 1.50), TopSCREW, (#10 x 1.50), Top
-
710-62568 SCREW, (#10-16 x .375), HousingSCREW, (#10-16 x .375), Housing
-
854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
913541 PLUG, MalePLUG, Male
-
1015097 SHEET, NeopreneSHEET, Neoprene
-
1190468A1 COVER ASSEMBLY, KeyCOVER ASSEMBLY, Key
