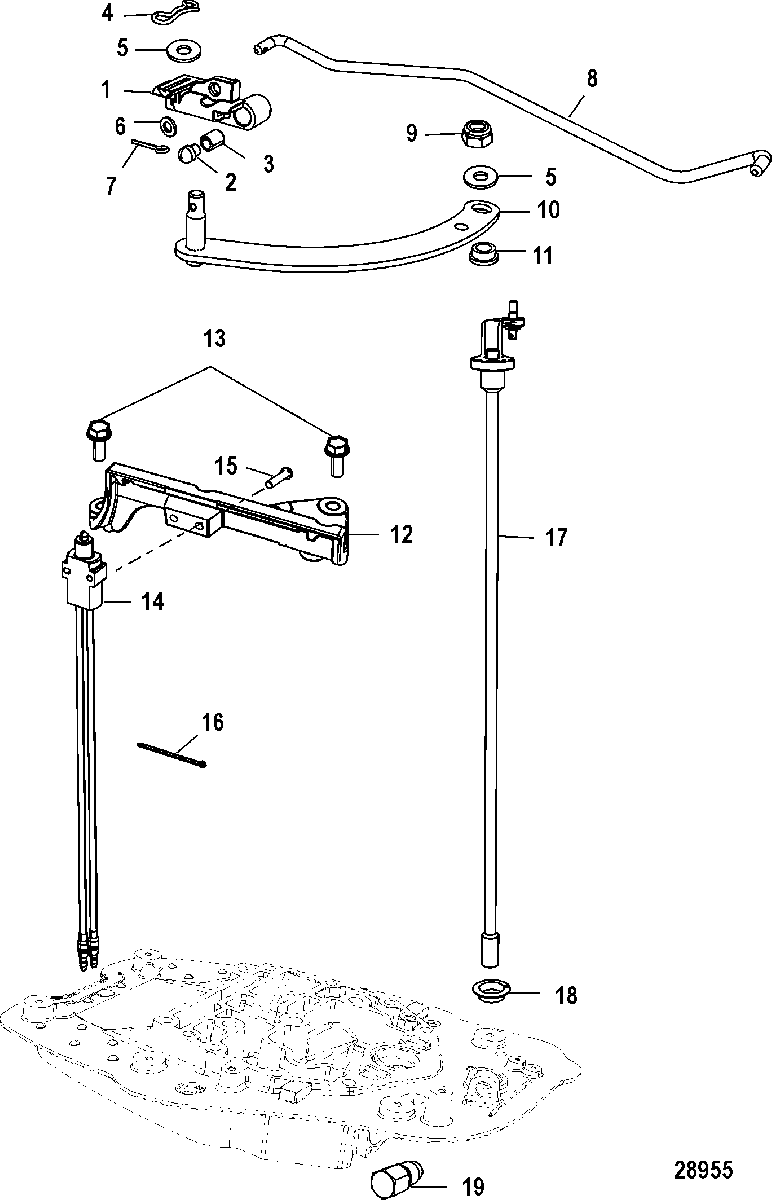

Shift Linkage, Tiller, Design-I-Shift Detent для Mariner - 40 EFI (3 CYL.)(4-STROKE) 1C043417 & Up
-
№АртикулНазвание
-
18M0091388 SLIDE, ShiftSLIDE, Shift
-
28M0091388 DETENT/SPRING KITDETENT/SPRING KIT
-
3NSS NOT SOLD SEPARATE, Spring-Compression, DetentNOT SOLD SEPARATE, Spring-Compression, Detent
-
48M0001157 PIN, Bow Tie ClipPIN, Bow Tie Clip
-
512-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
718-210711 COTTER PINCOTTER PIN
-
88M0005914 ROD, ShiftROD, Shift
-
911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
108M0007151 LINK, ShiftLINK, Shift
-
1123-892263 BUSHINGBUSHING
-
128M0005420 BRACKET, Shift LinkBRACKET, Shift Link
-
1310-1993720 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
1487-8M0052940 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1510-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
1656762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
-
178M0091612 SHIFT SHAFT, Upper - LongSHIFT SHAFT, Upper - Long
-
178M0091611 SHIFT SHAFT, Upper - ShortSHIFT SHAFT, Upper - Short
-
1823-74647 NYLINERNYLINER
-
19888823001 SHIFT DETENT ASSEMBLYSHIFT DETENT ASSEMBLY
-
-880093A03 TILLER HANDLE KIT, Remote Control to Tiller HandleTILLER HANDLE KIT, Remote Control to Tiller Handle
