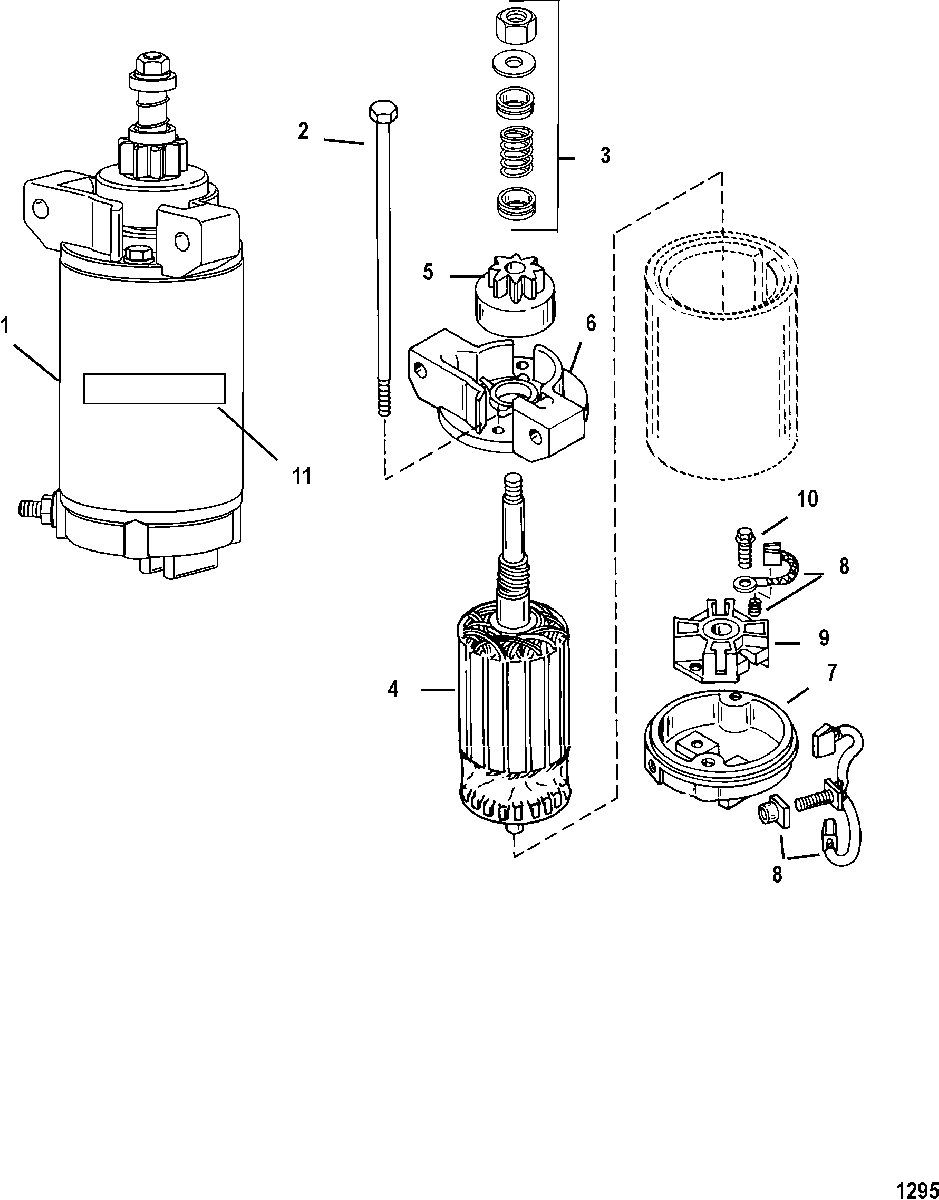

Starter Motor(Serial Number 1B249767 and Below) для Mariner - 40 EFI (3 CYL.)(4-STROKE) 1B227000 THRU 1B344398
-
№АртикулНазвание
-
150-893887T STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
210-965661 THRU BOLTTHRU BOLT
-
3891752 DRIVE KITDRIVE KIT
-
4891753001 ARMATUREARMATURE
-
550-893886T PINIONPINION
-
68236392 DRIVE CAPDRIVE CAP
-
78119011 CAP, CommutatorCAP, Commutator
-
8898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
9898265014 HOLDERHOLDER
-
10F15158 SCREWSCREW
-
1137-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
