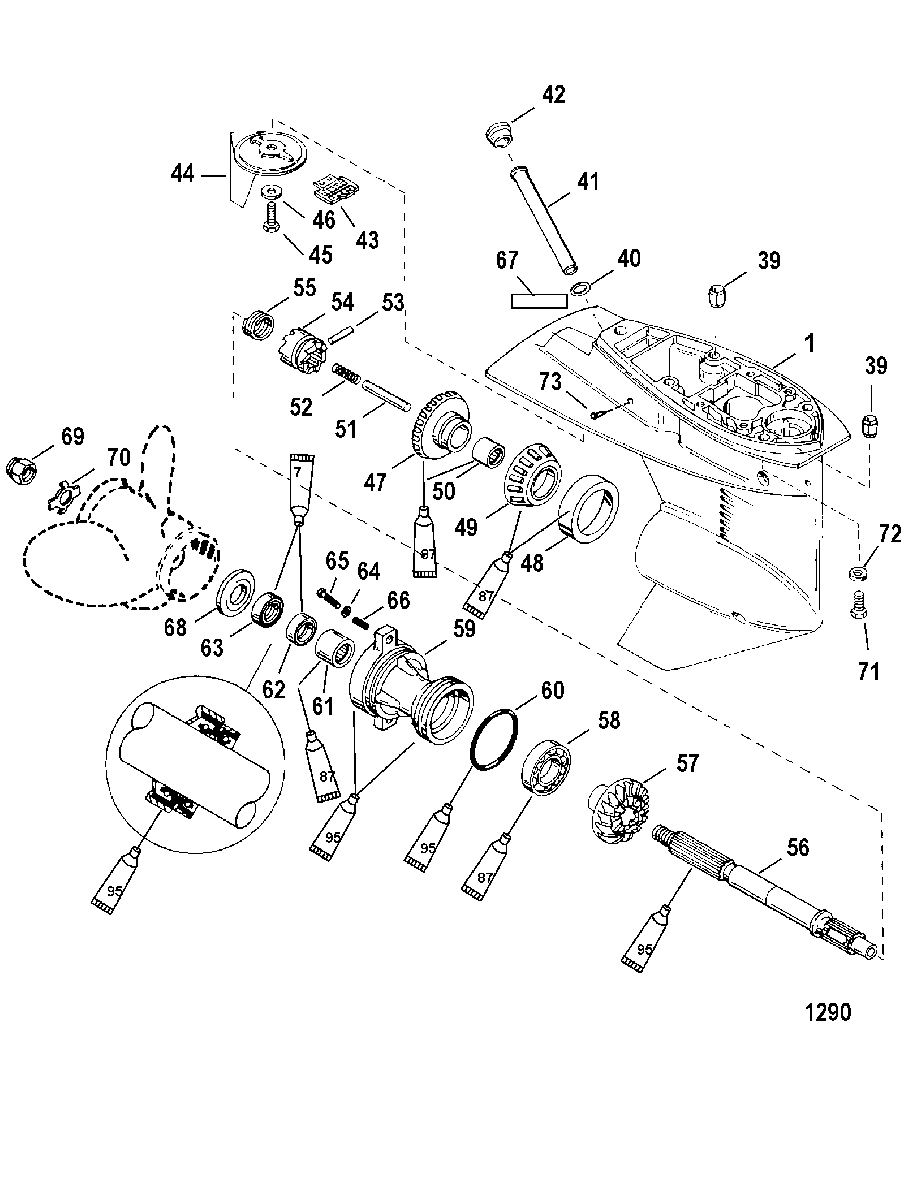

Gear Housing, Propeller Shaft - 2:1 Gear Ratio для Mariner - 40 EFI (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999

  • №
    Артикул
    Название
  • -
    1682-821306T54 GEAR HOUSING ASSEMBLY, (3.44 Inch/87.37 mm Torpedo Diameter) Complete
    (SHORT)
    GEAR HOUSING ASSEMBLY, (3.44 Inch/87.37 mm Torpedo Diameter) Complete
    (SHORT)
  • -
    1682-821306T17 GEAR HOUSING ASSEMBLY, Complete
    (LONG)
    GEAR HOUSING ASSEMBLY, Complete
    (LONG)
  • 1
    1682-821306T12 GEAR HOUSING ASSEMBLY, Basic
    (BASIC)
    GEAR HOUSING ASSEMBLY, Basic
    (BASIC)
  • 39
    17-821327 PIN, Dowel
    PIN, Dowel
  • 40
    27-823942 GASKET
    GASKET
  • 41
    32-8M0026108 TUBE
    TUBE
  • 42
    19-824928001 PLUG, Rubber
    SN# USA-0T979999/BEL-0P325499 & Below
    PLUG, Rubber
    SN# USA-0T979999/BEL-0P325499 & Below
  • 42
    19-824928001 PLUG, Rubber
    SN# USA-0T980000/BEL-0P325500 & Up
    PLUG, Rubber
    SN# USA-0T980000/BEL-0P325500 & Up
  • 43
    821829 SCREEN
    SCREEN
  • 44
    822157T2 TRIM TAB
    TRIM TAB
  • 45
    10-82497020 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 46
    12-72397 WASHER
    WASHER
  • 47
    43-821315T1 GEAR ASSEMBLY, Forward - 26 Teeth (26 TEETH)
    GEAR ASSEMBLY, Forward - 26 Teeth (26 TEETH)
  • 48
    31-8M0103470 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 49
    NSS NOT SOLD SEPARATE, Cup
    NOT SOLD SEPARATE, Cup
  • 50
    31-41326 BEARING, Roller
    BEARING, Roller
  • 51
    821578 FOLLOWER, Cam
    FOLLOWER, Cam
  • 52
    24-8261991 SPRING
    SPRING
  • 53
    17-8M0020999 PIN
    PIN
  • 54
    52-821314T CLUTCH
    CLUTCH
  • 55
    24-38114 SPRING
    SPRING
  • 56
    44-8M0140441 PROPELLER SHAFT
    PROPELLER SHAFT
  • 57
    43-821312T1 GEAR, Reverse - 26 Teeth (26 TEETH)
    GEAR, Reverse - 26 Teeth (26 TEETH)
  • 58
    30-20839T BEARING, Ball
    BEARING, Ball
  • 59
    19291A3 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 60
    25-815460 O-RING
    O-RING
  • 61
    31-21700 BEARING, Needle
    BEARING, Needle
  • 62
    26-69188 SEAL, Oil
    SEAL, Oil
  • 63
    26-69189 SEAL, Oil
    SEAL, Oil
  • 64
    12-855941 WASHER, (.323 x .590 x .112) Stainless Steel
    WASHER, (.323 x .590 x .112) Stainless Steel
  • 65
    10-85594030 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 66
    8227731 INSERT, Threaded
    INSERT, Threaded
  • 67
    NSS NOT SOLD SEPARATE, Decal 2:1
    NOT SOLD SEPARATE, Decal 2:1
  • 68
    73345A1 THRUST HUB
    THRUST HUB
  • 69
    11-69578Q1 PROP NUT KIT
    PROP NUT KIT
  • 70
    14-76281 TAB WASHER
    TAB WASHER
  • 71
    10-4000380 SCREW, (M10 x 45)
    SCREW, (M10 x 45)
  • 72
    12-856774 WASHER, (.406 x .750 x .105) Stainless Steel
    WASHER, (.406 x .750 x .105) Stainless Steel
  • 73
    19-95925 PLUG
    PLUG
  • -
    823547A03 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
