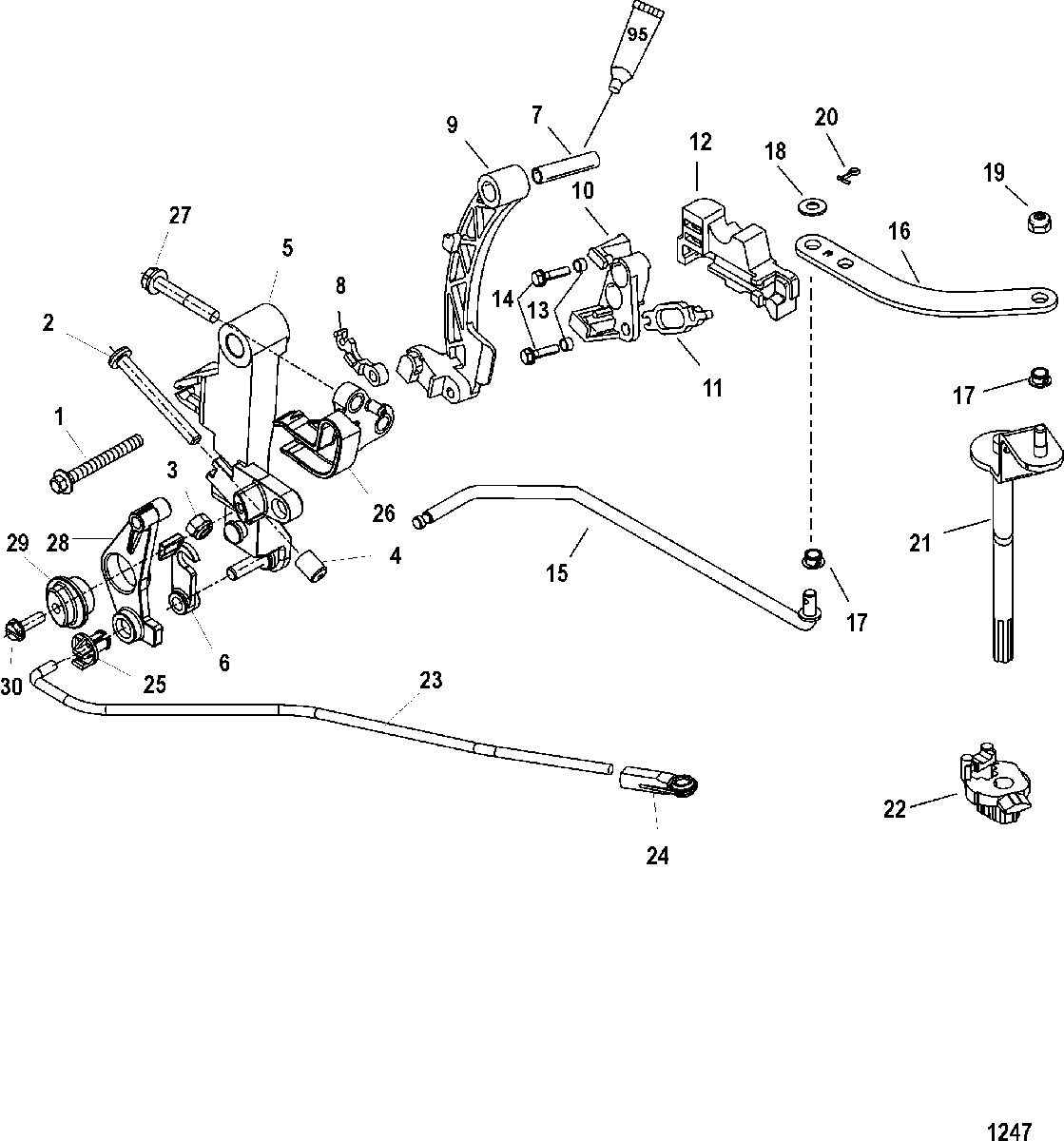

Linkage(Remote)(Long) для Mariner - 40 EFI (3 CYL.)(4-STROKE) 0P401000 THRU 0P515896
-
№АртикулНазвание
-
110-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
210-8147763 SCREW, (M6 x 60)SCREW, (M6 x 60)
-
311-401196 NUT, (M6)NUT, (M6)
-
442942 CAPCAP
-
5822682A4 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
6883160 RETAINERRETAINER
-
723-825078 BUSHINGBUSHING
-
8822459 RETAINERRETAINER
-
98259571 LEVER, ShiftLEVER, Shift
-
10827706A4 BRACKETBRACKET
-
1198889 LATCHLATCH
-
12NSS NOT SOLD SEPARATE, Guide-Shirt RodNOT SOLD SEPARATE, Guide-Shirt Rod
-
1323-15885 SLEEVESLEEVE
-
1410-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
15893777 ROD, ShiftROD, Shift
-
16893769A01 LINK KIT, ShiftLINK KIT, Shift
-
1723-48475 BUSHINGBUSHING
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2018-210711 COTTER PINCOTTER PIN
-
21850166T06 LEVER ASSEMBLY, Shift ShaftLEVER ASSEMBLY, Shift Shaft
-
2223-850165 BUSHINGBUSHING
-
23893780A01 LINK ASSEMBLY, ThrottleLINK ASSEMBLY, Throttle
-
248M0084742 SOCKETSOCKET
-
2523-932481 BUSHINGBUSHING
-
26879865 CAM, ThrottleCAM, Throttle
-
2710-8248329 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
28883006A1 ARM ASSEMBLY, ThrottleARM ASSEMBLY, Throttle
-
2923-883005 BUSHINGBUSHING
-
3010-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
