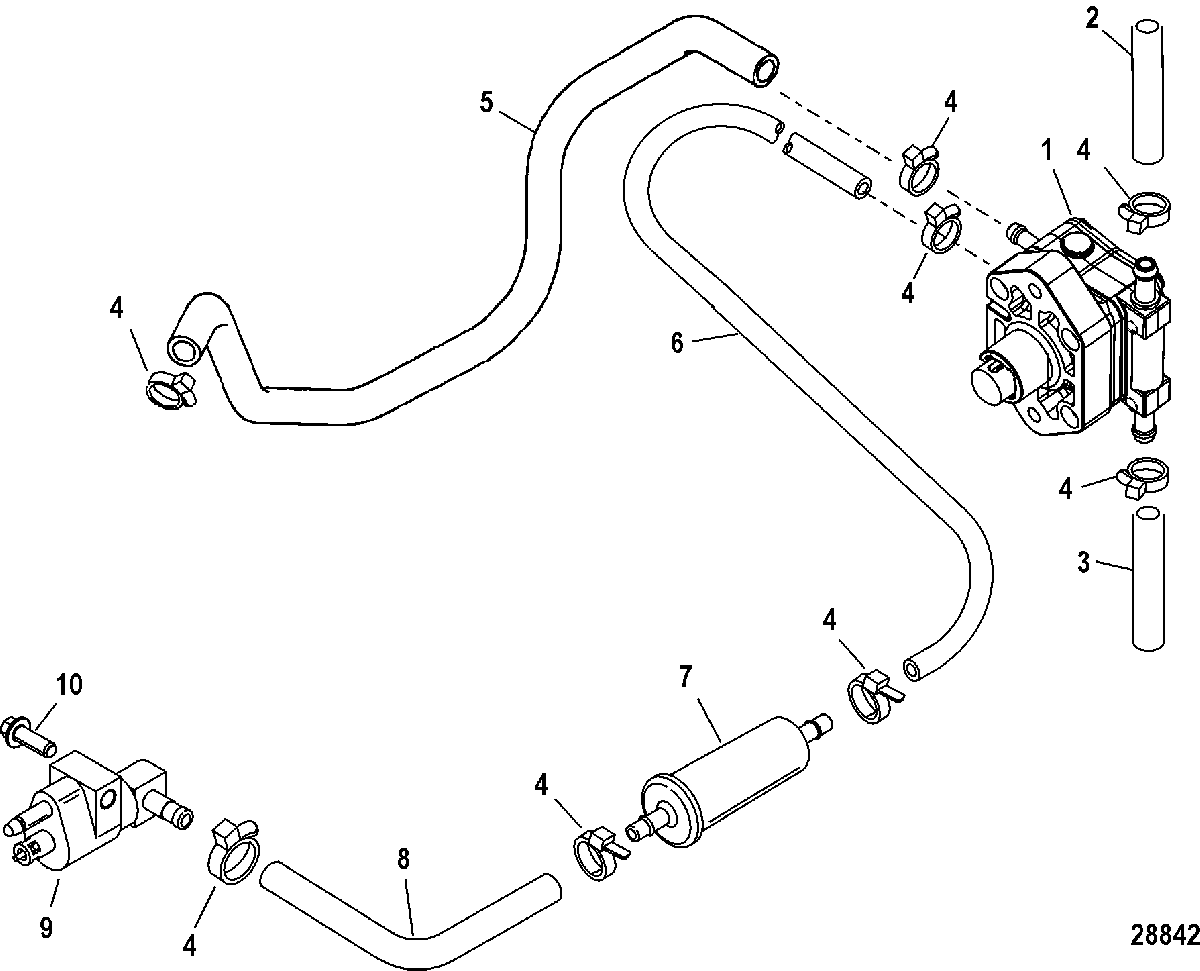

Fuel Pump для Mariner - 40 CARB (3 CYL.)(4-STROKE) 1C018826 & Up

  • №
    Артикул
    Название
  • 1
    8M0141844 PUMP, Fuel, Sold Complete Only
    PUMP, Fuel, Sold Complete Only
  • 2
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk), Cut to 13 Inches - To Block Exhaust Cover
    TUBING, (.312) (70.00 Inches Bulk), Cut to 13 Inches - To Block Exhaust Cover
  • 3
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk), Cut to 6 Inches - To Telltale
    TUBING, (.312) (70.00 Inches Bulk), Cut to 6 Inches - To Telltale
  • 4
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 5
    32-856611 HOSE and SLEEVE, To Float Bowl
    HOSE and SLEEVE, To Float Bowl
  • 6
    32-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 14 Inches
    HOSE, (57.00 Inches Bulk), Cut to 14 Inches
  • 7
    35-877565T1 FILTER, Fuel
    FILTER, Fuel
  • 8
    32-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 19 Inches
    HOSE, (57.00 Inches Bulk), Cut to 19 Inches
  • 9
    22-816856A4 CONNECTOR ASSEMBLY, Fuel
    CONNECTOR ASSEMBLY, Fuel
  • -
    25-16524 O-RING, Fuel Connector
    O-RING, Fuel Connector
  • 10
    10-88552535 SCREW, (M6 x 35 MM) Stainless Steel
    SCREW, (M6 x 35 MM) Stainless Steel
