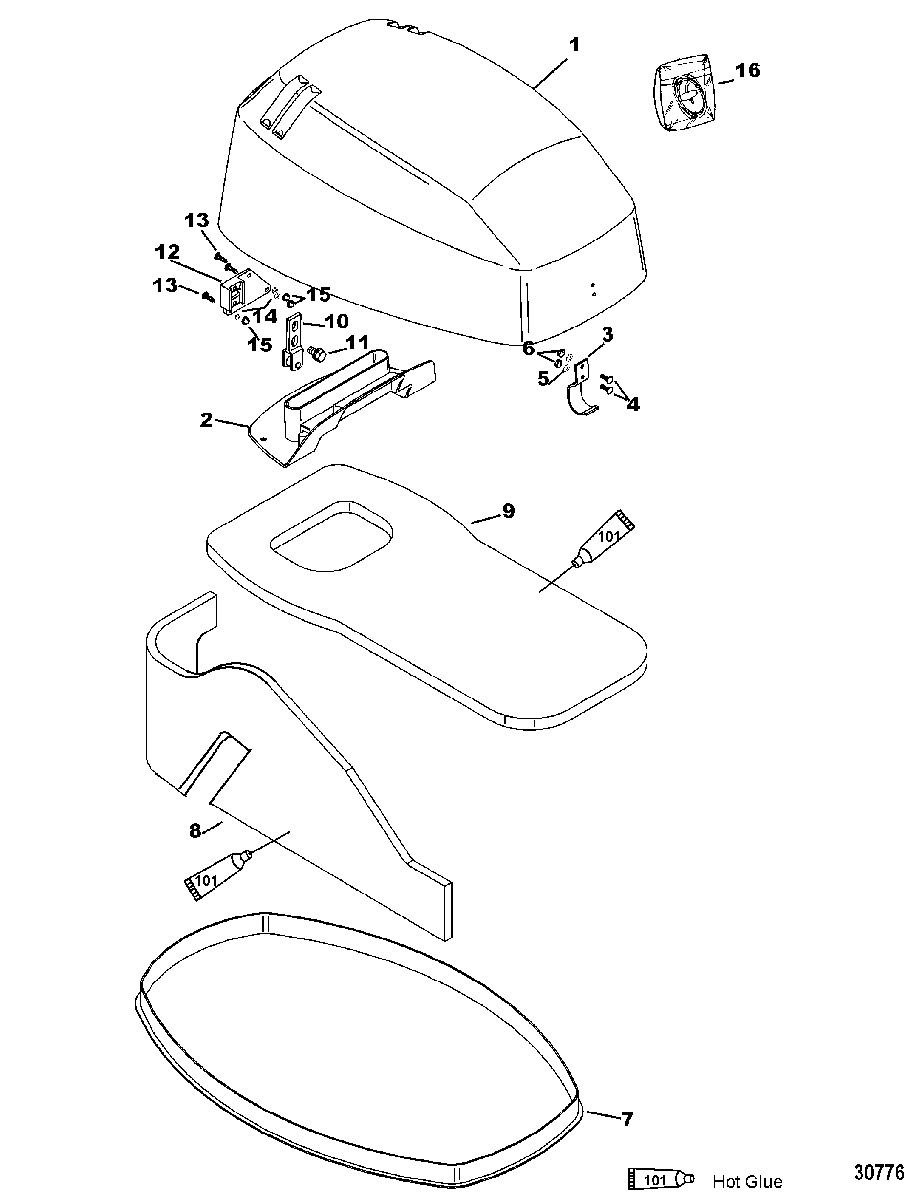

Top Cowl для Mariner - 40 (4-STROKE)(4 CYL.) 0T178500 THRU 0T598999

  • №
    Артикул
    Название
  • 1
    4019-875300T36 TOP COWL ASSEMBLY
    (BLACK)
    TOP COWL ASSEMBLY
    (BLACK)
  • 1
    4019-825239T4 TOP COWL ASSEMBLY
    (SILVER)
    TOP COWL ASSEMBLY
    (SILVER)
  • 2
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 3
    826291F1 LATCH
    (BLACK)
    LATCH
    (BLACK)
  • 3
    826291F1 LATCH
    (SILVER)
    LATCH
    (SILVER)
  • 4
    10-8231871 SCREW, (M4 x 14.5)
    SCREW, (M4 x 14.5)
  • 5
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 6
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 7
    8M0043388 SEAL
    SEAL
  • 8
    825243A03 SOUND BLANKET KIT
    SOUND BLANKET KIT
  • 9
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 10
    893763 BRACKET ASSEMBLY, Latch Roller
    BRACKET ASSEMBLY, Latch Roller
  • 11
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 12
    8M0038412 BRACKET
    BRACKET
  • 13
    10-8231871 SCREW, (M4 x 14.5)
    SCREW, (M4 x 14.5)
  • 14
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 15
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 16
    47341A11 ROPE AND HANDLE KIT, Manual Starting
    ROPE AND HANDLE KIT, Manual Starting
