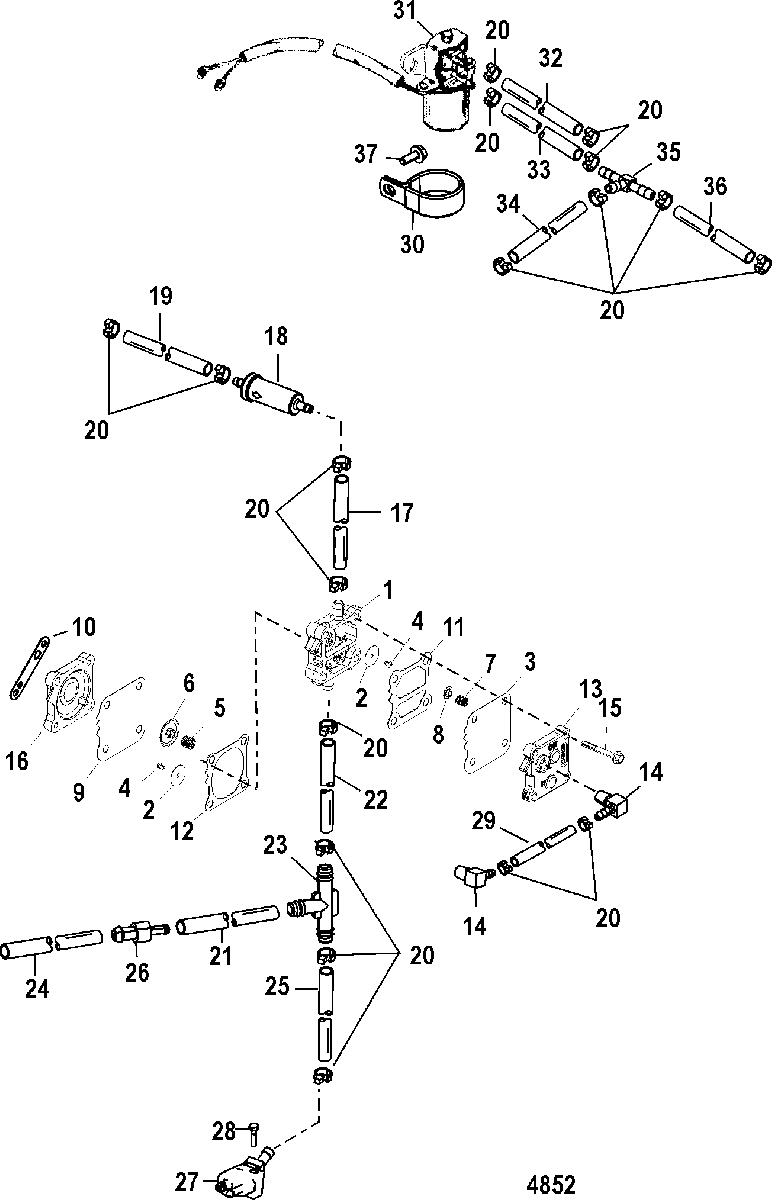

Fuel Pump(Electric) для Mariner - 40 (3 CYL.) 0P325500 & Up

  • №
    Артикул
    Название
  • -
    14360A78 PUMP KIT, Fuel
    PUMP KIT, Fuel
  • 1
    NSS NOT SOLD SEPARATE, Diaphragm Kit
    NOT SOLD SEPARATE, Diaphragm Kit
  • 2
    21-857005A1 DIAPHRAGM KIT
    DIAPHRAGM KIT
  • 3
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 4
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 5
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 6
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 7
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 8
    NSS NOT SOLD SEPARATE, Cap
    NOT SOLD SEPARATE, Cap
  • 9
    NSS NOT SOLD SEPARATE, Diaphragm
    NOT SOLD SEPARATE, Diaphragm
  • 10
    27-987691 GASKET
    GASKET
  • 11
    NSS NOT SOLD SEPARATE, Gasket-Boost
    NOT SOLD SEPARATE, Gasket-Boost
  • 12
    NSS NOT SOLD SEPARATE, Gasket-Pulse
    NOT SOLD SEPARATE, Gasket-Pulse
  • 13
    987752 PLATE
    PLATE
  • 14
    22-433351 CONNECTOR, (90 Degree) With Vibraseal (To Crankcase)
    CONNECTOR, (90 Degree) With Vibraseal (To Crankcase)
  • 15
    10-82104540 SCREW, (M5 x 40)
    SCREW, (M5 x 40)
  • 15
    10-82130050 SCREW, (M6 x 50)
    SCREW, (M6 x 50)
  • 16
    144303 BASE
    BASE
  • 17
    32-831949 HOSE
    HOSE
  • 18
    35-816296Q2 FILTER, Fuel
    FILTER, Fuel
  • 19
    32-830761 LINE, Fuel (To Top Carburetor)
    LINE, Fuel (To Top Carburetor)
  • 20
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 21
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.50 Inch Length)
    (40)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.50 Inch Length)
    (40)
  • 21
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.25 Inch Length)
    (50)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.25 Inch Length)
    (50)
  • 22
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.50 Inch Length)
    (40)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.50 Inch Length)
    (40)
  • 22
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.25 Inch Length)
    (50)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 1.25 Inch Length)
    (50)
  • 23
    22-818992 CONNECTOR
    (40)
    CONNECTOR
    (40)
  • 23
    22-818993 CONNECTOR, Tee
    (50)
    CONNECTOR, Tee
    (50)
  • 24
    32-82381335 TUBING, (15.00 Inches Bulk) (Cut to 2.00 Inch Length)
    (40) (To Oil Pump Outlet)
    TUBING, (15.00 Inches Bulk) (Cut to 2.00 Inch Length)
    (40) (To Oil Pump Outlet)
  • 24
    32-82381335 TUBING, (15.00 Inches Bulk) (Cut to 1.50 Inch Length)
    (50) (To Oil Pump Outlet)
    TUBING, (15.00 Inches Bulk) (Cut to 1.50 Inch Length)
    (50) (To Oil Pump Outlet)
  • 25
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 22.00 Inch Length)
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 22.00 Inch Length)
  • 26
    22-8189941 CHECK VALVE
    CHECK VALVE
  • 27
    22-816856T01 CONNECTOR ASSEMBLY, Fuel
    CONNECTOR ASSEMBLY, Fuel
  • 28
    10-4000332 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 29
    32-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 4.50 Inch Length)
    HOSE, (.187) (26.00 Inches Bulk) (Cut to 4.50 Inch Length)
  • 30
    54-633003 CLAMP
    CLAMP
  • 31
    89-819503A5 SOLENOID KIT, Enrichner Valve
    SOLENOID KIT, Enrichner Valve
  • 32
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 8.00 Inch Length)
    (To Tee Fitting off of Electric Carburetor)
    TUBING, (36.00 Inches Bulk) (Cut to 8.00 Inch Length)
    (To Tee Fitting off of Electric Carburetor)
  • 33
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 4.00 Inch Length)
    TUBING, (36.00 Inches Bulk) (Cut to 4.00 Inch Length)
  • 34
    32-892024122 TUBING, (240.00 Inches Bulk) (Cut to 14.00 Inch Length)
    (To Oil Pump Fitting)
    TUBING, (240.00 Inches Bulk) (Cut to 14.00 Inch Length)
    (To Oil Pump Fitting)
  • 35
    22-59169003 FITTING, Tee
    FITTING, Tee
  • 36
    32-9912688 TUBING, (36.00 Inches Bulk) (Cut to 2.00 Inch Length)
    (To Intake Manifold Fitting)
    TUBING, (36.00 Inches Bulk) (Cut to 2.00 Inch Length)
    (To Intake Manifold Fitting)
  • 37
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • -
    852067T98 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    27-828553A97 GASKET SET
    GASKET SET
