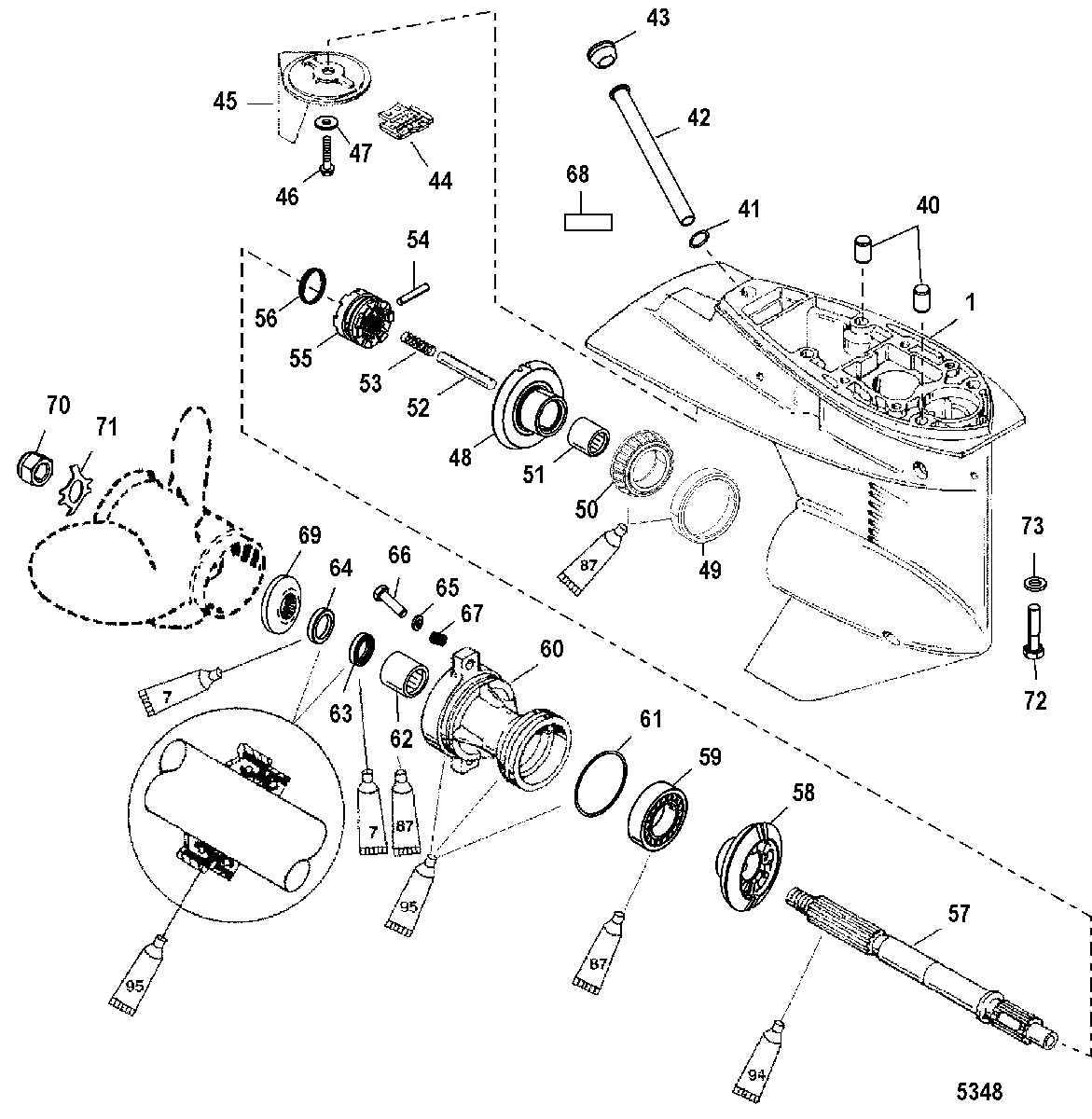

Gear Housing, Propeller Shaft - 1.83:1 Gear Ratio для Mariner - 40 (3 CYL.) 0G760300 THRU 0T979999
-
№АртикулНазвание
-
-1682-821306T26 GEAR HOUSING ASSEMBLY
(Black)(Short)GEAR HOUSING ASSEMBLY
(Black)(Short) -
-1682-821306T28 GEAR HOUSING ASSEMBLY
(Black)(Long)GEAR HOUSING ASSEMBLY
(Black)(Long) -
11682-821306T12 GEAR HOUSING ASSEMBLY, Basic
(Basic-Black)GEAR HOUSING ASSEMBLY, Basic
(Basic-Black) -
4017-821327 PIN, DowelPIN, Dowel
-
4127-823942 GASKETGASKET
-
4232-8M0026108 TUBETUBE
-
4319-824928001 PLUG, RubberPLUG, Rubber
-
44821829 SCREENSCREEN
-
45822157T2 TRIM TABTRIM TAB
-
4610-82497020 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
4712-72397 WASHERWASHER
-
4843-822162T2 GEAR, Forward (22 Teeth)GEAR, Forward (22 Teeth)
-
4931-8M0103470 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
50NSS NOT SOLD SEPARATE
(Cup)NOT SOLD SEPARATE
(Cup) -
5131-41326 BEARING, RollerBEARING, Roller
-
52821578 FOLLOWER, CamFOLLOWER, Cam
-
5324-8261991 SPRINGSPRING
-
5417-8M0020999 PINPIN
-
5552-821314T CLUTCHCLUTCH
-
5624-38114 SPRINGSPRING
-
5744-8M0140441 PROPELLER SHAFTPROPELLER SHAFT
-
5843-822163T1 GEAR, Reverse (22 Teeth)GEAR, Reverse (22 Teeth)
-
5930-20839T BEARING, BallBEARING, Ball
-
6019291A3 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
6125-815460 O-RINGO-RING
-
6231-21700 BEARING, NeedleBEARING, Needle
-
6326-69188 SEAL, OilSEAL, Oil
-
6426-69189 SEAL, OilSEAL, Oil
-
6512-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
6512-855941 WASHER, (.323 x .590 x .112) Stainless Steel
(Use with Threaded Insert)WASHER, (.323 x .590 x .112) Stainless Steel
(Use with Threaded Insert) -
6610-4000353 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
6610-85594030 SCREW, (M8 x 30)
(Use with Threaded Insert)SCREW, (M8 x 30)
(Use with Threaded Insert) -
678227731 INSERT, ThreadedINSERT, Threaded
-
68NSS NOT SOLD SEPARATE (Decal 1.83:1) (12 X 22)NOT SOLD SEPARATE (Decal 1.83:1) (12 X 22)
-
6973345A1 THRUST HUBTHRUST HUB
-
7011-69578Q1 PROP NUT KITPROP NUT KIT
-
7114-76281 TAB WASHERTAB WASHER
-
7210-4000380 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
7312-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
-27-828553A97 GASKET SETGASKET SET
-
-823547A2 SEAL KITSEAL KIT
