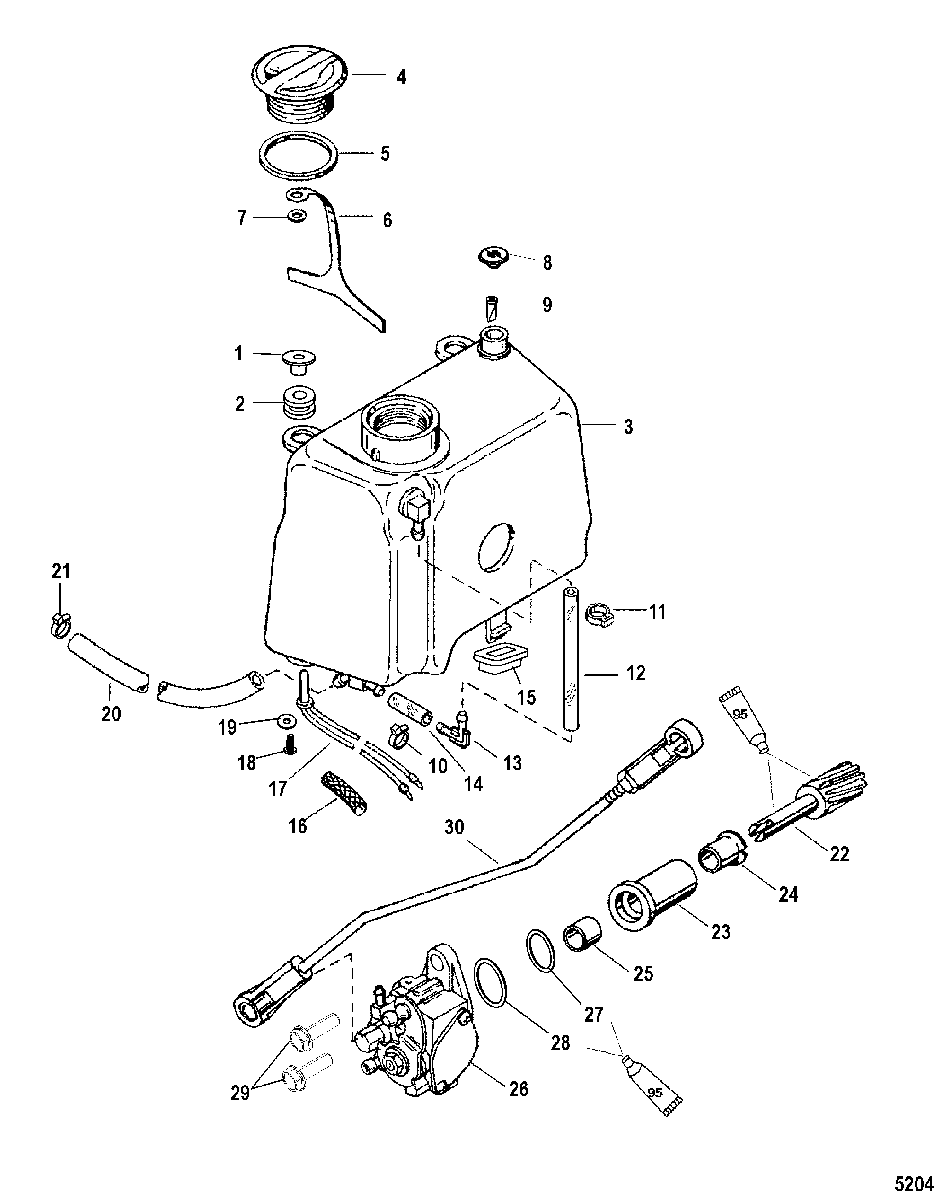

Oil Injection Components для Mariner - 40 (2 CYL.) 1B000001 & Up

  • №
    Артикул
    Название
  • 1
    23-822003 BUSHING
    BUSHING
  • 2
    25-822002 GROMMET
    GROMMET
  • 3
    1271-822514A2 TANK ASSEMBLY, Oil
    TANK ASSEMBLY, Oil
  • 4
    36-828765A1 CAP ASSEMBLY
    CAP ASSEMBLY
  • 5
    27-828766 GASKET
    GASKET
  • 6
    NSS NOT SOLD SEPARATE, Retainer
    NOT SOLD SEPARATE, Retainer
  • 7
    11-821285 PUSH NUT
    PUSH NUT
  • 8
    19299A1 VENT ASSEMBLY
    VENT ASSEMBLY
  • 9
    21-64871 VALVE
    VALVE
  • 10
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 11
    54-814200 CLAMP
    CLAMP
  • 12
    32-82381455 TUBING, (14.50 Inches Bulk) (Cut to 4.75 Inch Length)
    TUBING, (14.50 Inches Bulk) (Cut to 4.75 Inch Length)
  • 13
    22-826083 ELBOW
    ELBOW
  • 14
    32-82381455 TUBING, (25.00 Inches Bulk) (Cut to 1.25 Inch Length)
    TUBING, (25.00 Inches Bulk) (Cut to 1.25 Inch Length)
  • 15
    25-823770001 GROMMET
    GROMMET
  • 16
    23-826084 SPACER
    SPACER
  • 17
    87-12886A6 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 18
    10-58376 SCREW, (.164-18 x .375)
    SCREW, (.164-18 x .375)
  • 19
    12-72761 WASHER, (.203 x .562 x .060) Stainless Steel
    WASHER, (.203 x .562 x .060) Stainless Steel
  • 20
    32-82381335 TUBING, (15.00 Inches Bulk) (Cut to 10.00 Inch Length)
    TUBING, (15.00 Inches Bulk) (Cut to 10.00 Inch Length)
  • 21
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 22
    43-826143 GEAR, Driven
    GEAR, Driven
  • 23
    23-19278A2 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 24
    23-17597 BUSHING, Flanged
    BUSHING, Flanged
  • 25
    23-17596 BUSHING
    BUSHING
  • 26
    818902A2 PUMP ASSEMBLY, Oil Injection
    PUMP ASSEMBLY, Oil Injection
  • 27
    25-36390 O-RING
    O-RING
  • 28
    25-62705 O-RING
    O-RING
  • 29
    10-40011108 SCREW, (M5 x 20) Stainless Steel
    SCREW, (M5 x 20) Stainless Steel
  • 30
    826581T01 LINK
    LINK
  • -
    27-822420A94 GASKET SET
    GASKET SET
