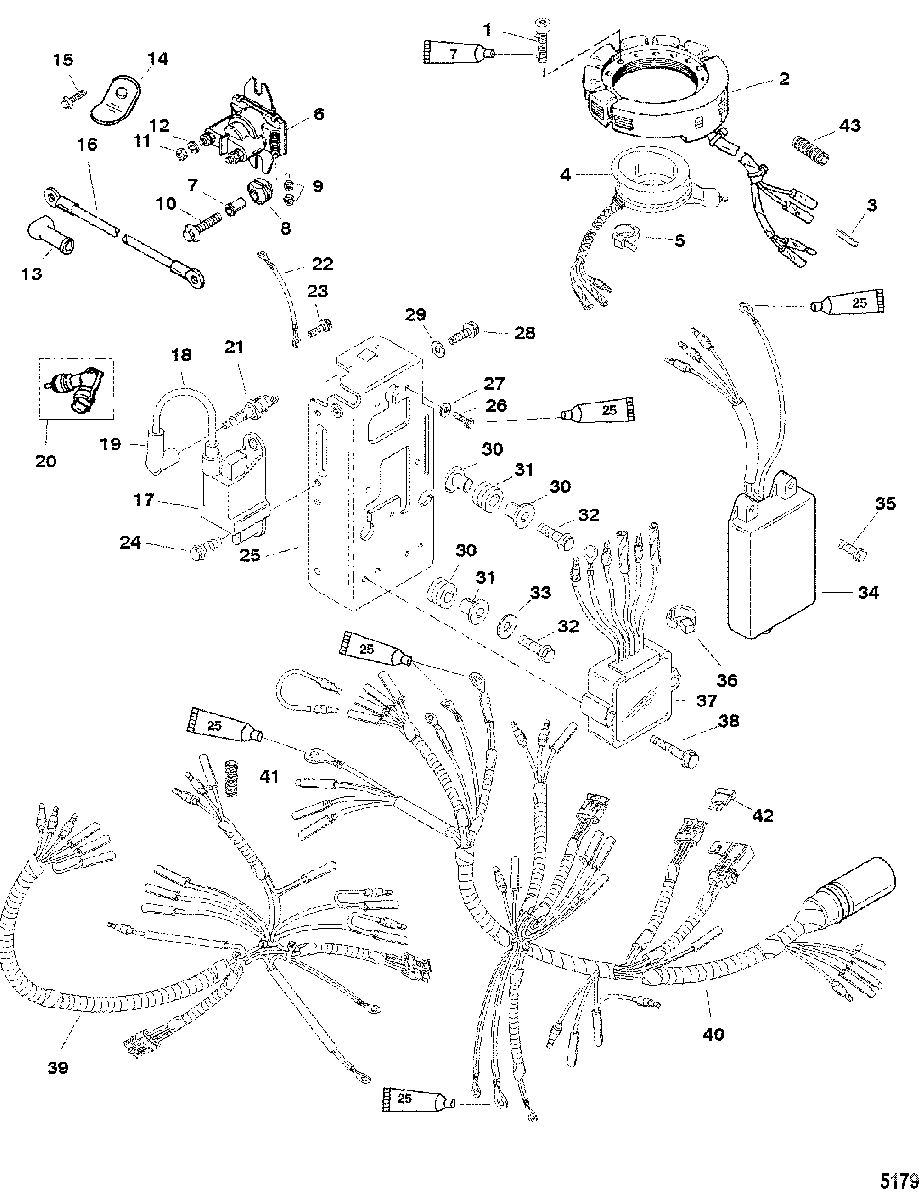

Electrical Components для Mariner - 40 (2 CYL.) 0P017000 THRU 0P325499

  • №
    Артикул
    Название
  • 1
    10-4013930 SCREW, (M5 x 30)
    (Manual)
    SCREW, (M5 x 30)
    (Manual)
  • 2
    398-832074A11 STATOR
    (Manual)
    STATOR
    (Manual)
  • 3
    13541 PLUG, Male
    (Manual)
    PLUG, Male
    (Manual)
  • 4
    853960T TRIGGER
    (Manual)
    TRIGGER
    (Manual)
  • 5
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 6
    89-850187T1 SOLENOID ASSEMBLY
    (Electric)
    SOLENOID ASSEMBLY
    (Electric)
  • 7
    23-818968 BUSHING
    (Electric)
    BUSHING
    (Electric)
  • 8
    25-818967 GROMMET
    (Electric)
    GROMMET
    (Electric)
  • 9
    11-26419 NUT, (#8-32) Brass
    (Electric)
    NUT, (#8-32) Brass
    (Electric)
  • 10
    10-40011129 SCREW, (M6 x 25) Stainless Steel
    (Electric)
    SCREW, (M6 x 25) Stainless Steel
    (Electric)
  • 11
    11-64015 NUT, (.250-20)
    (Electric)
    NUT, (.250-20)
    (Electric)
  • 12
    13-26992 LOCKWASHER, (.250) Stainless Steel
    (Electric)
    LOCKWASHER, (.250) Stainless Steel
    (Electric)
  • 13
    85-830233 BOOT, Insulator - Red
    (Electric)
    BOOT, Insulator - Red
    (Electric)
  • 14
    8275101 RETAINER
    (30 Electric Handle)
    RETAINER
    (30 Electric Handle)
  • 15
    10-878609 SCREW, (#10-16 x .600)
    (30 Electric Handle)
    SCREW, (#10-16 x .600)
    (30 Electric Handle)
  • 16
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    (Electric)
    CABLE ASSEMBLY, Battery - Negative
    (Electric)
  • 17
    827509T7 CDM MODULE ASSEMBLY
    CDM MODULE ASSEMBLY
  • 18
    84-857124A1 CABLE ASSEMBLY, Hi-Tension
    CABLE ASSEMBLY, Hi-Tension
  • 19
    85-857074A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 20
    85-815119M CAP, Spark Plug
    (Noise Suppressor) (Use Where Applicable)
    CAP, Spark Plug
    (Noise Suppressor) (Use Where Applicable)
  • 21
    33-816737Q SPARK PLUG
    (NGK# BP8H-N-10)
    SPARK PLUG
    (NGK# BP8H-N-10)
  • 21
    33-816837Q SPARK PLUG
    (NGK#BPZ-8H-N-10)
    SPARK PLUG
    (NGK#BPZ-8H-N-10)
  • 22
    84-88807A44 CABLE ASSEMBLY
    (Manual)
    CABLE ASSEMBLY
    (Manual)
  • 23
    10-81893412 SCREW, (M8 x 12)
    (Manual)
    SCREW, (M8 x 12)
    (Manual)
  • 24
    10-82129116 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 25
    8302361 PLATE, Electrical
    PLATE, Electrical
  • 26
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 27
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 28
    10-82129114 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 29
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 30
    23-8318701 BUSHING
    BUSHING
  • 31
    25-822002 GROMMET
    GROMMET
  • 32
    10-40011130 SCREW, (M6 x 30) Stainless Steel
    SCREW, (M6 x 30) Stainless Steel
  • 33
    12-4002316 WASHER
    WASHER
  • 34
    821889A49 REV LIMITER
    (Manual)
    REV LIMITER
    (Manual)
  • 34
    821889A50 REV LIMITER
    (Electric)
    REV LIMITER
    (Electric)
  • 35
    10-82129125 SCREW, (M6 x 25 MM)
    SCREW, (M6 x 25 MM)
  • 36
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 37
    8M0084173 REGULATOR, Voltage
    (Electric)
    REGULATOR, Voltage
    (Electric)
  • 38
    10-82129135 SCREW, (M6 x 35)
    (Electric)
    SCREW, (M6 x 35)
    (Electric)
  • 39
    84-854323A2 HARNESS ASSEMBLY, Engine
    (Manual)
    HARNESS ASSEMBLY, Engine
    (Manual)
  • 40
    84-854322A2 HARNESS ASSEMBLY, Engine
    (Electric)
    HARNESS ASSEMBLY, Engine
    (Electric)
  • 41
    32-828547353 CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)
    CONDUIT, (.350 Inside Diameter x 3.00 Feet Bulk)
  • 42
    88-812619 FUSE, Yellow - 20 Ampere
    (Electric)
    FUSE, Yellow - 20 Ampere
    (Electric)
  • 43
    32-828547T CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk)
    CONDUIT, (1.00 Inside Diameter x 3.00 Feet Bulk)
  • -
    808569T02 POWERHEAD ASSEMBLY
    30 HP
    POWERHEAD ASSEMBLY
    30 HP
  • -
    61-8M0063311 POWERHEAD ASSEMBLY
    40 HP
    POWERHEAD ASSEMBLY
    40 HP
