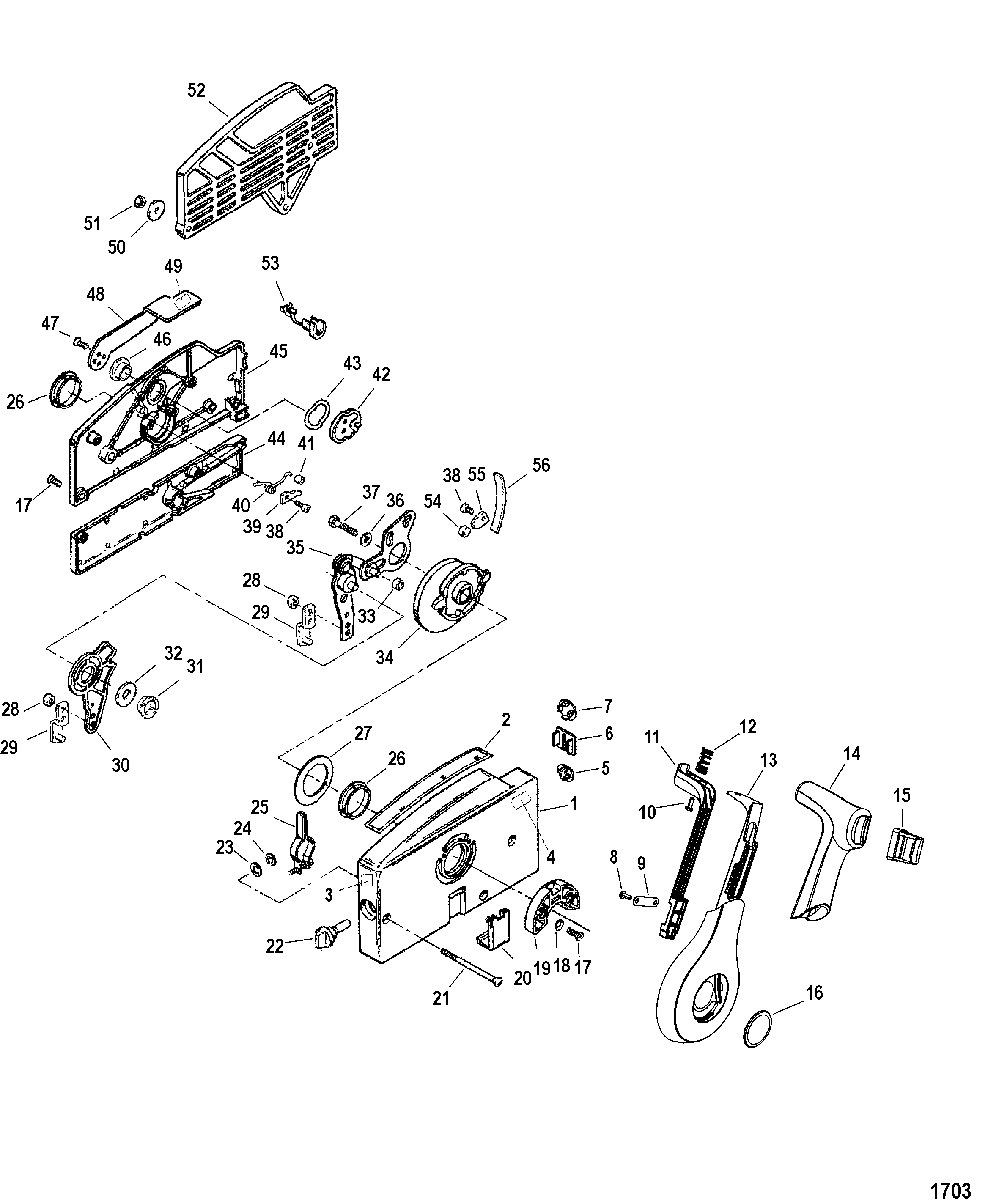

Remote Control 4000 Side Mount для Mariner - 4 (4-STROKE) 0R411838 & Up
-
№АртикулНазвание
-
-881170A8 REMOTE CONTROL, Manual Start - Non Power Trim
No Ignition SwitchREMOTE CONTROL, Manual Start - Non Power Trim
No Ignition Switch -
1NSS NOT SOLD SEPARATE, Housing-FrontNOT SOLD SEPARATE, Housing-Front
-
2NSS NOT SOLD SEPARATE, Decal-F-N-RNOT SOLD SEPARATE, Decal-F-N-R
-
3NSS NOT SOLD SEPARATE, Decal-Throttle FrictionNOT SOLD SEPARATE, Decal-Throttle Friction
-
4NSS NOT SOLD SEPARATE, Decal-Run/OffNOT SOLD SEPARATE, Decal-Run/Off
-
519-89774 PLUG, Key Switch HolePLUG, Key Switch Hole
-
617192 PLUG, Stop Switch HolePLUG, Stop Switch Hole
-
717191 PLUG, Wire Harness HolePLUG, Wire Harness Hole
-
810-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
916921 BRACKET, Lock Bar SupportBRACKET, Lock Bar Support
-
1010-87775510 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
11881138 LOCK BAR, RedLOCK BAR, Red
-
1224-16924 SPRINGSPRING
-
13881148T04 HANDLE KITHANDLE KIT
-
148811411 GRIPGRIP
-
15881146 PLUGPLUG
-
16881137A1 CAP/DECAL ASSEMBLYCAP/DECAL ASSEMBLY
-
1710-40118107 SCREW, (M5 x 18)SCREW, (M5 x 18)
-
1813-16923 LOCKWASHER, ExternalLOCKWASHER, External
-
1916899T HOLDER, Neutral LockHOLDER, Neutral Lock
-
2016917 COVERCOVER
-
2110-40116110T SCREW, (M6 x 110)SCREW, (M6 x 110)
-
22881145 KNOB, Throttle FrictionKNOB, Throttle Friction
-
2312-16896 WASHERWASHER
-
2453-13194 RING, RetainingRING, Retaining
-
2516895 ARM ASSEMBLY, BrakeARM ASSEMBLY, Brake
-
2623-16875 BEARING, (1.750 Inside Diameter)BEARING, (1.750 Inside Diameter)
-
2712-16874 WASHERWASHER
-
2811-401385 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
2954-85899A1 CLIP ASSEMBLYCLIP ASSEMBLY
-
30NSS NOT SOLD SEPARATE, Gear Shift AssemblyNOT SOLD SEPARATE, Gear Shift Assembly
-
3123-16868 BEARING, (.750 Inside Diameter)BEARING, (.750 Inside Diameter)
-
3212-16870 WASHERWASHER
-
3316873 ROLLER, CamROLLER, Cam
-
34NSS NOT SOLD SEPARATE, Drive GearNOT SOLD SEPARATE, Drive Gear
-
35NSS NOT SOLD SEPARATE, Plate/Stud AssemblyNOT SOLD SEPARATE, Plate/Stud Assembly
-
3612-12038 WASHERWASHER
-
3710-4007154 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
3810-4005683 SCREW, (M4 x 6)SCREW, (M4 x 6)
-
3916886 CLIPCLIP
-
4024-16888 SPRINGSPRING
-
4116884 ROLLERROLLER
-
4216883 DRUM ASSEMBLYDRUM ASSEMBLY
-
4313-16922 WAVE WASHERWAVE WASHER
-
44NSS NOT SOLD SEPARATE, Cover-BottomNOT SOLD SEPARATE, Cover-Bottom
-
45NSS NOT SOLD SEPARATE, Cover-TopNOT SOLD SEPARATE, Cover-Top
-
4623-16887 BEARING, (.810 Inside Diameter)BEARING, (.810 Inside Diameter)
-
4710-40118106 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
4816919A1 LEVER ASSEMBLYLEVER ASSEMBLY
-
49NSS NOT SOLD SEPARATE, Decal-Lift for Fast IdleNOT SOLD SEPARATE, Decal-Lift for Fast Idle
-
5012-35280 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
5111-401196 NUT, (M6)NUT, (M6)
-
5217063T SPACERSPACER
-
5323-71942 BUSHINGBUSHING
-
5416879 ROLLER, DetentROLLER, Detent
-
5516880 CLIP, DetentCLIP, Detent
-
5624-16882 SPRING, DetentSPRING, Detent
