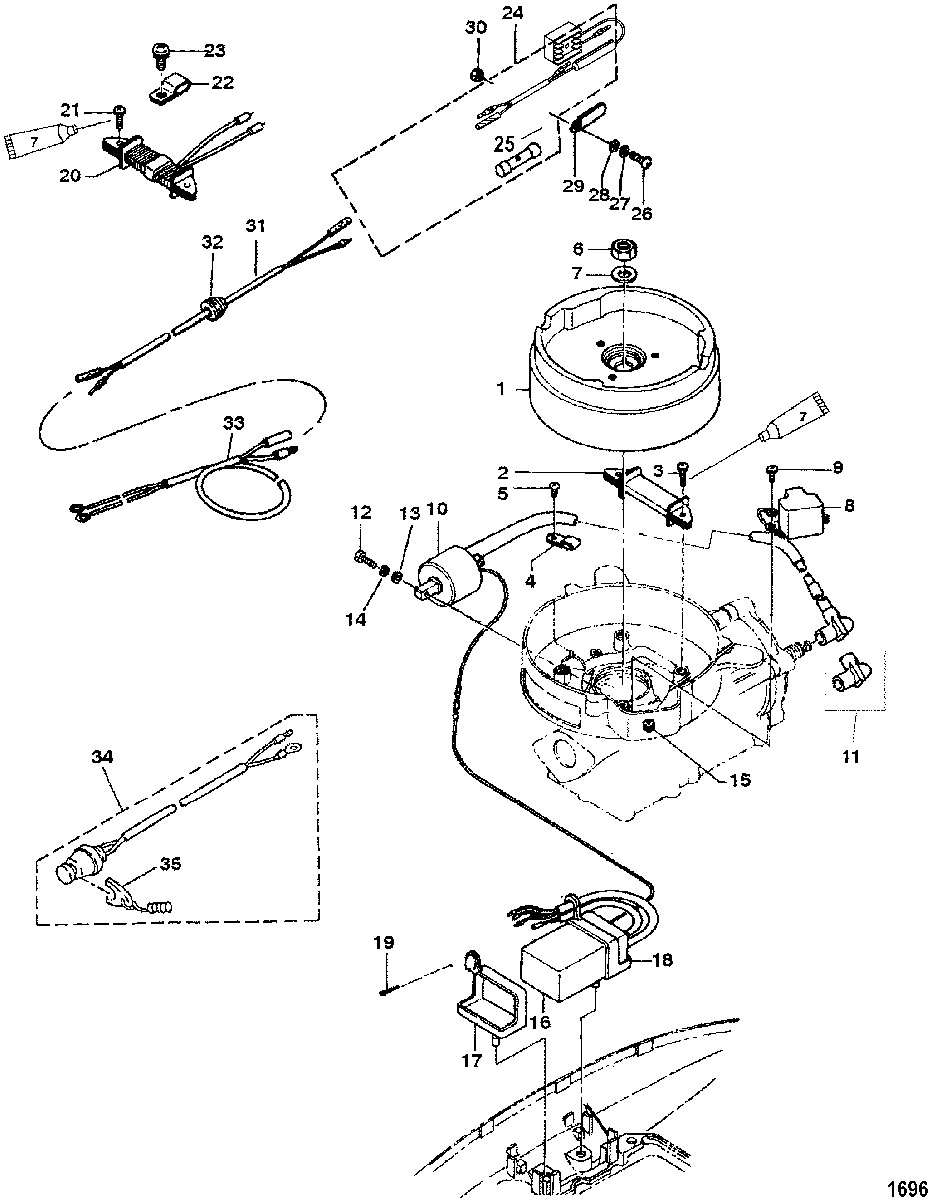

Magneto and Ignition Components для Mariner - 4 (2-STROKE) 0P401000 & Up

  • №
    Артикул
    Название
  • 1
    200-8M0110989 FLYWHEEL
    FLYWHEEL
  • 2
    16058T COIL, Exciter
    COIL, Exciter
  • 3
    10-16059 SCREW
    SCREW
  • 4
    54-16060 CLAMP
    CLAMP
  • 5
    10-16821 SCREW
    SCREW
  • 6
    11-16071 NUT
    NUT
  • 7
    12-16072 WASHER
    WASHER
  • 8
    160661 COIL, Pulser
    COIL, Pulser
  • 9
    10-16067 SCREW
    SCREW
  • 10
    815113T02 COIL ASSEMBLY, Ignition
    COIL ASSEMBLY, Ignition
  • 11
    85-855543 BOOT, With Resistance
    BOOT, With Resistance
  • 12
    10-167051 BOLT, (M6 x 20)
    BOLT, (M6 x 20)
  • 13
    13-16818 LOCKWASHER
    LOCKWASHER
  • 14
    12-809931044 WASHER
    WASHER
  • 15
    25-16068 GROMMET
    GROMMET
  • 16
    16061T04 CD UNIT
    CD UNIT
  • 17
    878061 FRONT DAMPER
    FRONT DAMPER
  • 18
    878062 DAMPER, Rear
    DAMPER, Rear
  • 19
    18-815026 COTTER PIN
    COTTER PIN
  • 20
    16074T ALTERNATOR
    Sailpower/Sailmate
    ALTERNATOR
    Sailpower/Sailmate
  • 21
    10-16059 SCREW
    Sailpower/Sailmate
    SCREW
    Sailpower/Sailmate
  • 22
    54-16060 CLAMP
    Sailpower/Sailmate
    CLAMP
    Sailpower/Sailmate
  • 23
    10-16821 SCREW
    Sailpower/Sailmate
    SCREW
    Sailpower/Sailmate
  • 24
    16076A1 RECTIFIER KIT
    Sailpower/Sailmate
    RECTIFIER KIT
    Sailpower/Sailmate
  • 25
    89-16077 FUSE
    Sailpower/Sailmate
    FUSE
    Sailpower/Sailmate
  • 26
    10-16123 SCREW, (25 mm)
    Sailpower/Sailmate
    SCREW, (25 mm)
    Sailpower/Sailmate
  • 27
    13-16079 LOCKWASHER
    Sailpower/Sailmate
    LOCKWASHER
    Sailpower/Sailmate
  • 28
    12-8M0108373 WASHER, Stainless Steel
    Sailpower/Sailmate
    WASHER, Stainless Steel
    Sailpower/Sailmate
  • 29
    54-813275 CLAMP
    Sailpower/Sailmate
    CLAMP
    Sailpower/Sailmate
  • 30
    11-16081 NUT, Stainless Steel
    Sailpower/Sailmate
    NUT, Stainless Steel
    Sailpower/Sailmate
  • 31
    84-16822 HARNESS, Extension
    Sailpower/Sailmate
    HARNESS, Extension
    Sailpower/Sailmate
  • 32
    25-16823 GROMMET
    Sailpower/Sailmate
    GROMMET
    Sailpower/Sailmate
  • 33
    84-16082 CABLE, Battery
    Sailpower/Sailmate
    CABLE, Battery
    Sailpower/Sailmate
  • 34
    87-823037A04 SWITCH ASSEMBLY, Emergency Stop
    SWITCH ASSEMBLY, Emergency Stop
  • 35
    823054 LANYARD
    LANYARD
