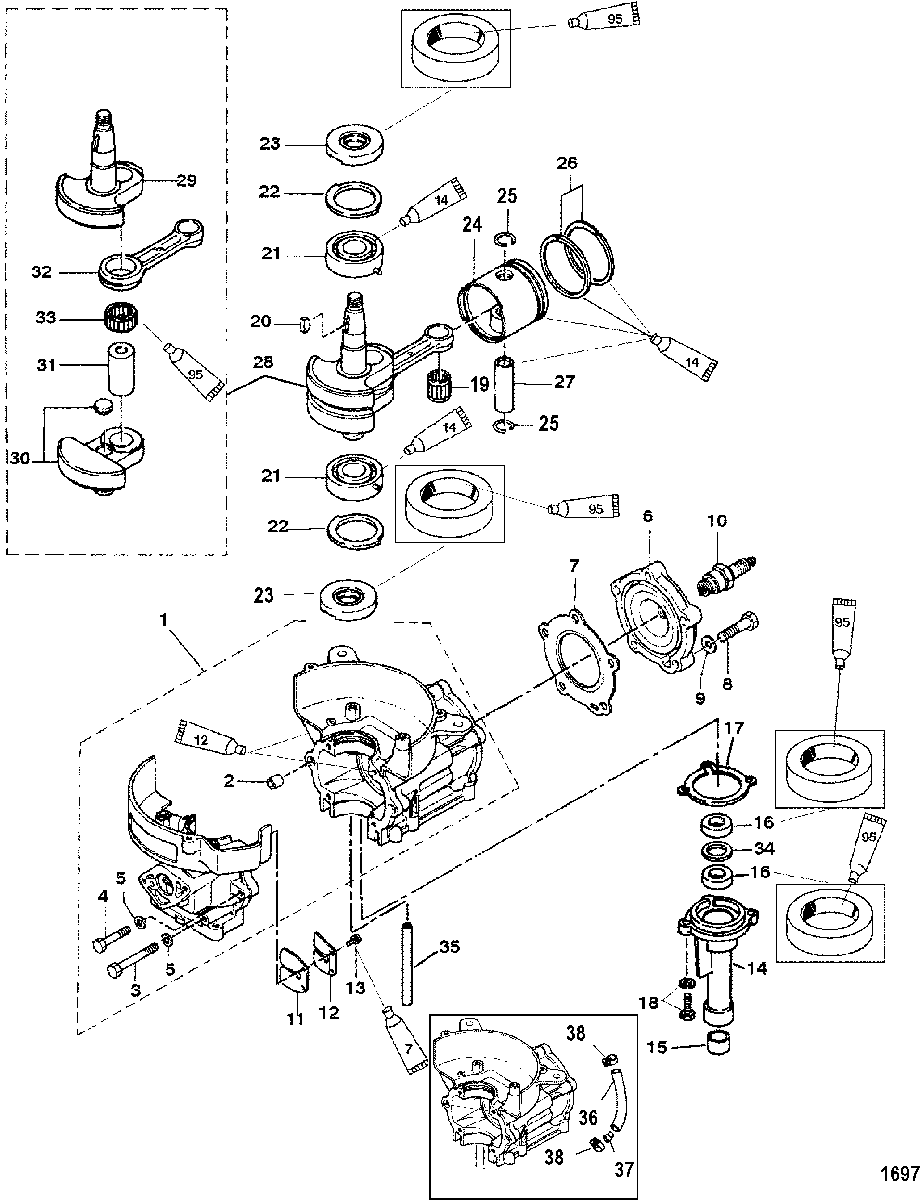

Cylinder Block/Crankshaft/Piston для Mariner - 4 (2-STROKE) 0G710613 THRU 0T894438

  • №
    Артикул
    Название
  • 1
    878-815013A5 CYLINDER BLOCK
    (With Re-Circulation System)
    CYLINDER BLOCK
    (With Re-Circulation System)
  • 1
    878-815013A5 CYLINDER BLOCK
    (Without Re-Circulation System)
    CYLINDER BLOCK
    (Without Re-Circulation System)
  • 2
    17-16119 PIN, Dowel
    PIN, Dowel
  • 3
    10-16695 BOLT
    BOLT
  • 4
    10-815063 SCREW
    SCREW
  • 5
    13-16818 LOCKWASHER
    LOCKWASHER
  • 6
    979-96301 CYLINDER HEAD
    CYLINDER HEAD
  • 7
    27-812939015 GASKET
    GASKET
  • 8
    10-16126 BOLT
    SN# 0T707898/0P267999 & Below
    BOLT
    SN# 0T707898/0P267999 & Below
  • 8
    10-16126 BOLT
    SN# 0T707899/0P268000 & Up
    BOLT
    SN# 0T707899/0P268000 & Up
  • 9
    12-4002217 WASHER
    WASHER
  • 10
    33-17719547 SPARK PLUG, (NGK#BPR7HS-10)
    (BPR7HS-10-With Resistance)
    SPARK PLUG, (NGK#BPR7HS-10)
    (BPR7HS-10-With Resistance)
  • 10
    33-8M0114744 SPARK PLUG, (NGK#BP7HS-10)
    (Without Resistance)
    SPARK PLUG, (NGK#BP7HS-10)
    (Without Resistance)
  • 11
    34-16706 REED VALVE
    REED VALVE
  • 12
    34-16707 STOP
    (4 HP)
    STOP
    (4 HP)
  • 12
    34-17666 STOP
    (5 HP)
    STOP
    (5 HP)
  • 13
    10-16820 SCREW
    SCREW
  • 14
    8150162 HOUSING
    HOUSING
  • 15
    23-815017 BUSHING
    BUSHING
  • 16
    26-8M0101649 SEAL, Oil
    SEAL, Oil
  • 17
    27-16704 GASKET
    GASKET
  • 18
    10-167051 BOLT
    BOLT
  • 19
    31-16052 BEARING, Roller
    BEARING, Roller
  • 20
    28-16053 KEY
    KEY
  • 21
    30-16049 BEARING, Ball
    BEARING, Ball
  • 22
    8537122 THRUST PLATE
    THRUST PLATE
  • 23
    26-16051 SEAL, Oil
    SEAL, Oil
  • -
    779-8M0103755 PISTON ASSEMBLY
    (Standard)
    PISTON ASSEMBLY
    (Standard)
  • -
    779-8M0103756 PISTON ASSEMBLY
    (.5MM Oversize)
    PISTON ASSEMBLY
    (.5MM Oversize)
  • 24
    779-8M0103755 PISTON
    (Standard)
    PISTON
    (Standard)
  • 24
    779-8M0103756 PISTON
    (.5MM Oversize)
    PISTON
    (.5MM Oversize)
  • 25
    53-16057 CLIP
    CLIP
  • 26
    39-8M0080357 RING, Piston
    (Standard)
    RING, Piston
    (Standard)
  • 26
    39-8M0080356 RING, Piston
    (.5MM Oversize)
    RING, Piston
    (.5MM Oversize)
  • 27
    41-898101918 PIN, Piston
    PIN, Piston
  • 28
    474-879147T15 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 29
    NSS NOT SOLD SEPARATE, Crankshaft
    NOT SOLD SEPARATE, Crankshaft
  • 30
    NSS NOT SOLD SEPARATE, Crankshaft
    NOT SOLD SEPARATE, Crankshaft
  • 31
    813046002 PIN, Crank
    PIN, Crank
  • 32
    629-813047 CONNECTING ROD
    CONNECTING ROD
  • 33
    31-813048 BEARING
    BEARING
  • 34
    23-815018 SPACER
    SPACER
  • 35
    32-823976 HOSE, Tell-Tale
    HOSE, Tell-Tale
  • 36
    32-8M0057112 HOSE, Rubber (1 Meter)
    (Use with Re-Circulation System)
    HOSE, Rubber (1 Meter)
    (Use with Re-Circulation System)
  • 37
    21-42657A3 CHECK VALVE
    (Use with Re-Circulation System)
    CHECK VALVE
    (Use with Re-Circulation System)
  • 38
    54-95224 CLIP
    (Use with Re-Circulation System)
    CLIP
    (Use with Re-Circulation System)
  • -
    16115A03 GASKET SET, Powerhead
    GASKET SET, Powerhead
  • -
    815040T05 POWERHEAD ASSEMBLY
    (4 HP)(With Re-Circulation System)
    POWERHEAD ASSEMBLY
    (4 HP)(With Re-Circulation System)
  • -
    815040T05 POWERHEAD ASSEMBLY
    (4 HP)(Without Re-Circulation System)
    POWERHEAD ASSEMBLY
    (4 HP)(Without Re-Circulation System)
  • -
    815042T04 POWERHEAD ASSEMBLY
    (5 HP)(With Re-Circulation System)
    POWERHEAD ASSEMBLY
    (5 HP)(With Re-Circulation System)
  • -
    815042T04 POWERHEAD ASSEMBLY
    (5 HP)(Without Re-Circulation System)
    POWERHEAD ASSEMBLY
    (5 HP)(Without Re-Circulation System)
