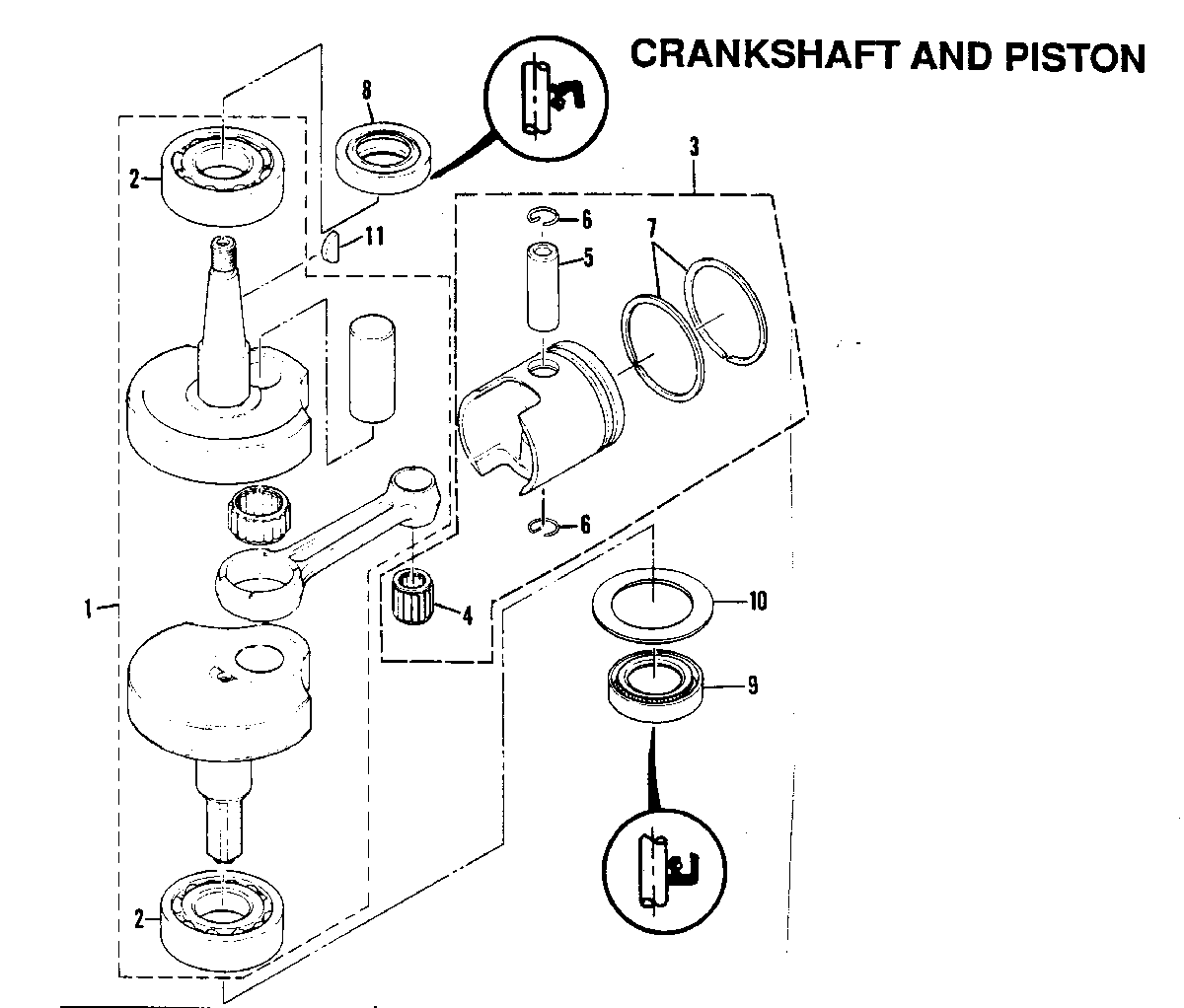

CRANKSHAFT AND PISTON для Mariner - 3.5 642-23740 AND BELOW

  • №
    Артикул
    Название
  • 1
    463-6706M CRANKSHAFT
    CRANKSHAFT
  • 2
    30-82292M BEARING
    BEARING
  • 3
    NLA PISTON (STANDARD)
    PISTON (STANDARD)
  • 3
    761-8228M PISTON (45.25 MM O.S.)
    PISTON (45.25 MM O.S.)
  • 3
    761-8229M PISTON (45.50 MM O.S.)
    PISTON (45.50 MM O.S.)
  • 4
    31-82835M BEARING
    BEARING
  • 5
    41-80029M PISTON PIN
    PISTON PIN
  • 6
    53-82342M CLIP
    CLIP
  • 7
    39-80109T PISTON RING SET (STANDARD)
    PISTON RING SET (STANDARD)
  • 7
    39-80110M PISTON RING SET (45.25 MM O.S.)
    PISTON RING SET (45.25 MM O.S.)
  • 7
    NLA PISTON RING SET (45.50 MM O.S.)
    PISTON RING SET (45.50 MM O.S.)
  • 8
    26-82239M UPPER OIL SEAL
    UPPER OIL SEAL
  • 9
    26-82241M LOWER OIL SEAL
    LOWER OIL SEAL
  • 10
    80108M SEAL LOCK
    SEAL LOCK
  • 11
    28-81911M KEY
    KEY
