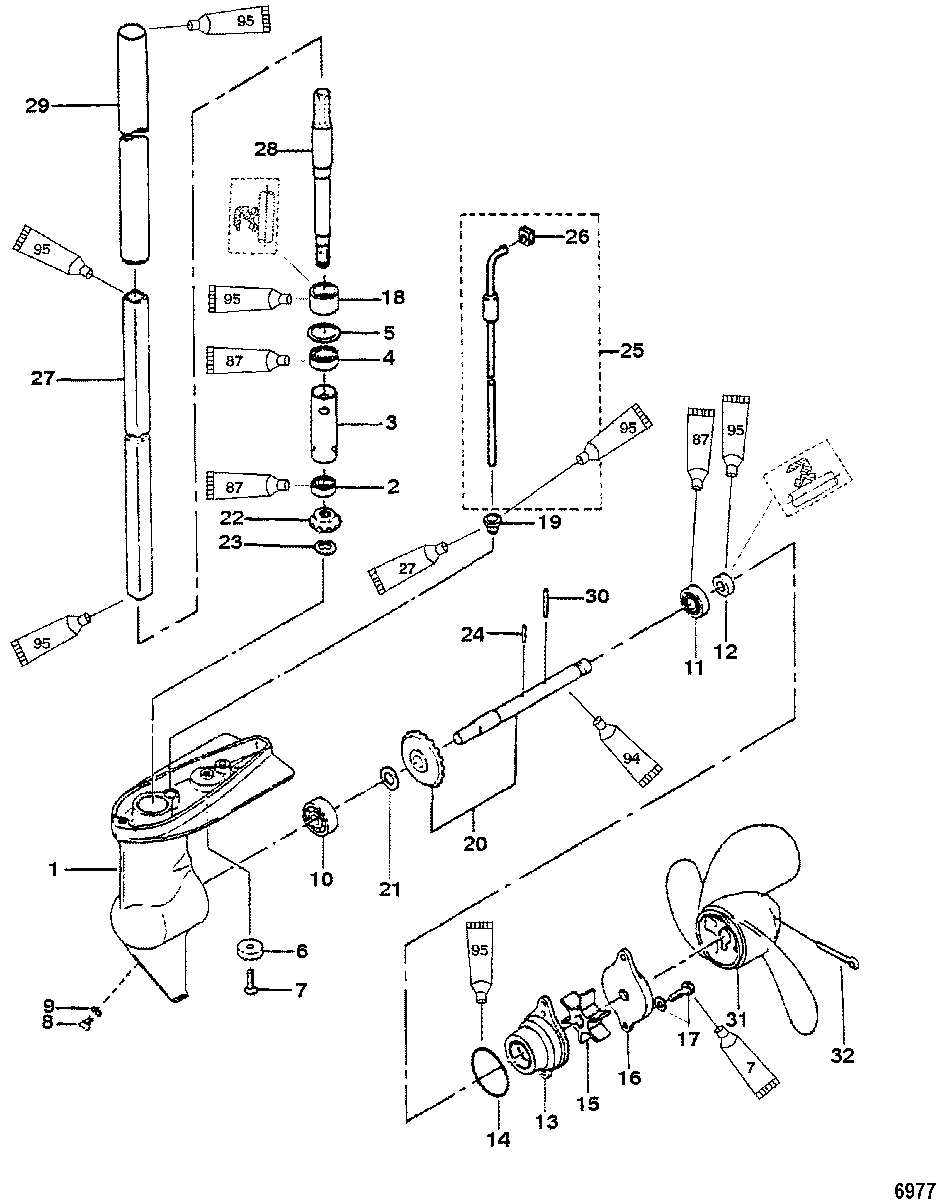

Gear Housing Assembly, 2/2.5 Horsepower для Mariner - 3.3 0T894577 & Up
-
№АртикулНазвание
-
-1668-825122A2 GEAR HOUSING ASSEMBLY, CompleteGEAR HOUSING ASSEMBLY, Complete
-
11668-825122T1 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
230-95342 BEARING, Ball, LowerBEARING, Ball, Lower
-
323-95343 SPACERSPACER
-
430-95344 BEARING, Ball, UpperBEARING, Ball, Upper
-
553-95345 RING, SnapRING, Snap
-
697-823913Q ANODEANODE
-
710-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
822-953683 PLUGPLUG
-
98M0082880 GASKETGASKET
-
1030-95347 BEARINGBEARING
-
1130-95344 BEARING, BallBEARING, Ball
-
1226-95348 SEAL, OilSEAL, Oil
-
1346-952871 PUMP, WaterPUMP, Water
-
1425-95288 O-RINGO-RING
-
1547-952892 IMPELLERIMPELLER
-
16825114 COVERCOVER
-
1710-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1826-95350 SEAL, OilSEAL, Oil
-
1923-95361 BUSHING, LowerBUSHING, Lower
-
2044-95291A1 PROPELLER SHAFT, With Bevel GearPROPELLER SHAFT, With Bevel Gear
-
2115-811647A1 SHIMSHIM
-
2243-95293 GEAR, PinionGEAR, Pinion
-
2353-815066 RING, SnapRING, Snap
-
2428-95371 KEYKEY
-
2532-95359 TUBE ASSEMBLY, Water
ShortTUBE ASSEMBLY, Water
Short -
2532-953593 TUBE ASSEMBLY, Water
LongTUBE ASSEMBLY, Water
Long -
2625-953601 GROMMET, UpperGROMMET, Upper
-
2745-95290 DRIVESHAFT, Upper
ShortDRIVESHAFT, Upper
Short -
2745-952903 DRIVESHAFT, Upper
LongDRIVESHAFT, Upper
Long -
2845-95369 DRIVESHAFT, LowerDRIVESHAFT, Lower
-
2995277 PIPE
ShortPIPE
Short -
29952772 PIPE
LongPIPE
Long -
3017-815111Q02 SHEAR PIN, Stainless SteelSHEAR PIN, Stainless Steel
-
3148-815083A01 PROPELLER, (3 x 7.4 x 5.7)(Plastic)PROPELLER, (3 x 7.4 x 5.7)(Plastic)
-
3148-815084A01 PROPELLER, Aluminum (3 x 7.4 x 6)PROPELLER, Aluminum (3 x 7.4 x 6)
-
3148-815084A02 PROPELLER, Aluminum (3 x 7.4 x 7)PROPELLER, Aluminum (3 x 7.4 x 7)
-
3148-815083A02 PROPELLER, Plastic (3 x 7.4 x 7)PROPELLER, Plastic (3 x 7.4 x 7)
-
3218-95295 COTTER PINCOTTER PIN
-
-27-8M0082878 GASKET SET, Lower UnitGASKET SET, Lower Unit
