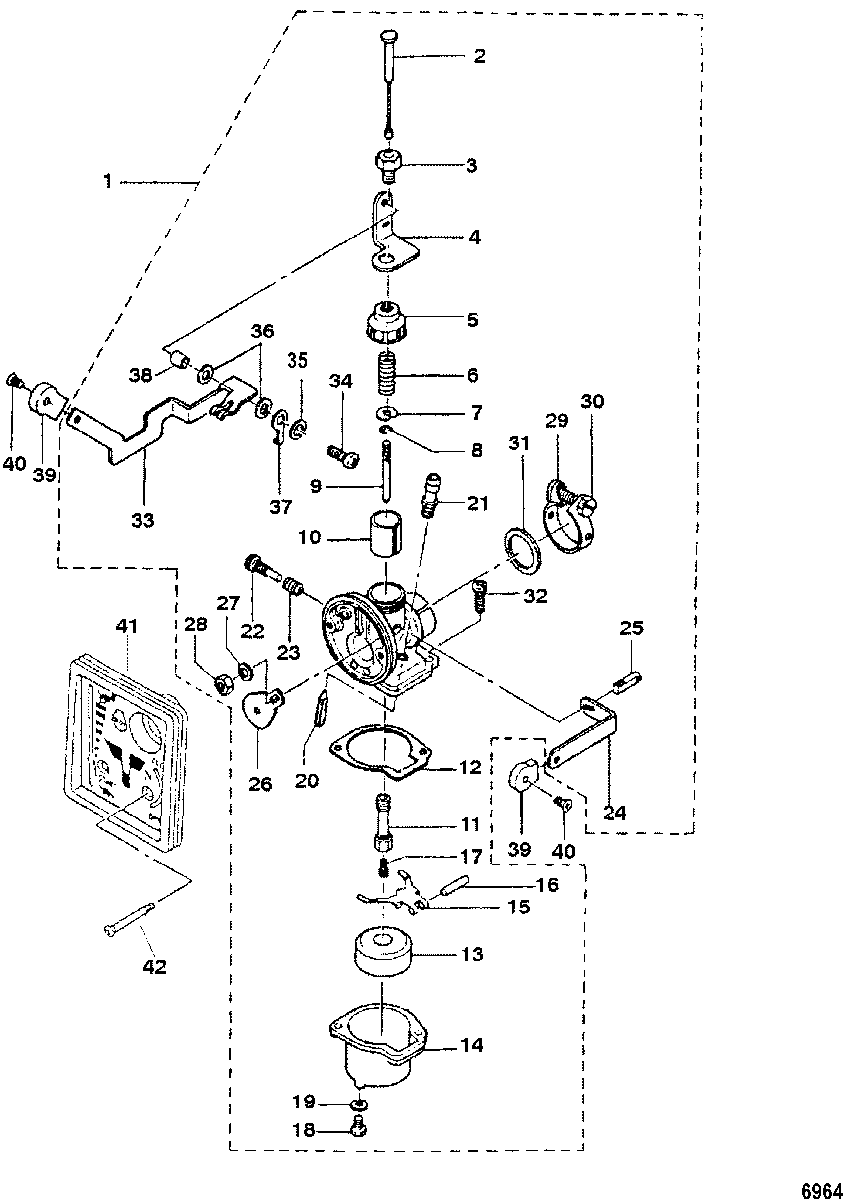

Carburetor для Mariner - 3.3 0P017000 THRU 0P400999
-
№АртикулНазвание
-
13303-823040T06 CARBURETOR ASSEMBLY
(2 HP)CARBURETOR ASSEMBLY
(2 HP) -
13303-823040A5 CARBURETOR ASSEMBLY
(2.5 HP)CARBURETOR ASSEMBLY
(2.5 HP) -
13303-823040A4 CARBURETOR ASSEMBLY
(3.3 HP)CARBURETOR ASSEMBLY
(3.3 HP) -
295252 THROTTLE WIRETHROTTLE WIRE
-
310-95321 BOLTBOLT
-
495253 BRACKETBRACKET
-
595254 CAPCAP
-
624-95322 SPRINGSPRING
-
795255 PLATEPLATE
-
853-95323 E-RINGE-RING
-
98151263 JET NEEDLEJET NEEDLE
-
1095257004 THROTTLE VALVE
(2 HP)THROTTLE VALVE
(2 HP) -
10952573 THROTTLE VALVE
(2.5 HP)THROTTLE VALVE
(2.5 HP) -
10952572 THROTTLE VALVE
(3.3 HP)THROTTLE VALVE
(3.3 HP) -
118151081 NEEDLE JETNEEDLE JET
-
1227-95324 GASKETGASKET
-
1395259 FLOATFLOAT
-
1495260 FLOAT BOWLFLOAT BOWL
-
15952621 HINGEHINGE
-
1617-95327 HINGE PINHINGE PIN
-
178150293 MAIN JET (#86)MAIN JET (#86)
-
1810-953251 DRAIN SCREWDRAIN SCREW
-
1927-95326 GASKETGASKET
-
20952631 NEEDLE VALVENEEDLE VALVE
-
21952641 SEAT-NEEDLE VALVESEAT-NEEDLE VALVE
-
2210-95328 SCREWSCREW
-
2324-95329 SPRINGSPRING
-
2495266 SHUTTER LEVERSHUTTER LEVER
-
2510-95331 SCREWSCREW
-
2695265 CHOKE PLATECHOKE PLATE
-
2713-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
2811-95330 NUTNUT
-
2954-95332 CLAMPCLAMP
-
3010-95333 SCREWSCREW
-
3125-811601 O-RINGO-RING
-
3210-815071 SCREWSCREW
-
3395268 THROTTLE LEVERTHROTTLE LEVER
-
3410-815072 SCREWSCREW
-
3513-95238 LOCKWASHERLOCKWASHER
-
3627-95336 GASKETGASKET
-
37952672 BRACKETBRACKET
-
3823-952867 COLLARCOLLAR
-
3995269 KNOBKNOB
-
4010-95338 SCREWSCREW
-
418150731 COVER
(2 HP)COVER
(2 HP) -
418150731 COVER
(2.5 HP)COVER
(2.5 HP) -
41815073 COVER
(3.3 HP)COVER
(3.3 HP) -
4210-95339 SCREWSCREW
-
-855546A4 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
