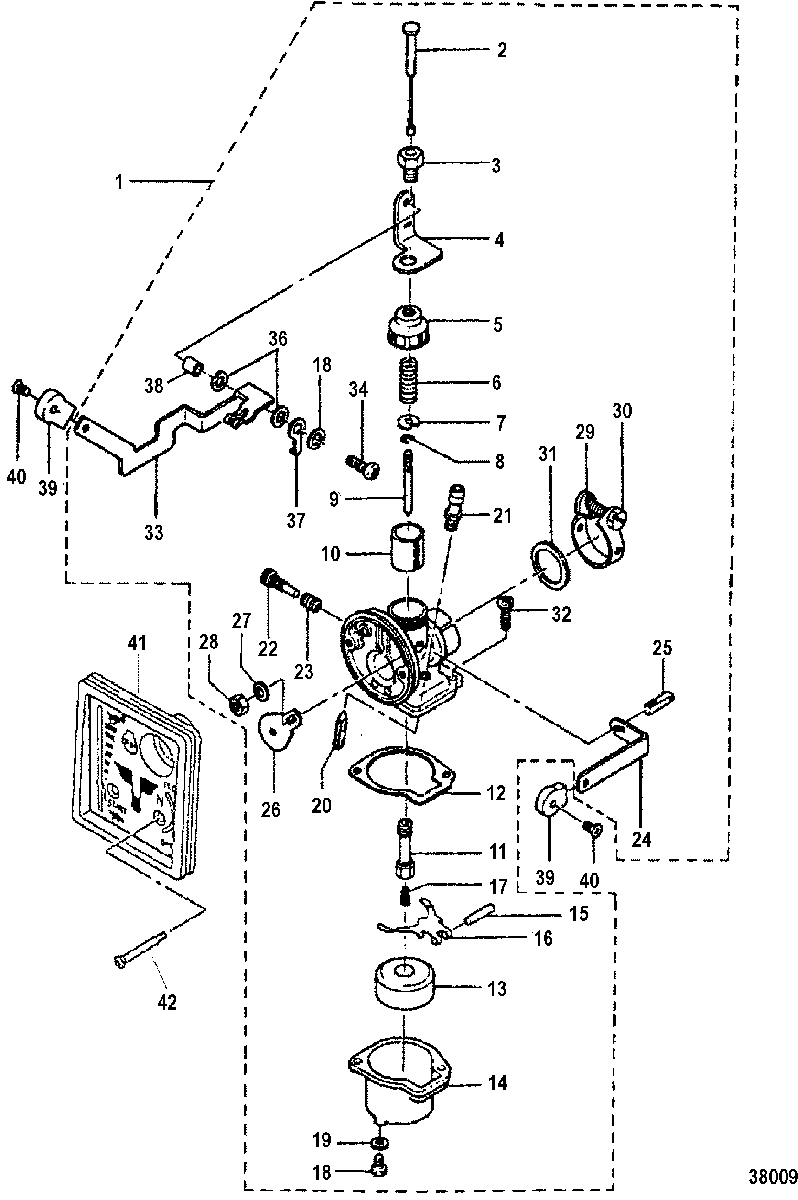

CARBURETOR для Mariner - 3.3 0D901217 THRU 0G710612

  • №
    Артикул
    Название
  • 1
    3303-8231752 CARBURETOR ASSEMBLY
    SN# USA-0G574241/BEL-9973099 & Below
    CARBURETOR ASSEMBLY
    SN# USA-0G574241/BEL-9973099 & Below
  • 1
    3303-823040A4 CARBURETOR ASSEMBLY
    SN# USA-0G574242/BEL-9973100 & Up
    CARBURETOR ASSEMBLY
    SN# USA-0G574242/BEL-9973100 & Up
  • 2
    95252 WIRE, Throttle
    WIRE, Throttle
  • 3
    10-95321 BOLT
    BOLT
  • 4
    95253 BRACKET
    BRACKET
  • 5
    95254 CAP
    CAP
  • 6
    24-95322 SPRING
    SPRING
  • 7
    95255 PLATE
    PLATE
  • 8
    53-95323 E RING
    E RING
  • 9
    823041 JET NEEDLE
    JET NEEDLE
  • 9
    8151261 JET NEEDLE
    JET NEEDLE
  • 9
    8151263 JET NEEDLE
    SN# USA-0G574242/BEL-9973100 & Up
    JET NEEDLE
    SN# USA-0G574242/BEL-9973100 & Up
  • 10
    95257 VALVE, Throttle
    SN# USA-0G574241/BEL-9973099 & Below
    VALVE, Throttle
    SN# USA-0G574241/BEL-9973099 & Below
  • 10
    952572 VALVE, Throttle
    SN# USA-0G574242/BEL-9973100 & Up
    VALVE, Throttle
    SN# USA-0G574242/BEL-9973100 & Up
  • 11
    815126A1 JET NEEDLE
    JET NEEDLE
  • 12
    27-95324 GASKET
    GASKET
  • 13
    95259 FLOAT
    FLOAT
  • 14
    95260 FLOAT BOWL
    FLOAT BOWL
  • 15
    17-95327 PIN, Hinge
    PIN, Hinge
  • 16
    95263A1 HINGE
    HINGE
  • 16
    952621 HINGE
    HINGE
  • 17
    815029 MAIN JET (#92)
    SN# USA-0G574241/BEL-9973099 & Below
    MAIN JET (#92)
    SN# USA-0G574241/BEL-9973099 & Below
  • 17
    8150291 MAIN JET (#80)
    SN# USA-0G574242/BEL-9973100 & Up
    MAIN JET (#80)
    SN# USA-0G574242/BEL-9973100 & Up
  • 18
    10-953251 SCREW
    SCREW
  • 19
    27-95326 GASKET
    GASKET
  • 19
    27-95326 GASKET
    GASKET
  • 20
    95263A1 HINGE
    HINGE
  • 20
    952631 NEEDLE VALVE
    NEEDLE VALVE
  • 21
    NSS NOT SOLD SEPARATE, SEAT, Needle Valve
    NOT SOLD SEPARATE, SEAT, Needle Valve
  • 21
    952641 SEAT, Needle Valve
    SEAT, Needle Valve
  • 22
    10-95328 SCREW
    SCREW
  • 23
    24-95329 SPRING
    SPRING
  • 24
    95266 LEVER, Shutter
    LEVER, Shutter
  • 25
    10-95331 SCREW
    SCREW
  • 26
    95265 PLATE, Choke
    PLATE, Choke
  • 27
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 28
    11-95330 NUT
    NUT
  • 29
    54-95332 CLAMP
    CLAMP
  • 30
    10-95333 SCREW
    SCREW
  • 31
    25-811601 O-RING
    O-RING
  • 32
    10-815071 SCREW
    SCREW
  • 33
    95268 LEVER, Throttle
    LEVER, Throttle
  • 34
    10-815072 SCREW
    SCREW
  • 35
    13-95238 LOCKWASHER
    LOCKWASHER
  • 36
    27-95336 GASKET
    GASKET
  • 37
    23-952867 BRACKET
    BRACKET
  • 37
    952672 BRACKET
    BRACKET
  • 38
    23-952867 COLLAR
    SN# USA-0G574242/BEL-9973100 & Up
    COLLAR
    SN# USA-0G574242/BEL-9973100 & Up
  • 38
    952672 COLLAR
    SN# USA-0G574241/BEL-9973099 & Below
    COLLAR
    SN# USA-0G574241/BEL-9973099 & Below
  • 39
    95269 KNOB
    KNOB
  • 40
    10-95338 SCREW
    SCREW
  • 41
    815073 COVER (BLACK)
    COVER (BLACK)
  • 41
    815132 COVER (GRAY)
    COVER (GRAY)
  • 42
    10-95339 SCREW
    SCREW
  • -
    855546A3 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
  • -
    27-898101928 GASKET SET, Powerhead
    (NON SHIFT)
    GASKET SET, Powerhead
    (NON SHIFT)
