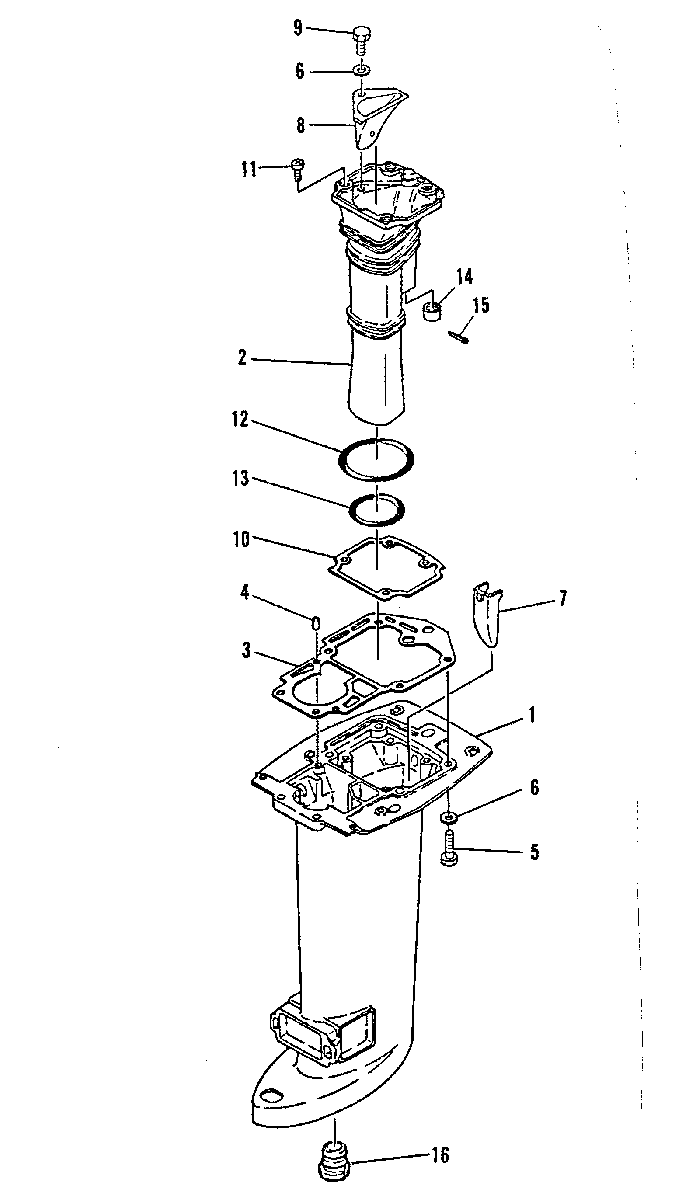

DRIVESHAFT HOUSING для Mariner - 30A 689-530101 AND UP

  • №
    Артикул
    Название
  • 1
    1587-9244M DRIVESHAFT HOUSING (SHORT)
    MS-235090 ML-535640 ES-251315 EL-553065 & UP
    DRIVESHAFT HOUSING (SHORT)
    MS-235090 ML-535640 ES-251315 EL-553065 & UP
  • 1
    1587-7843M DRIVESHAFT HOUSING (LONG)
    MS-235090 ML-535640 ES-251315 EL-553065 & UP
    DRIVESHAFT HOUSING (LONG)
    MS-235090 ML-535640 ES-251315 EL-553065 & UP
  • 2
    811170M EXHAUST MANIFOLD
    EXHAUST MANIFOLD
  • 3
    27-84775 GASKET
    GASKET
  • 4
    17-82364M DOWEL PIN
    DOWEL PIN
  • 5
    10-95416M BOLT
    BOLT
  • 6
    12-82217M WASHER
    WASHER
  • 7
    84776M GUIDE (SHORT)
    GUIDE (SHORT)
  • 7
    84777M GUIDE (LONG)
    GUIDE (LONG)
  • 8
    84778M EXHAUST GUIDE
    EXHAUST GUIDE
  • 9
    10-95206M BOLT
    BOLT
  • 10
    27-826991M GASKET
    GASKET
  • 11
    10-83870M SCREW
    SCREW
  • 12
    26-84781M SEAL (UPPER)
    SEAL (UPPER)
  • 13
    26-84781M SEAL (LOWER)
    SEAL (LOWER)
  • 14
    26-97635M SEAL (SHORT)
    SEAL (SHORT)
  • 14
    26-84782M SEAL (LONG)
    SEAL (LONG)
  • 15
    18-82132M COTTER PIN
    COTTER PIN
  • 16
    26-43114M SEAL
    SEAL
  • 1
    1587-826990A4 DRIVESHAFT HOUSING (SHORT)
    MS-235091 ML-535641 ES-251316 EL-553066 & UP
    DRIVESHAFT HOUSING (SHORT)
    MS-235091 ML-535641 ES-251316 EL-553066 & UP
  • 1
    1587-827111A13 DRIVESHAFT HOUSING (LONG)
    MS-235091 ML-535641 ES-251316 EL-553066 & UP
    DRIVESHAFT HOUSING (LONG)
    MS-235091 ML-535641 ES-251316 EL-553066 & UP
  • 17
    827177M DAMPER
    MS-235091 ML-535641 ES-251316 EL-553066 & UP
    DAMPER
    MS-235091 ML-535641 ES-251316 EL-553066 & UP
