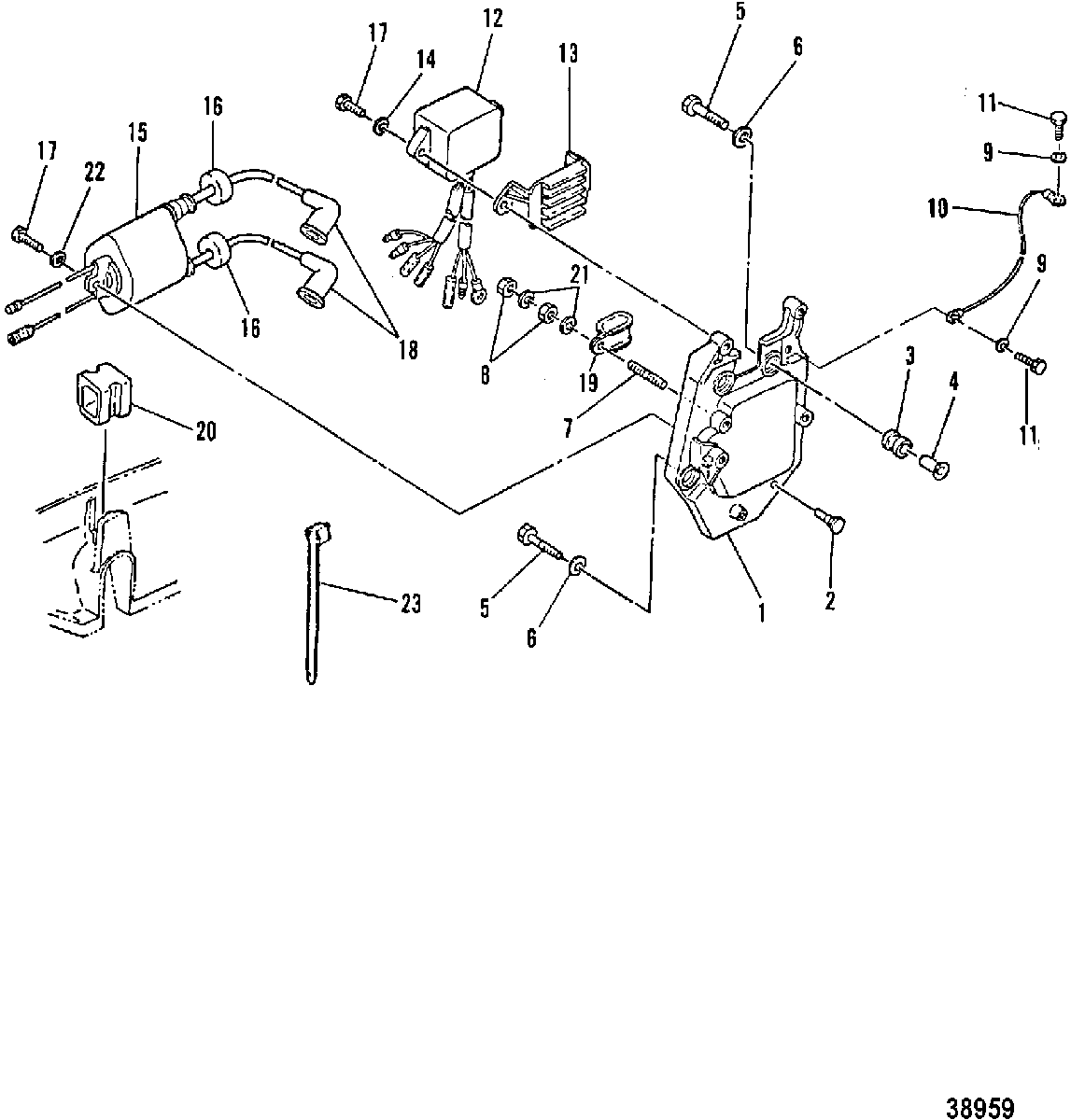

C.D.I. IGNITION COMPONENTS для Mariner - 30A 689-105325 THRU 689-530100 (ML)

  • №
    Артикул
    Название
  • 1
    84868M BRACKET, C.D.I. UNIT MOUNTING
    BRACKET, C.D.I. UNIT MOUNTING
  • 2
    84869M DAMPER
    DAMPER
  • 3
    25-881304 DAMPER
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
    DAMPER
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
  • 3
    81523M DAMPER
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
    DAMPER
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
  • 4
    23-804344003 BUSHING
    BUSHING
  • 5
    10-82405M BOLT
    BOLT
  • 6
    12-83769M WASHER
    WASHER
  • 7
    16-84870M STUD
    STUD
  • 8
    11-82389M NUT
    NUT
  • 9
    13-82212M LOCKWASHER
    LOCKWASHER
  • 10
    84-84871M WIRE, GROUND
    WIRE, GROUND
  • 11
    10-91772M BOLT
    BOLT
  • 12
    84872T CDI UNIT ASSEMBLY
    CDI UNIT ASSEMBLY
  • 13
    84873M BRACKET, C.D.I. UNIT
    BRACKET, C.D.I. UNIT
  • 14
    12-82214M WASHER
    WASHER
  • 15
    84874T COIL, Ignition
    COIL, Ignition
  • 16
    25-82069M GROMMET
    GROMMET
  • 17
    10-82405M BOLT
    BOLT
  • 18
    85-815119M CAP, Spark Plug, NOISE SUPPRESSOR
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
    CAP, Spark Plug, NOISE SUPPRESSOR
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
  • 18
    85-815119M PROTECTER, NOISE SUPPRESSOR
    SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below
    PROTECTER, NOISE SUPPRESSOR
    SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below
  • 18
    85-63709A1 CAP ASSEMBLY, Spark Plug
    CAP ASSEMBLY, Spark Plug
  • 19
    54-96653M CLAMP, WIRE
    CLAMP, WIRE
  • 20
    25-84876M GROMMET
    GROMMET
  • 21
    13-82212M LOCKWASHER
    LOCKWASHER
  • 22
    12-82214M WASHER
    SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up
    WASHER
    SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up
  • 23
    81541M BAND, SWITCH CORD
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
    BAND, SWITCH CORD
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
