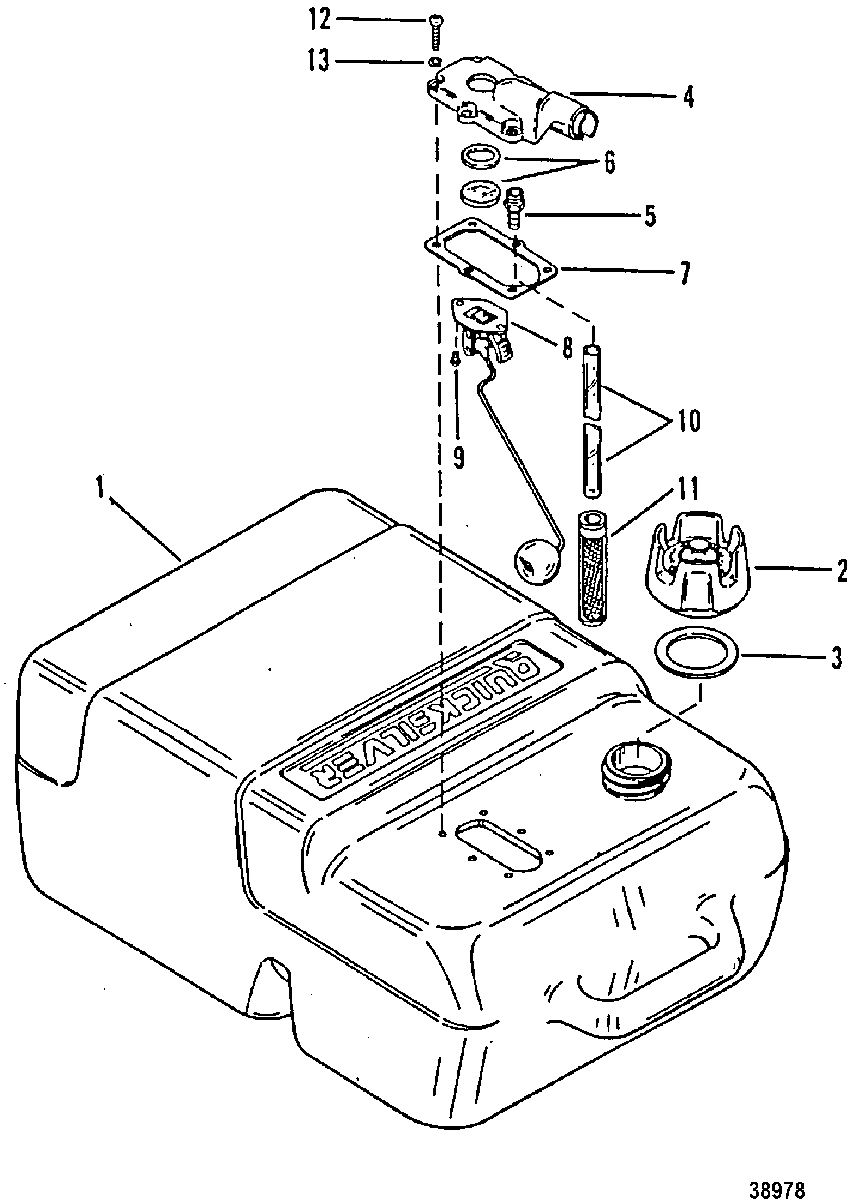

FUEL TANK(PLASTIC-6.6 GALLON-NOT ORIGINAL EQUIPMENT TANK) для Mariner - 30A 689-022059 THRU 689-230100 (M)

  • №
    Артикул
    Название
  • 1
    1259-812410A1 TANK ASSEMBLY, Fuel (PLASTIC-6.6 GAL.)
    TANK ASSEMBLY, Fuel (PLASTIC-6.6 GAL.)
  • 2
    36-816976Q1 CAP ASSEMBLY, Fuel
    CAP ASSEMBLY, Fuel
  • 3
    27-8169771 GASKET, FILLER CAP
    GASKET, FILLER CAP
  • 4
    17792A1 BODY ASSEMBLY, PickUp
    BODY ASSEMBLY, PickUp
  • 5
    22-826178 ADAPTOR
    ADAPTOR
  • 6
    98542A1 WINDOW ASSEMBLY
    WINDOW ASSEMBLY
  • 7
    27-18026 GASKET, PICK-UP BODY
    GASKET, PICK-UP BODY
  • 8
    17971A2 GAUGE ASSEMBLY, Fuel
    GAUGE ASSEMBLY, Fuel
  • 9
    10-62568 SCREW, (#10-16 x .375), FUEL GAUGE
    SCREW, (#10-16 x .375), FUEL GAUGE
  • 10
    32-827756A1 HOSE
    HOSE
  • 11
    35-823534 FILTER
    FILTER
  • 12
    10-18027 SCREW, (.190-24), PICK-UP BODY
    SCREW, (.190-24), PICK-UP BODY
  • 13
    12-29070 WASHER, PICK-UP BODY SCREW
    WASHER, PICK-UP BODY SCREW
