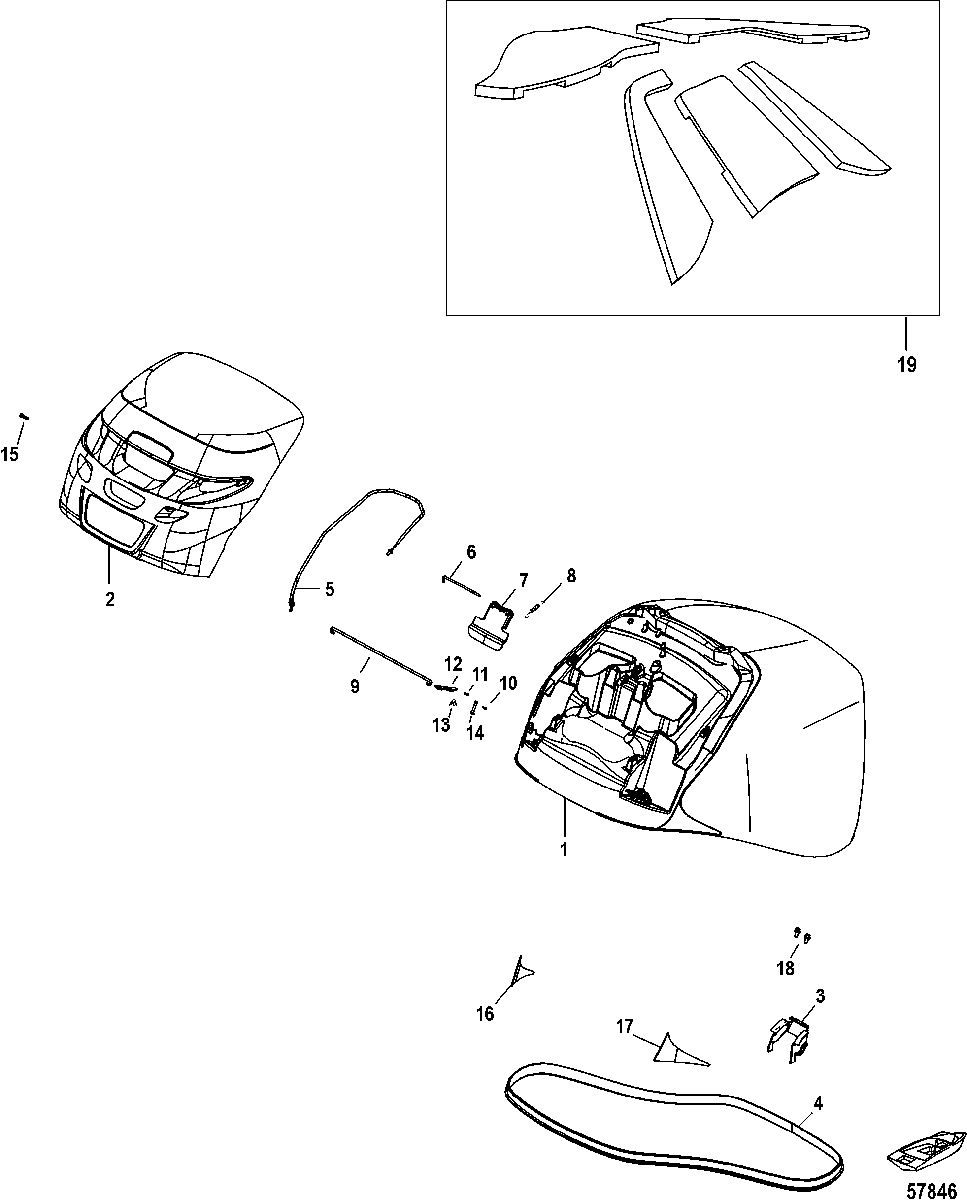

Top Cowl для Mariner - 300 VERADO (4-STROKE)(6 CYL.) 2B144123 & Up

  • №
    Артикул
    Название
  • 1
    100-8M0113905 TOP COWL ASSEMBLY, Mercury, Decaled
    TOP COWL ASSEMBLY, Mercury, Decaled
  • 1
    100-8M0113906 TOP COWL ASSEMBLY, Cold Fusion, Decaled
    TOP COWL ASSEMBLY, Cold Fusion, Decaled
  • 1
    100-8M0113907 TOP COWL ASSEMBLY, Warm Fusion, Decaled
    TOP COWL ASSEMBLY, Warm Fusion, Decaled
  • 1
    100-8M0113910 TOP COWL ASSEMBLY, Mariner Decaled
    TOP COWL ASSEMBLY, Mariner Decaled
  • 1
    100-8M0113902 TOP COWL ASSEMBLY, Mercury, Non-Decaled
    TOP COWL ASSEMBLY, Mercury, Non-Decaled
  • 1
    100-8M0113904 TOP COWL ASSEMBLY, Warm Fusion, Non-Decaled
    TOP COWL ASSEMBLY, Warm Fusion, Non-Decaled
  • 1
    100-8M0113903 TOP COWL ASSEMBLY, Cold Fusion, Non-Decaled
    TOP COWL ASSEMBLY, Cold Fusion, Non-Decaled
  • 1
    100-8M0113909 TOP COWL ASSEMBLY, Mariner, Non-Decaled
    TOP COWL ASSEMBLY, Mariner, Non-Decaled
  • 2
    885354T01 CAP, Air Dam, Mercury, Black
    CAP, Air Dam, Mercury, Black
  • 2
    8M0090474 CAP, Air Dam, Cold Fusion
    CAP, Air Dam, Cold Fusion
  • 2
    8M0090475 CAP, Air Dam, Warm Fusion
    CAP, Air Dam, Warm Fusion
  • 2
    895838T01 CAP, Air Dam - Mariner
    CAP, Air Dam - Mariner
  • 3
    888971 FRONT LATCH RECEIVER
    FRONT LATCH RECEIVER
  • 4
    8M0111178 SEAL
    SEAL
  • 5
    8M0127199 CABLE, Latch
    CABLE, Latch
  • 6
    17-888959 PIN, Hinge
    PIN, Hinge
  • 7
    888956 LATCH, Hand Lever
    LATCH, Hand Lever
  • 8
    24-895373 SPRING
    SPRING
  • 9
    888955 LINK, Latch Connecting
    LINK, Latch Connecting
  • 10
    18-26953 COTTER PIN
    COTTER PIN
  • 11
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 12
    888952 LINKAGE ARM
    LINKAGE ARM
  • 13
    24-888953 SPRING
    SPRING
  • 14
    17-822417 PIN
    PIN
  • 15
    10-897678020 SCREW, (M4 x 20mm)
    SCREW, (M4 x 20mm)
  • 16
    8M0033614 APPLIQUE, Port, Mercury
    APPLIQUE, Port, Mercury
  • 16
    8M0088807 APPLIQUE, Port, Cold Fusion
    APPLIQUE, Port, Cold Fusion
  • 16
    8M0088808 APPLIQUE, Port, Warm Fusion
    APPLIQUE, Port, Warm Fusion
  • 16
    8M0033604 APPLIQUE, Port, Mariner
    APPLIQUE, Port, Mariner
  • 17
    8M0033615 APPLIQUE, Starboard, Mercury
    APPLIQUE, Starboard, Mercury
  • 17
    8M0088809 APPLIQUE, Starboard, Cold Fusion
    APPLIQUE, Starboard, Cold Fusion
  • 17
    8M0088810 APPLIQUE, Starboard, Warm Fusion
    APPLIQUE, Starboard, Warm Fusion
  • 17
    8M0033603 APPLIQUE, Starboard, Mariner
    APPLIQUE, Starboard, Mariner
  • 18
    10-8M0103804 SCREW, (M6 x 12 MM) Stainless Steel
    SCREW, (M6 x 12 MM) Stainless Steel
  • 19
    8M4501639 SOUND BLANKET KIT
    SOUND BLANKET KIT
