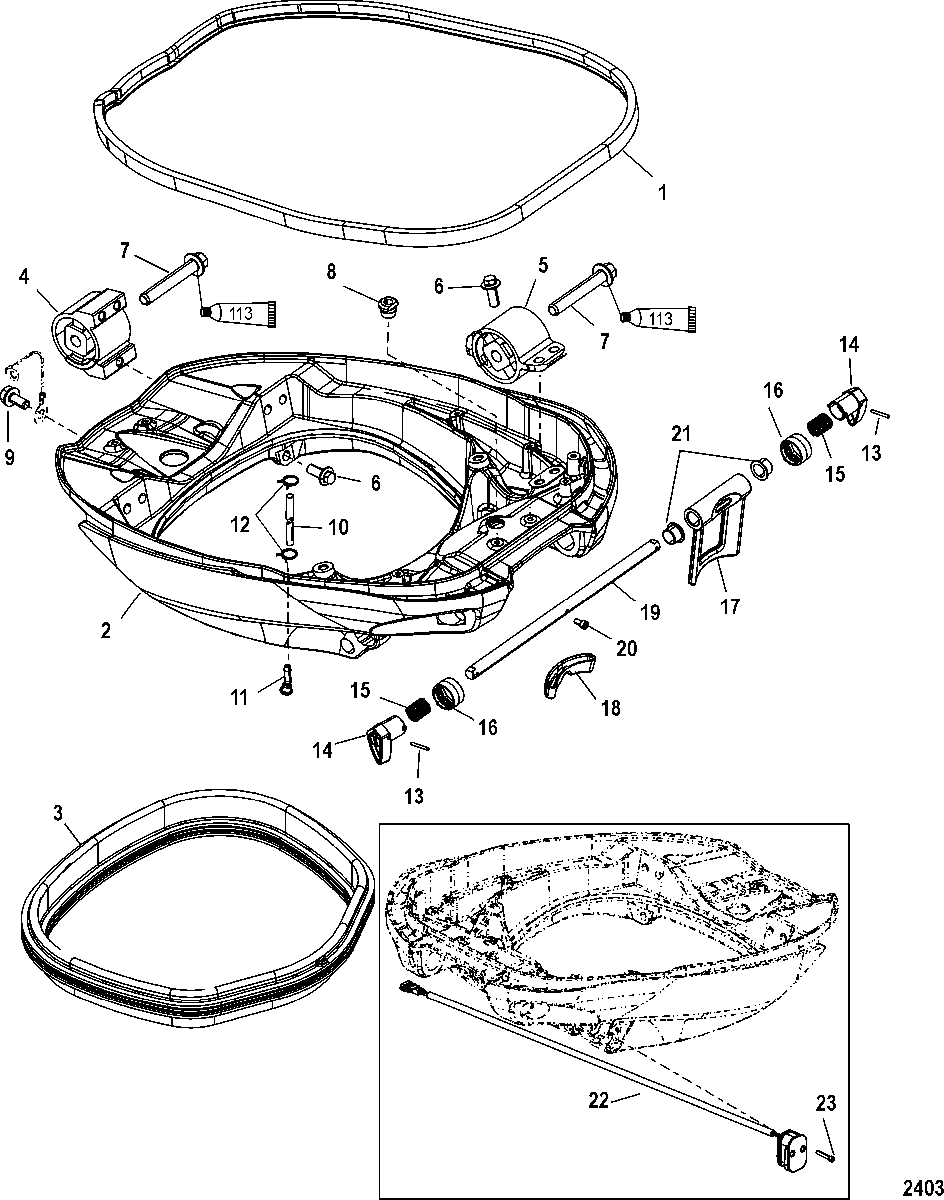

Mount Cradle для Mariner - 300 PRO VERADO (4-STROKE)(6 CYL.) 1B830170 THRU 2B144122

  • №
    Артикул
    Название
  • 1
    8M0109275 SEAL
    SEAL
  • 2
    8M0052577 CRADLE ASSEMBLY, Mount
    CRADLE ASSEMBLY, Mount
  • 3
    NSS NOT SOLD SEPARATE, Seal
    NOT SOLD SEPARATE, Seal
  • 4
    8M0103708 MOUNT, Rear
    MOUNT, Rear
  • 5
    8M0103365 MOUNT, Front
    MOUNT, Front
  • 6
    10-889745030 SCREW, (M12 x 30)
    SCREW, (M12 x 30)
  • 7
    10-8M0103832 SCREW, (M16 x 90)
    SCREW, (M16 x 90)
  • 8
    25-12602002 GROMMET
    GROMMET
  • 9
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    SCREW, (M6 x 13) Stainless Steel
  • 10
    32-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 35 Inches
    HOSE, (57.00 Inches Bulk), Cut to 35 Inches
  • 11
    22-895797001 FITTING, Telltale
    FITTING, Telltale
  • 12
    54-895851 CLAMP, (8.00 Inches)
    CLAMP, (8.00 Inches)
  • 13
    17-73194 PIN, Roll (.125 x 1.12)
    PIN, Roll (.125 x 1.12)
  • 14
    880649002 LEVER, Tilt Lock
    LEVER, Tilt Lock
  • 15
    24-47968 SPRING
    SPRING
  • 16
    889540A03 CLUTCH KIT
    CLUTCH KIT
  • 17
    8M0109693 BRACKET, Tilt Lock
    BRACKET, Tilt Lock
  • 18
    8M0076907 PAD, Tilt Lock
    PAD, Tilt Lock
  • 19
    880650003 SHAFT, Tilt Lock
    SHAFT, Tilt Lock
  • 20
    10-889546 SCREW, (M5 x 10)
    SCREW, (M5 x 10)
  • 21
    31-8806641 BEARING, (.625 Inch)
    BEARING, (.625 Inch)
  • 22
    8M0010626 SENSOR, Trim Position-Black
    SENSOR, Trim Position-Black
  • 23
    10-889547 SCREW, (M5 x 30)
    SCREW, (M5 x 30)
