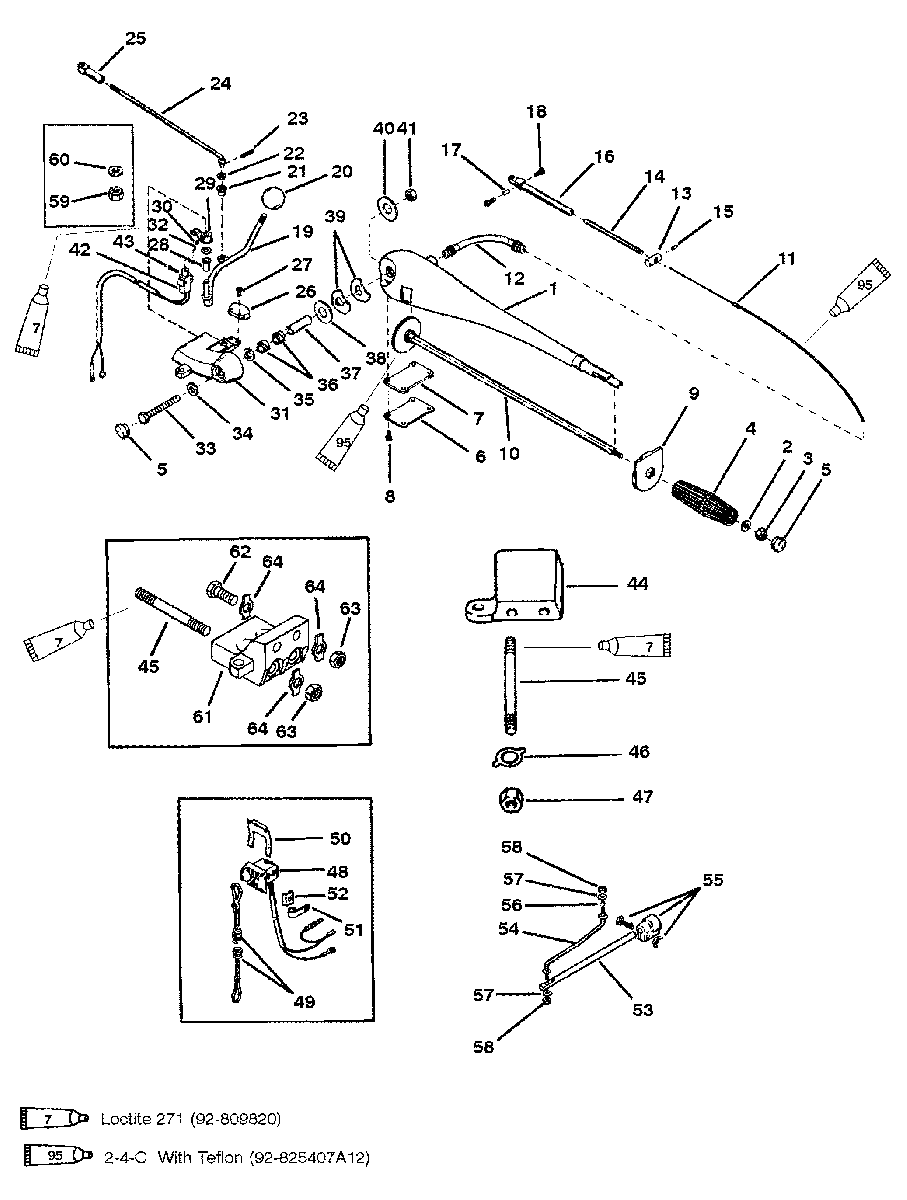

STEERING HANDLE ASSEMBLY для Mariner - 30 JET 0C159200 THRU 0G589999

  • №
    Артикул
    Название
  • 1
    48405A2 STEERING HANDLE ARM
    (BLACK)
    STEERING HANDLE ARM
    (BLACK)
  • 1
    48405A3 STEERING HANDLE ARM
    (GRAY)
    STEERING HANDLE ARM
    (GRAY)
  • 1
    48405A4 STEERING HANDLE ARM
    (TRACKER GRAPHITE GRAY)
    STEERING HANDLE ARM
    (TRACKER GRAPHITE GRAY)
  • 2
    12-69056 WASHER-STEERING HANDLE ARM
    WASHER-STEERING HANDLE ARM
  • 3
    11-826709109 NUT-STEERING HANDLE ARM
    NUT-STEERING HANDLE ARM
  • 4
    58192A1 GRIP-STEERING HANDLE ARM
    GRIP-STEERING HANDLE ARM
  • 5
    48416T CAP-STEERING HANDLE
    CAP-STEERING HANDLE
  • 6
    48519 PLATE-COVER-DRIVE WHEEL
    PLATE-COVER-DRIVE WHEEL
  • 7
    27-48518 GASKET-COVER PLATE
    GASKET-COVER PLATE
  • 8
    10-878608 SCREW-COVER PLATE (1/2 IN.)
    SCREW-COVER PLATE (1/2 IN.)
  • 8
    10-878609 SCREW-COVER PLATE (3/8 IN.)
    SCREW-COVER PLATE (3/8 IN.)
  • 9
    48414 HOUSING-DRIVE WHEEL
    HOUSING-DRIVE WHEEL
  • 10
    48516A1 DRIVE WHEEL AND ROD
    DRIVE WHEEL AND ROD
  • 11
    41105 THROTTLE CABLE
    THROTTLE CABLE
  • 12
    8885242 CONDUIT-CABLE
    CONDUIT-CABLE
  • 13
    89578 CONNECTOR-CONTROL LINKAGE
    CONNECTOR-CONTROL LINKAGE
  • 14
    8M0026078 TUBE-THROTTLE CABLE GUIDE
    TUBE-THROTTLE CABLE GUIDE
  • 15
    10-824081 SCREW-SET
    SCREW-SET
  • 16
    43433 GUIDE-THROTTLE CABLE
    GUIDE-THROTTLE CABLE
  • 17
    20007 ANCHOR-THROTTLE CABLE
    ANCHOR-THROTTLE CABLE
  • 18
    10-20518 SCREW-THROTTLE CABLE ANCHOR
    SCREW-THROTTLE CABLE ANCHOR
  • 19
    14690 SHIFT LEVER
    (ELECTRIC HANDLE) (USE W/REF. #44)
    SHIFT LEVER
    (ELECTRIC HANDLE) (USE W/REF. #44)
  • 19
    485681 SHIFT LEVER
    (MANUAL HANDLE) (USE W/REF. #44)
    SHIFT LEVER
    (MANUAL HANDLE) (USE W/REF. #44)
  • 19
    485684 SHIFT LEVER
    (USE W/REF. #61)
    SHIFT LEVER
    (USE W/REF. #61)
  • 20
    98530 KNOB-SHIFT LEVER
    KNOB-SHIFT LEVER
  • 21
    23-48475 BUSHLNG-NYLON (1/4 IN. I.D.)
    BUSHLNG-NYLON (1/4 IN. I.D.)
  • 22
    12-35950 WASHER-SHIFT ROD
    WASHER-SHIFT ROD
  • 23
    18-25191 COTTER PIN-SHIFT ROD
    COTTER PIN-SHIFT ROD
  • 24
    8128062 SHIFT ROD
    (USE W/REF. #44)
    SHIFT ROD
    (USE W/REF. #44)
  • 24
    8128064 SHIFT ROD
    (USE W/REF. #61)
    SHIFT ROD
    (USE W/REF. #61)
  • 25
    813565 ROD END-SHIFT ROD
    ROD END-SHIFT ROD
  • 26
    78812A1 DETENT-SHIFT LEVER
    DETENT-SHIFT LEVER
  • 27
    10-878609 SCREW-SHIFT LEVER DETENT
    SCREW-SHIFT LEVER DETENT
  • 28
    23-48237 BUSHING-NYLON (3/8 IN. I.D.)
    BUSHING-NYLON (3/8 IN. I.D.)
  • 29
    17459A2 ACTUATOR ASSEMBLY
    ELECTRIC HANDLE
    ACTUATOR ASSEMBLY
    ELECTRIC HANDLE
  • 30
    10-824081 SET SCREW
    ELECTRIC HANDLE
    SET SCREW
    ELECTRIC HANDLE
