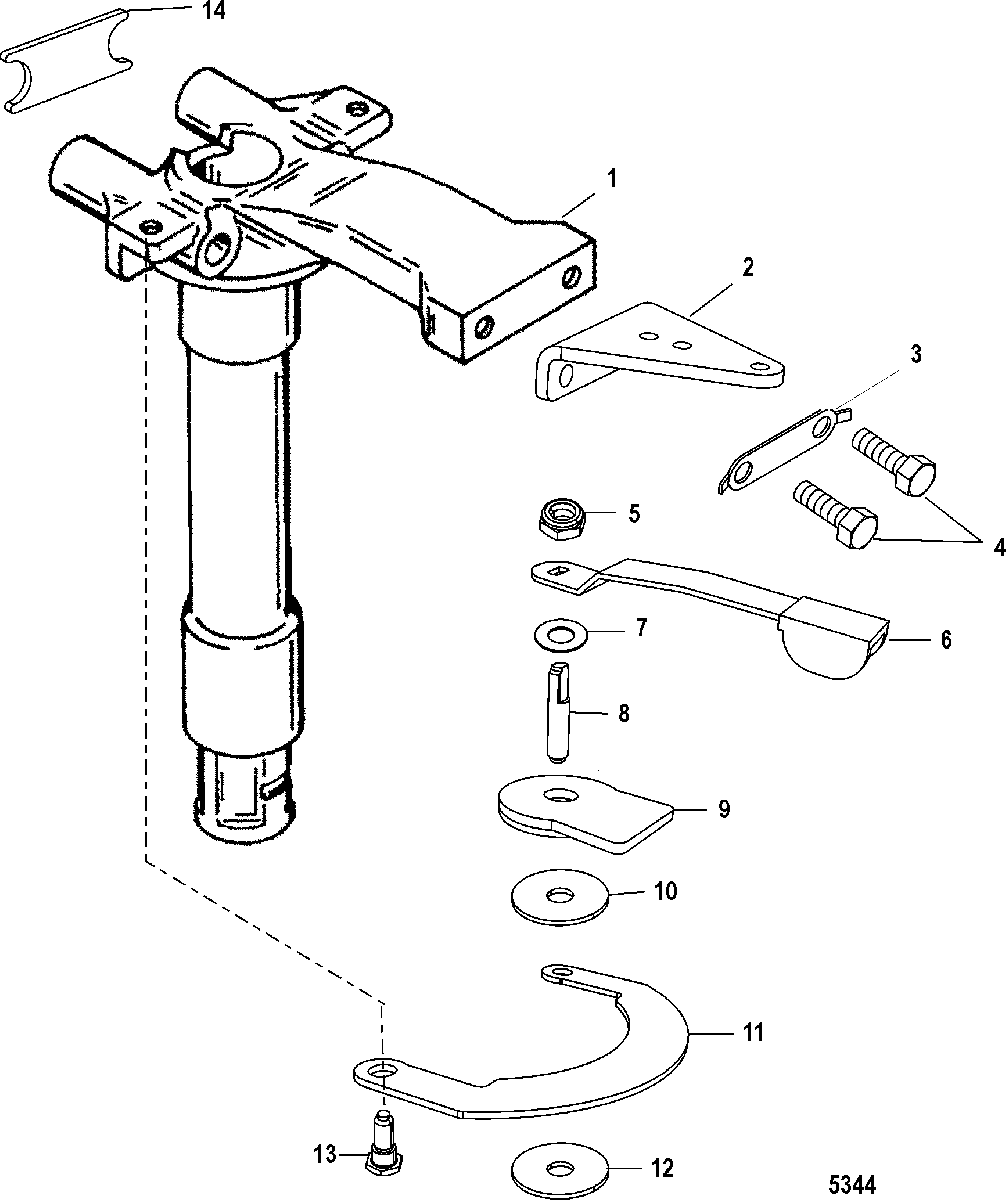

Swivel Tube для Mariner - 30 JET (3 CYL.) 0G760300 THRU 0T408999

  • №
    Артикул
    Название
  • 1
    821769T1 SWIVEL TUBE HEAD, Black
    SWIVEL TUBE HEAD, Black
  • 1
    821769T1 SWIVEL TUBE HEAD, Gray
    SWIVEL TUBE HEAD, Gray
  • 2
    893696 BRACKET
    (Non-Handle)
    BRACKET
    (Non-Handle)
  • 3
    14-8M0009820 TAB WASHER
    (Non-Handle)
    TAB WASHER
    (Non-Handle)
  • 4
    10-4000377 SCREW, (M10 x 30)
    (Non-Handle)
    SCREW, (M10 x 30)
    (Non-Handle)
  • 5
    11-8M0042636 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
  • 6
    823792 LEVER
    LEVER
  • 7
    12-29330 WASHER
    WASHER
  • 8
    821961 ROD (Threaded)
    ROD (Threaded)
  • 9
    821957 BRAKE PLATE
    BRAKE PLATE
  • 10
    8165621 DISC
    DISC
  • 11
    8M0007471 PLATE
    PLATE
  • 12
    8165621 DISC
    DISC
  • 13
    10-768042 SHOULDER SCREW, Hex
    SHOULDER SCREW, Hex
  • 14
    826658 BUMPER
    BUMPER
