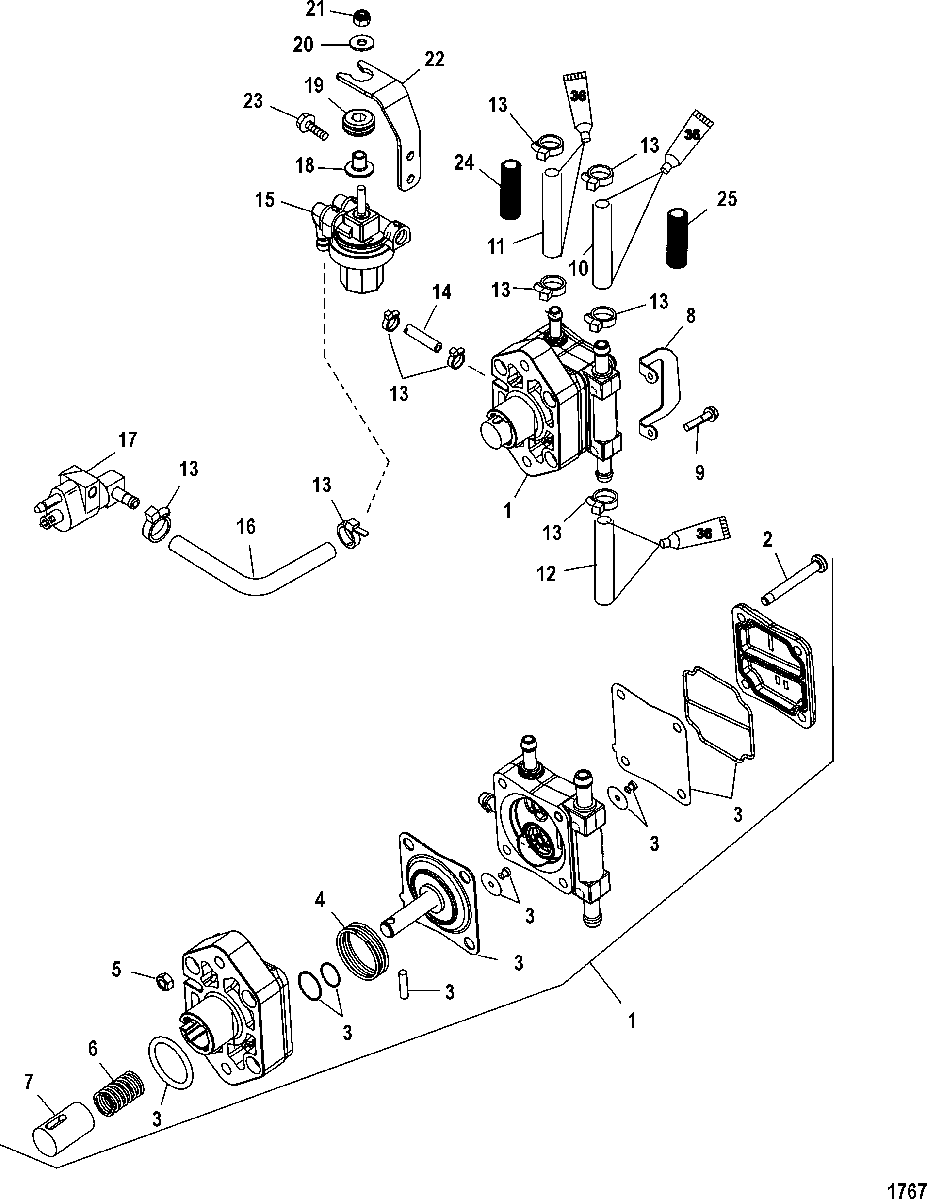

Fuel Pump для Mariner - 30 EFI (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    8M0141827 PUMP, Fuel
    SN# 0T939654 & Below
    PUMP, Fuel
    SN# 0T939654 & Below
  • 1
    8M0141827 PUMP, Fuel
    SN# 0P301503 & Below
    PUMP, Fuel
    SN# 0P301503 & Below
  • 1
    8M0141827 PUMP, Fuel
    SN# 0T939655 THRU 1B050000
    PUMP, Fuel
    SN# 0T939655 THRU 1B050000
  • 1
    8M0141827 PUMP, Fuel
    SN# 0P301503 THRU 0P340403
    PUMP, Fuel
    SN# 0P301503 THRU 0P340403
  • 1
    8M0141827 PUMP ASSEMBLY, Fuel
    (Sold Complete Only) SN# 1B050001 & Up
    PUMP ASSEMBLY, Fuel
    (Sold Complete Only) SN# 1B050001 & Up
  • 1
    8M0141827 PUMP ASSEMBLY, Fuel
    (Sold Complete Only) SN# 0P340404 & Up
    PUMP ASSEMBLY, Fuel
    (Sold Complete Only) SN# 0P340404 & Up
  • 2
    10-883517 SCREW
    SN# 1B050000 & Below
    SCREW
    SN# 1B050000 & Below
  • 2
    10-883517 SCREW
    SN# 0P340403 & Below
    SCREW
    SN# 0P340403 & Below
  • 3
    883520A1 DIAPHRAGM KIT
    SN# 1B050000 & Below
    DIAPHRAGM KIT
    SN# 1B050000 & Below
  • 3
    883520A1 DIAPHRAGM KIT
    SN# 0P340403 & Below
    DIAPHRAGM KIT
    SN# 0P340403 & Below
  • 4
    24-8835181 SPRING
    SN# 1B050000 & Below
    SPRING
    SN# 1B050000 & Below
  • 4
    24-8835181 SPRING
    SN# 0P340403 & Below
    SPRING
    SN# 0P340403 & Below
  • 5
    11-883519 NUT
    SN# 1B050000 & Below
    NUT
    SN# 1B050000 & Below
  • 5
    11-883519 NUT
    SN# 0P340403 & Below
    NUT
    SN# 0P340403 & Below
  • 6
    24-883518A03 SPRING
    SN# 0T939654 & Below
    SPRING
    SN# 0T939654 & Below
  • 6
    24-883518A03 SPRING
    SN# 0P301503 & Below
    SPRING
    SN# 0P301503 & Below
  • 6
    24-883518A03 SPRING
    SN# 0T939655 THRU 1B050000
    SPRING
    SN# 0T939655 THRU 1B050000
  • 6
    24-883518A03 SPRING
    SN# 0P301503 THRU 0P340403
    SPRING
    SN# 0P301503 THRU 0P340403
  • 7
    NSS NOT SOLD SEPARATE, Cap
    SN# 0T939655 THRU 1B050000
    NOT SOLD SEPARATE, Cap
    SN# 0T939655 THRU 1B050000
  • 8
    8M0007776 DEFLECTOR, Cowl
    DEFLECTOR, Cowl
  • 9
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 10
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk), To VST Cooler (Cut to 29 IN.)
    SN# USA-0T939654 & Below
    TUBING, (.312) (70.00 Inches Bulk), To VST Cooler (Cut to 29 IN.)
    SN# USA-0T939654 & Below
  • 10
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk), To VST Cooler (Cut to 31 IN.)
    SN# USA-0T939654 & Up
    TUBING, (.312) (70.00 Inches Bulk), To VST Cooler (Cut to 31 IN.)
    SN# USA-0T939654 & Up
  • 11
    32-8M0108355 HOSE, (57.00 Inches Bulk), To Vapor Separator Cover (Cut to 16 IN.)
    HOSE, (57.00 Inches Bulk), To Vapor Separator Cover (Cut to 16 IN.)
  • 12
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk), To Telltale (Cut to 6 IN.)
    TUBING, (.312) (70.00 Inches Bulk), To Telltale (Cut to 6 IN.)
  • 13
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 14
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 8 IN.)
    HOSE, (57.00 Inches Bulk) (Cut to 8 IN.)
  • 15
    35-879884T FILTER, Fuel
    FILTER, Fuel
  • 16
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 38 IN.)
    HOSE, (57.00 Inches Bulk) (Cut to 38 IN.)
  • 17
    22-816856A4 CONNECTOR ASSEMBLY, Fuel
    CONNECTOR ASSEMBLY, Fuel
  • 18
    23-856954 BUSHING
    BUSHING
  • 19
    25-834985 GROMMET
    GROMMET
  • 20
    12-4002316 WASHER
    WASHER
  • 21
    11-401196 NUT, (M6)
    NUT, (M6)
  • 22
    893772 BRACKET
    BRACKET
  • 23
    10-40011126 SCREW, (M6 x 13) Stainless Steel
    (NON-HANDLE)
    SCREW, (M6 x 13) Stainless Steel
    (NON-HANDLE)
  • 24
    32-828547T1 CONDUIT, (.500 Inside Diameter x 3.00 Feet Bulk) (13 IN.)
    CONDUIT, (.500 Inside Diameter x 3.00 Feet Bulk) (13 IN.)
  • 25
    32-828547T1 CONDUIT, (.500 Inside Diameter x 3.00 Feet Bulk) (26 IN.)
    CONDUIT, (.500 Inside Diameter x 3.00 Feet Bulk) (26 IN.)
