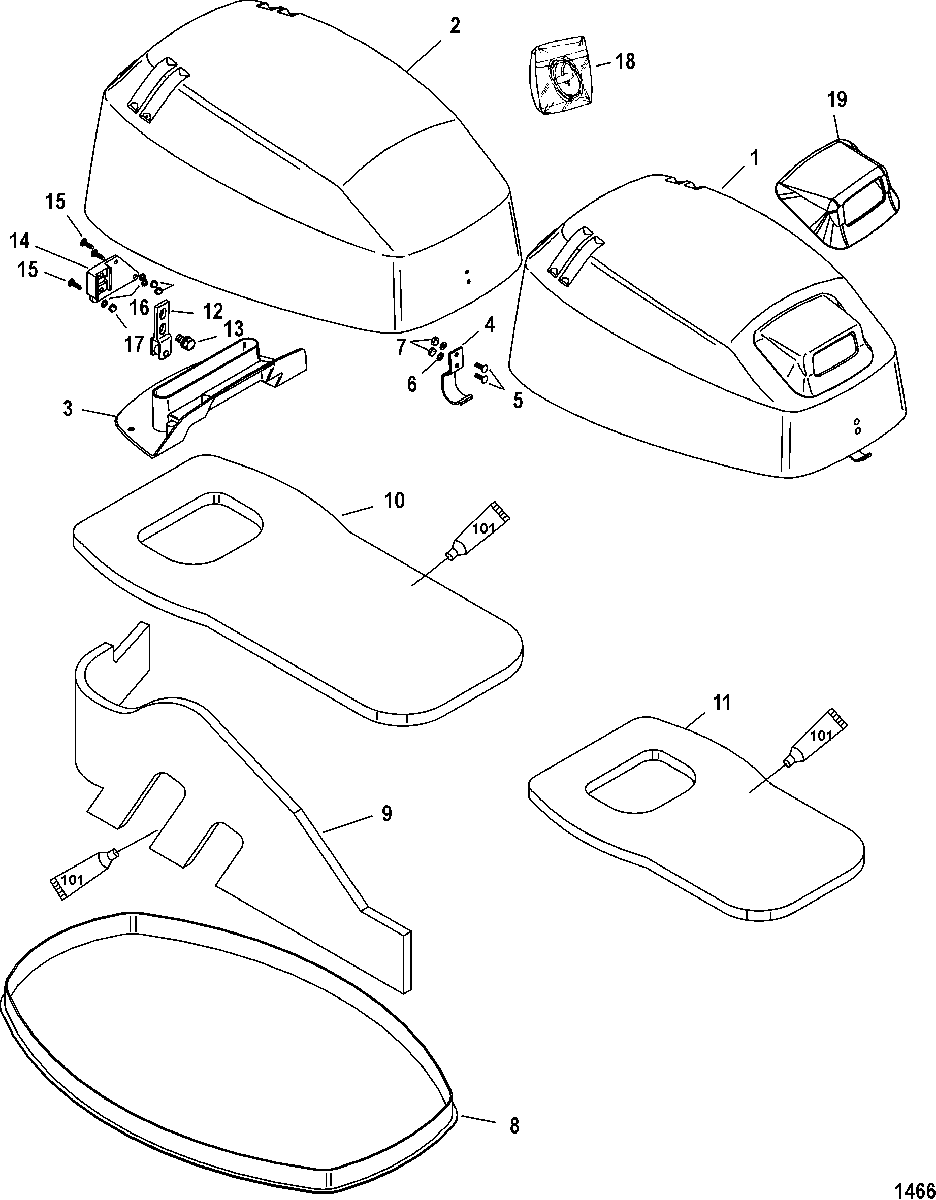

Top Cowl для Mariner - 30 Carb (3 CYL.)(4-STROKE) 0T409000 THRU 1B226999

  • №
    Артикул
    Название
  • 1
    102-834785T17 TOP COWL ASSEMBLY
    (MANUAL - BLACK)
    TOP COWL ASSEMBLY
    (MANUAL - BLACK)
  • 1
    102-834785T6 TOP COWL ASSEMBLY
    (MANUAL - SILVER)
    TOP COWL ASSEMBLY
    (MANUAL - SILVER)
  • 2
    102-834785T22 TOP COWL ASSEMBLY
    (ELECTRIC - BLACK)
    TOP COWL ASSEMBLY
    (ELECTRIC - BLACK)
  • 2
    102-834785T8 TOP COWL ASSEMBLY
    (ELECTRIC - SILVER)
    TOP COWL ASSEMBLY
    (ELECTRIC - SILVER)
  • 3
    NSS NOT SOLD SEPARATE, Induction Insert
    NOT SOLD SEPARATE, Induction Insert
  • 4
    826291F1 LATCH
    (BLACK)
    LATCH
    (BLACK)
  • 4
    826291F1 LATCH
    (SILVER)
    LATCH
    (SILVER)
  • 5
    10-8231871 SCREW, (M4 x 14.5)
    SCREW, (M4 x 14.5)
  • 6
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 7
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 8
    8M0043388 SEAL
    SEAL
  • 9
    834786A04 SOUND BLANKET KIT
    SOUND BLANKET KIT
  • 10
    NSS NOT SOLD SEPARATE, Sound Blanket-Top
    (ELECTRIC)
    NOT SOLD SEPARATE, Sound Blanket-Top
    (ELECTRIC)
  • 11
    NSS NOT SOLD SEPARATE, Sound Blanket-Top
    (MANUAL)
    NOT SOLD SEPARATE, Sound Blanket-Top
    (MANUAL)
  • 12
    893763 BRACKET ASSEMBLY, Latch Roller
    BRACKET ASSEMBLY, Latch Roller
  • 13
    10-4006731 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 14
    8M0038412 BRACKET
    BRACKET
  • 15
    10-8231871 SCREW, (M4 x 14.5)
    SCREW, (M4 x 14.5)
  • 16
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 17
    11-8237515 NUT, (M4)
    NUT, (M4)
  • 18
    47341A11 ROPE AND HANDLE KIT, Manual Starting
    ROPE AND HANDLE KIT, Manual Starting
  • 19
    854318 INSERT, Cowl
    (MANUAL)
    INSERT, Cowl
    (MANUAL)
