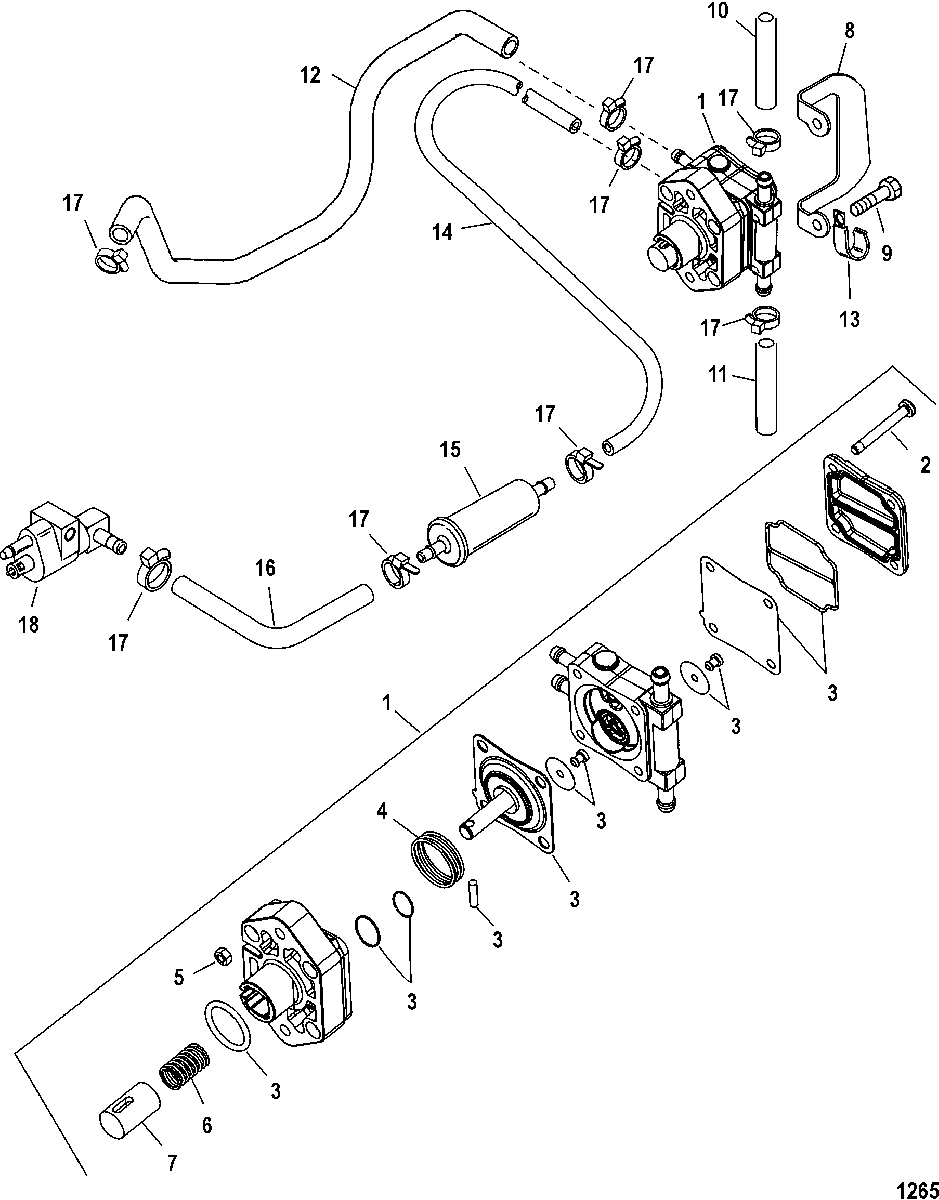

Fuel Pump для Mariner - 30 Carb (3 CYL.)(4-STROKE) 0P153500 THRU 0P400999

  • №
    Артикул
    Название
  • 1
    8M0141844 PUMP, Fuel
    SN# 0T939654 & Below
    PUMP, Fuel
    SN# 0T939654 & Below
  • 1
    8M0141844 PUMP, Fuel
    SN# 0P301503 & Below
    PUMP, Fuel
    SN# 0P301503 & Below
  • 1
    8M0141844 PUMP, Fuel
    SN# 0T939655 THRU 1B033613
    PUMP, Fuel
    SN# 0T939655 THRU 1B033613
  • 1
    8M0141844 PUMP, Fuel
    SN# 0P301504 & Up
    PUMP, Fuel
    SN# 0P301504 & Up
  • 1
    8M0141844 PUMP, Fuel
    (Sold Complete Only) SN# 1B036614 & Up
    PUMP, Fuel
    (Sold Complete Only) SN# 1B036614 & Up
  • 2
    10-883517 SCREW
    SN# 1B036613 & Below
    SCREW
    SN# 1B036613 & Below
  • 3
    883520A1 DIAPHRAGM KIT
    SN# 1B036613 & Below
    DIAPHRAGM KIT
    SN# 1B036613 & Below
  • 4
    24-8835181 SPRING
    SN# 1B036613 & Below
    SPRING
    SN# 1B036613 & Below
  • 5
    11-883519 NUT
    SN# 1B036613 & Below
    NUT
    SN# 1B036613 & Below
  • 6
    24-883518A03 SPRING
    SN# 0T939654 & Below
    SPRING
    SN# 0T939654 & Below
  • 6
    24-883518A03 SPRING
    SN# 0P301503 & Below
    SPRING
    SN# 0P301503 & Below
  • 6
    24-883518A03 SPRING
    SN# 0T939655 THRU 1B036613
    SPRING
    SN# 0T939655 THRU 1B036613
  • 6
    24-883518A03 SPRING
    SN# 0P301504 & Up
    SPRING
    SN# 0P301504 & Up
  • 7
    NSS NOT SOLD SEPARATE, Cap
    SN# 1B036613 & Below
    NOT SOLD SEPARATE, Cap
    SN# 1B036613 & Below
  • 8
    8M0007776 DEFLECTOR, Cowl
    DEFLECTOR, Cowl
  • 9
    10-82684430 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 10
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 13 Inches) To Block Exhaust Cover
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 13 Inches) To Block Exhaust Cover
  • 11
    32-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches) To Telltale
    TUBING, (.312) (70.00 Inches Bulk) (Cut to 6 Inches) To Telltale
  • 12
    32-856611 HOSE and SLEEVE, To Float Bowl
    HOSE and SLEEVE, To Float Bowl
  • 13
    54-55098 J CLIP
    J CLIP
  • 14
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 14 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 14 Inches)
  • 15
    35-877565T1 FILTER, Fuel
    FILTER, Fuel
  • 16
    32-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 19 Inches)
    HOSE, (57.00 Inches Bulk) (Cut to 19 Inches)
  • 17
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 18
    22-816856A4 CONNECTOR ASSEMBLY, Fuel
    CONNECTOR ASSEMBLY, Fuel
  • -
    25-16524 O-RING, Fuel Connector
    O-RING, Fuel Connector
